ZXDU58 W121 V4.0R01M08 For Communications Equipment

ZXDU58 W121 V4.0R01M08 For Communications Equipment
ZXDU58 W121 V4.0R01M08 For Communications Equipment ZXDU58 W121 V4.0R01M08 For Communications Equipment ZXDU58 W121 V4.0R01M08 For Communications Equipment

Large Image :  ZXDU58 W121 V4.0R01M08 For Communications Equipment

Product Details:
Place of Origin: China
Brand Name: ZTE
Certification: CE, RoHS
Model Number: ZXDU58 W121
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: carton box
Delivery Time: within 10 days of payment
Payment Terms: L/C, T/T
Supply Ability: 1000 sets/month
Detailed Product Description
Output Voltage: -53.5 V DC Phase Voltage: 220 V - 240 V
Line Vlotage: 380 V - 415 V Input Frequency: 50 Hz / 60 Hz
AC Input: Three-phase Five-wire Rectifier: Four ZXD1500 Rectifiers
High Light:

ZXDU58 W121

,

V4.0R01M08

ZXDU58 W121 V4.0R01M08 ZTE Outdoor DC Power System For Communications Equipment



System introduction



The ZXDU58 W121 system is an outdoor DC power. It provides -53.5 V DC power for communications equipment.
AC input mode: Three-phase five-wire (L1/L2/L3/N/PE), 220 V - 240 V (phase voltage) / 380 V - 415 V (line voltage), 50 Hz / 60 Hz.
In full configuration, the ZXDU58 W121 system is equipped with four ZXD1500 rectifiers, which form a rated output current of 120 A.

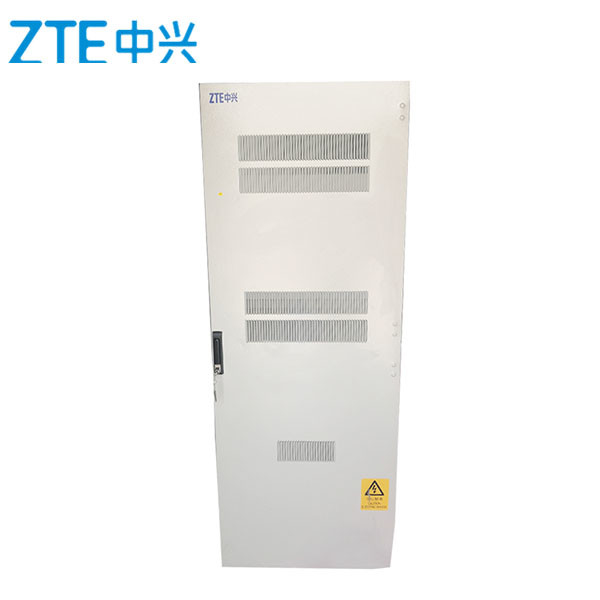

For the ZXDU58 W121 system appearance, see Figure 1-1.



ZXDU58 W121 (V4.0R01M08) DC Power System3



System features



The ZXDU58 W121 system has the following features:
*A wide range of input phase voltage (80 VAC - 300 VAC) makes the system suitable for areas with unstable voltage.
*Integrating the power distribution, rectifiers, CSU and batteries in a single cabinet, and thus saving installation space.
*The rectifier is hot-pluggable, and convenient for installation and maintenance.
*Intelligent CSU.
*With heat exchanger and Thermoelectric Cooler (TEC) for heat dissipation.
*High reliability with Mean Time Between Failures (MTBF) ≥ 2.2 × 105 h.
*Multiple networking interfaces: input relays, output relays, RS232 interfaces, and RS485 interface.



ZXDU58 W121 (V4.0R01M08) DC Power System4



Item Description
Cabinet dimensions (H × W × D) Without thermoelectric cooler: 2200 mm × 700 mm × 700 mm
With thermoelectric cooler: 2200 mm × 700 mm × 850 mm
Communications equipment space 19 inches in width, 14U in height (1U = 44.45 mm)
Battery space (H × W × D) Two battery racks
Each rack provides a net installation space of 335 mm × 537 mm × 552 mm.
Dimension of the floor-mounting holes 8–Ø16 mm



Internal Structure


The internal space of the ZXDU58 W121 cabinet is divided into the equipment space and the battery space.
For the internal structure, see
For a description of the components, refer to Figure 2-2.



ZXDU58 W121 (V4.0R01M08) DC Power System5



1. Heat exchanger
2. Thermoelectric cooler
3. Heater for battery space (optional)
4. Battery space
5. Power supply chassis
6. Signal Interface Board (SIB)

7. Communications equipment space
8. Ventilation subrack
9. Emergency light (optional)
10. Smoke sensor (optional)
11. Fan control board (FCTL)
12. PE busbar
13. Relay board (RLY)

14. Environment Monitoring Board (EMB)
15. Heater for equipment space (optional)
16. Internal cabling holes
17. External cabling holes
18. Door sensor
19. GND terminals



Table 2-2 Component Description



S.N. Component Description
1 Heat exchanger For heat dissipation of the equipment space
2 Thermoelectric cooler For heat dissipation of the battery space
3 Heater for battery space Optional, to heat the battery space if needed
4 Battery space Two battery racks. Each rack provides a net installation space of 335 mm × 537 mm × 552 mm (H × W × D)



S.N. Component Description
5 Power supply chassis Provides power input/output distribution and converts AC to DC
For the further details, refer to 2.3 Power Supply Chassis.
6 Signal Interface Board (SIB) Provides background communication interfaces and supervision interfaces
For the further details, refer to 2.6.1 Interface of SIB Board.
7 Communications equipment space Installs the communications equipment. 19 inches in width, and 14 U in height
8 Ventilation subrack For internal air circulation of the equipment space
9 Emergency light Optional, for emergency lighting
10 Smoke sensor Optional, for smoke detection
11 Fan control board (FCTL) Controls the operation of the fans in the heat exchanger and the ventilation subrack
12 PE busbar -
13 Relay board (RLY) Provides eight output relaysFor the further details, refer to 2.6.2 Interface of RLY Board.
14 Environment Monitoring Board (EMB) Provides environment monitoring interfacesFor the further details, refer to 2.6.3 Interface of EMB Board.
15 Heater for equipment space OptionalHeats the power & communications equipment space if needed
16 Internal cabling holes -
17 External cabling holes -
18 Door sensor For door status detection
19 GND terminals -


Power Supply Chassis


The power supply chassis provides power input/output distribution and converts AC to DC. For the layout of the components of the power supply chassis.



ZXDU58 W121 (V4.0R01M08) DC Power System6

1. AC input circuit breaker
2. AC auxiliary output circuit breaker
3. AC SPD
4. DC output circuit breakers ( LLVD1)
5. DC output circuit breakers (LLVD2)

6. Battery input circuit breakers
7. DC Surge Protection Device (DC SPD)
8. Centralized Supervision Unit (CSU)
9. ZXD1500 rectifiers



For the internal structure of the power input/output distribution part



ZXDU58 W121 (V4.0R01M08) DC Power System7



For a description of the components



S.N. Component Description
1 AC input circuit breaker Activates/deactivates AC input branch
2 AC auxiliary output circuit breaker Activates/deactivates AC auxiliary input branch Reserved for the heaters for the equipment space and the battery space
3 AC SPD Provides AC input surge protection
4 DC output circuit breakers ( LLVD1) Activate/deactivate DC output (LLVD1) branches
5 DC output circuit breakers (LLVD2) Activate/deactivate DC output (LLVD2) branches
6 Battery input circuit breakers Activate/deactivate battery input branches
7 DC Surge Protection Device (DC SPD) Provides DC output surge protection
8 Centralized Supervision Unit (CSU) Monitors the ZXDU58 W121 system
9 ZXD1500 rectifiers Convert AC to DC

2.2 ZXD1500 (V4.0) Rectifier
The ZXD1500 (V4.0) rectifiers convert AC to DC, provide power to the loads and charge the batteries.
Rectifier Appearance


For the appearance of a ZXD1500 (V4.0) rectifier, see Figure 2-5.



ZXDU58 W121 (V4.0R01M08) DC Power System8

1. Indicators
2. Grille

3. Handle
4. Stop pin

5. Input/output integrated socket



Indicator Label Status and Color Meaning
IN(Input ) Lit (green) AC input power is normal.
OUT(Output) Lit (green) DC output power is normal.
CL(Current limit) Lit (yellow) Output current of the rectifier has reached its limit.
ALM(Alarm) Lit (red) An alarm has occurred.



ZXDU58 W121 (V4.0R01M08) DC Power System9



Centralized Supervision Unit


The Centralized Supervision Unit (CSU) manages the power distribution unit, rectifiers and batteries of the ZXDU58 W121 system.

Functions
Collects the operational data and monitors the operation of the system.
Provides alarm and necessary protection if the system is operating abnormally.
Sends data to the background Supervision Center (SC) and receives the commands from the SC. In this way, the system can be monitored remotely.



ZXDU58 W121 (V4.0R01M08) DC Power System10

1. Liquid Crystal Display (LCD)
2. Screen
3. Indicators

4. Reset button
5. Buttons
6. Handle
7. Power switch

8. Fastening screw
9. (Rear) Interface



Indicators


The indicators indicate the current operational status of the CSU. For a description of the CSU indicators.



Indicator Label Status and Color Meaning
PWR Power Lit (green) Power is applied to the CSU.
RUN Run Flashing (green) CSU is operating normally.
EQU Charge equalization Lit (green) Battery equalized charge is in-process.
COMM Communication Flashing (yellow) CSU is communicating with the connected PC.
ALM Alarm Flashing (red) An alarm or fault has occurred.



Buttons


The reset button is used to restart the CSU.
Users can perform querying and setting operations through the buttons laid on the front panel of the CSU.
For the function description of the buttons



Indicator Label Status and Color
Turns pages (or items) upwards / increases values
Turns pages (or items) downwards / decreases values
Esc Exits and returns to the upper-level interface
Indicator Label Status and Color
Enter Confirms the current menu items/saves the current parameter setting/enters the lower-lever interface
▲ + Enter Displays help information
