|Working Tem:||-40~+75℃||Form Factor:||Rack Mount|
|Capacity:||600A (33 KW)||AC Input Voltage:||80.0 To 300.0 Volts|
|Applications:||Telecommunications||Type:||Computer Power Supply|
ZTE Corporation DC Power Systems

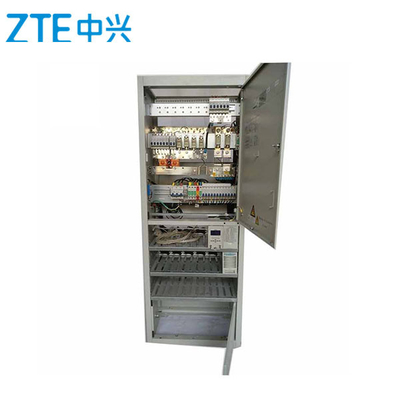

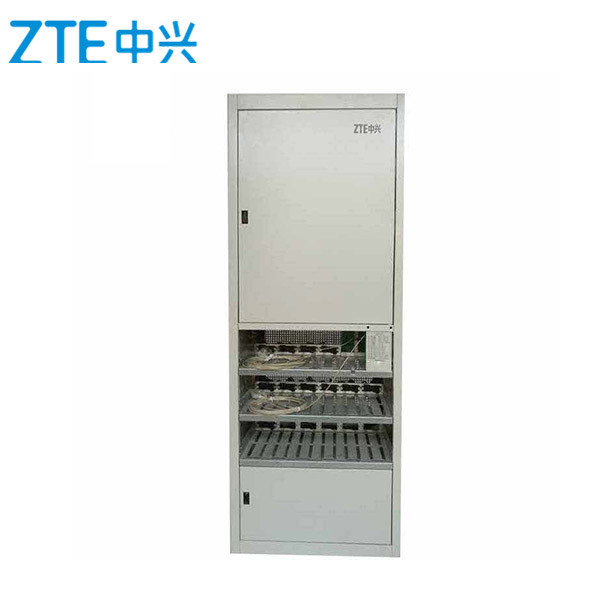

ZTE ZXDU68 T601 Communication DC High Efficiency -48V Combined Power System
Zxdu68 T601 is a high efficiency – 48V combined power supply system with standard configuration and maximum output of 600A. The system has the characteristics of intelligent and green energy saving, including more abundant external interfaces: input and output dry contact, RJ45, RS232, RS485, USB, which can be flexibly organized according to the site environment. The rectifier with peak efficiency of 96.3% is adopted in the system, which can save energy and reduce CO2 emission more than traditional power supply.
High power density, saving space and rent.
Wide input voltage range, 85 ~ 295vac, stronger adaptability of power grid, reducing the use of battery and improving the service life of battery.
Wide temperature adaptability, - 40 ~ + 75 ℃, stronger field adaptability, saving cost of temperature control equipment.
High efficiency rectifier is adopted, saving 4% ~ 10% electric energy compared with traditional power supply.
Automatic sleep / wake-up function of rectifier, the power consumption of rectifier in sleep is not more than 4W, saving energy consumption.
The convenient "one key query" function can quickly query the real-time operation information and fault information of rectifier in the monitoring unit.
Digital design, rich network interface, more flexible system specification networking mode, input and output dry contact, RJ45, RS232, RS485, can meet Telnet, HTTP, FTP and SNMP networking, saving networking cost.
USB interface function can expand the storage capacity of monitoring infinitely, or input the site opening information through USB to realize fast opening.
The standard capacity of ZXDU68 T601 is 600A (33 kW), which can be extended to 105 KW for one cabinet according to customer requirements.
This system is smart and green with diversified types of interfaces, including input/output dry contracts, RJ45, RS232, RS485 interfaces, so you can perform flexible networking as per application scenarios.
The peak efficiency of the system is up to 96%, which saves more electricity than traditional DC power systems.
The power density is higher. The depth of the cabinet is only 400 mm and the front access design further reduces area occupation.
The monitoring unit of the system adopts a color screen with better visual effects and user-friendly multi-screen design to ease the operation.
Deploy with high efficiency rectifiers, which will save up to 10% electricity
400 mm deep with front access design, which can save the occupied space up to 50%.
-40~+70℃ working temperature range, saving temperature control system power consumption
80~300Vac input voltage range, strong grid adaptability and prolong battery lifespan
Rich network interface such as dry contact, RJ45, RS232, RS485 and fast parameters setting through USB port
|Product Category||DC Power Systems|
|Type||Computer Power Supply|
|Form Factor||Rack Mount|
|AC Input Voltage||80.0 to 300.0 volts|
