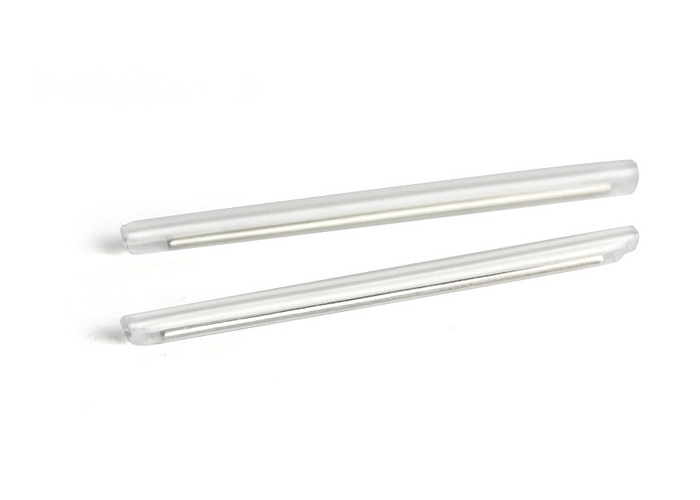

Teflon Treated Polyolefin Shrink Tube Fusion Splice Protection Sleeve Polished

Teflon Treated Polyolefin Shrink Tube Fusion Splice Protection Sleeve Polished
Teflon Treated Polyolefin Shrink Tube Fusion Splice Protection Sleeve Polished Teflon Treated Polyolefin Shrink Tube Fusion Splice Protection Sleeve Polished Teflon Treated Polyolefin Shrink Tube Fusion Splice Protection Sleeve Polished Teflon Treated Polyolefin Shrink Tube Fusion Splice Protection Sleeve Polished

Large Image :  Teflon Treated Polyolefin Shrink Tube Fusion Splice Protection Sleeve Polished

Product Details:
Place of Origin: China
Brand Name: Unique-Tel
Certification: CCC CE
Model Number: Sleeve
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiation
Packaging Details: 100 pcs per bag,50 bags per carton
Delivery Time: 1 week
Payment Terms: L/C, T/T
Supply Ability: 100000 pcs per week
Detailed Product Description
Name: Fusion Splice Protection Sleeve Material: Teflon Treated Polyolefin Tube
Support: Stainless Steel Rod Length: 25-60mm
Outer Tube: 2.3-4.8mm Inner Tube: 0.4-1.6mm
High Light:

fiber optic cable accessories

,

ftth accessories

Fiber Optic Fusion Splice Protection Sleeve Teflon Treated Polyolefin Tube



Introduction



The most popular method of protecting a fusion splice is the utilization of two heat sensitive tubes supported by a stainless steel rod. The protection sleeve contains a custom inner tube made of polyolifin, which melts around the fiber to provide both moisture and cushion protection. The Teflon-treated inner tube allows easy fiber entry. The sleeve shrinks to a size that allows insertion into most fusion splice trays. This is a proven shrink tube design used in thousands of telco and communication applications



Main Feature



  • Reinforces and protects fiber optic splice
  • Polished stainless steel rod
  • inner tube provides moisture and cushion protection
  • Teflon-coated inner tube
  • Clear sleeve for easy inspection and minimizing damage during installation
  • One piece design with hot fusion insert for sealing against moisture and other contaminants
  • Different colors of hot fusion insert for labeling and identification



Specification



Length
(mm)
Steel Rod
(mm)
Outer Tube
(mm)
Inner Tube
(mm)
Operating
Temperature
Final Shrink Diameter
(mm)
60 1.6 4.8 1.6 105oC 3.0
40 1.6 4.1 1.3 105oC 3.0
60 1.0 4.1 1.6 105oC 2.5
40 1.0 3.8 1.0 105oC 2.5
40 0.78 2.0 0.4 105oC 1.5
25 0.78 2.0 0.4 105oC 1.5
40 0.63 2.3 1.0 105oC 2.0
25 0.63 2.3 1.0 105oC 2.0



Pictures



Teflon Treated Polyolefin Shrink Tube Fusion Splice Protection Sleeve Polished 0
