Management Card Optic Transceiver 12VDC Fiber Cable Accessories

Management Card Optic Transceiver 12VDC Fiber Cable Accessories
Management Card Optic Transceiver 12VDC Fiber Cable Accessories

Large Image :  Management Card Optic Transceiver 12VDC Fiber Cable Accessories

Product Details:
Place of Origin: Hubei, China
Brand Name: Unique-Tel
Certification: CE, RoHS
Model Number: TC100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: carton packaging
Delivery Time: 5 work days
Payment Terms: T/T, L/C
Supply Ability: 10000 Pieces/Month
Detailed Product Description
Weight: 80g Input Voltage: 12VDC
Warranty: 5 Years Certification: CE, FCC, RoHS
Installation: Slide-in Mounting Power: Full-load: 1.51W@12VDC
High Light:

2 100M fiber optic media converter

,

10Base-T media converter single mode

2-port 100M Industrial Media Converter Management Card



Features



Support 2 100M copper ports

Input voltage: 12VDC

Support -30~60℃ wide temperature range operation



Specifications



Standard

&

Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX

IEEE 802.3x for Flow Control

Management Console/Telnet/WEB Management, SNMP v1/v2c Centralized Management of Equipment
Security Power Supply Alarm, Port Alarm, E-mail Alarm
Time Management SNTP
Interface

Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning

Console port: CLI command line management port(RS-232), RJ45

LED Indicator RUN indicator, Console port indicator, port indicator UP/DOWN
Switch Property

Transmission mode: store and forward

Switch time delay:<10μs

Power Requirement Input voltage: 12VDC

Power

Consumption

No-load: 1.00W@12VDC

Full-load: 1.51W@12VDC

Environmental

Limit

Operating temperature range: -30~60℃

Storage temperature range: -30~60℃

Relative humidity: 5%~95% (no condensation)

Physical Characteristic

Installation: slide-in mounting

Weight: 80g

Dimension (W x H x D): 84.5mm×20.0mm×122.5mm

Certification CE, FCC, RoHS
Warranty 5 years



Description



100M industrial media converter management card, which could be used with RACK2100 rackmount chassis, IMC101M-F and ECU101M-1F. It provides multiple interfaces like copper port and Console etc., and adopts slide-in mounting which is easy and convenient for installation and use.



The product adopts industrial grade design and support IEEE802.3/802.3u/802.3x store-and-forward mode and management standards of WEB, Telnet, SNMP and Console port etc. The copper ports support 10/100M self-adaption.



The hardware adopts fanless, low power consumption and wide temperature and voltage design, which has passed rigorous industrial standard tests, and suits for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.

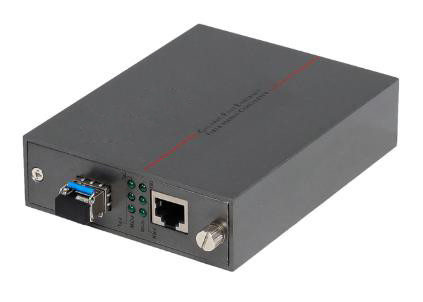

Management Card Optic Transceiver 12VDC Fiber Cable Accessories 0
