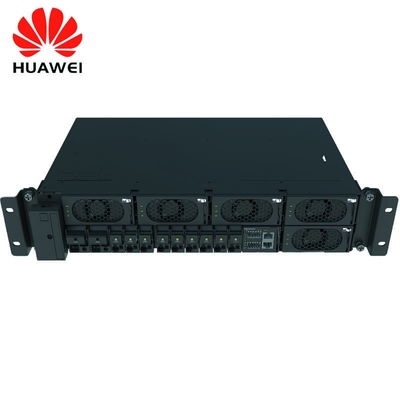

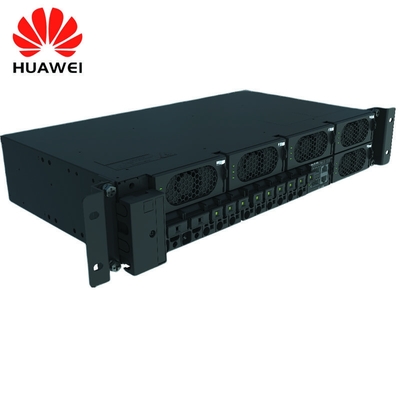

ETP48200-B2A1 AC DC Embedded 200A 10KW Huawei Power Supply

ETP48200-B2A1 AC DC Embedded 200A 10KW Huawei Power Supply
ETP48200-B2A1 AC DC Embedded 200A 10KW Huawei Power Supply ETP48200-B2A1 AC DC Embedded 200A 10KW Huawei Power Supply

Large Image :  ETP48200-B2A1 AC DC Embedded 200A 10KW Huawei Power Supply

Product Details:
Place of Origin: China
Brand Name: HUAWEI
Certification: CE, RoHS
Model Number: ETP48200-B2A1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: carton box
Delivery Time: within 10 days of payment
Payment Terms: L/C, T/T
Supply Ability: 1000 sets/month
Detailed Product Description
Max Capacity: 10kW Altitude: ~4000 M
Battery Empty: ×100 A/1P Routeing: Move Forward
Weight: ≤10kg( No Rectifier) Load Down: ×80 A/1P,4×63 A/1P,2×40 A/1P
High Light:

ETP48200-B2A1

,

200a huawei power supply

Huawei high efficiency AC to DC embedded 19inch power system 200A 10KW 98% rectifiers R4815 R4830 rectifier



Introduction



ETP48200-B2A1 embedded DC power supply system, realize AC input conversion to stable 48 V DC output, support 2 kW rectifier module, maximum output power 10 kW..

Each functional unit adopts standardized size design, supports hot plug, system height 2 U, supports standard 19 inch rack or embedded cabinet and other installation methods. The system can adapt to wide range of AC input, with intelligent battery management, remote

monitoring and other functions.



Characteristics



1 85~300 V AC UWB AC voltage input range

2 Support HVDC input 100~420 V DC

3 Support air heating plug-in, flexible distribution

4 Support power module hot plug, easy installation and maintenance

5 Standard installation structure design with strong versatility

6 Compact power supply, save space, save installation cost

7 Efficient rectifier module efficiency over 96%, energy saving and emission reduction

8 Perfect module dormancy function, further improve system efficiency

9 Intelligent battery management and battery protection to extend battery life

10 Support environment monitoring, can be through dry contact, serial port



Applications



Access network

Transmission network

Enterprise Communications Network



Parameters



Product
Type
ETP48200-B2A1
Syst em Dimensions (width × depth × height) ×255 mm ×86.1 mm)
Weight ≤10 kg( no rectifier module)
Temperature Control Mode Natural heat dissipation
Installation mode Installation of 19 inch rack or embedded cabinet
Routeing Move forward
Maintenance mode Pre-maintenance
Protection level IP20
AC Distribution Input format 220/380 V AC three phase, compatible with 220 V AC single phase,110V AC Double Fire Line HVDC( HVDC)

Input voltage 85~300 V AC, rated voltage :220 V AC 100V DC ~420 V DC, rated voltage: 200~380 V DC
Frequency 45~66 Hz, rated frequency :50/60 Hz /
Input empty open -
AC output -
DC Distribution Output voltage Voltage rating ~42~58 V DC,:53.5 V DC
Maximum capacity kW 10
Battery empty ×100 A/1P
Load down ×80 A/1P,4×63 A/1P,2×40 A/1P
Battery down -
Rectifier module Type R4815G1 R4830G1
Rated power 1000W (176~300 V AC) 2000W (176~300 V AC)
Dimensions (width × depth × height) 95.5 mm ×208 mm ×40.8 mm
Efficiency >95%(25% to 100%With load)
>98%Maximum
>95%(25% to 100%With load)
>96%Maximum
Monitoring module Type SMU11C SMU11B
Communications
ports
RS485(Huawei master-slave agreement) FE (SNMP protocol)
Envi ronmen t Working temperature ‘-40℃~+65℃
(When used at 2000~4000 m altitude, the maximum operating temperature is
reduced by 1℃ per 200 m rise)
Storage temperature -40℃~+70℃
Relative humidity 5%~95%(no condensation)
Height ~4000 m
