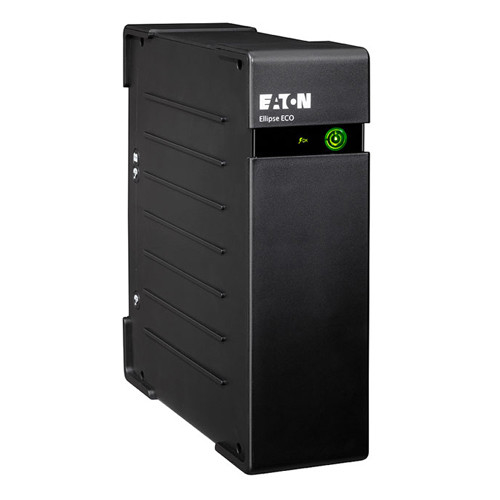

Eaton Ellipse Eco Series Tower Mounted UPS Power system With Builtin Battery

Eaton Ellipse Eco Series Tower Mounted UPS Power system With Builtin Battery
Eaton Ellipse Eco Series Tower Mounted UPS Power system With Builtin Battery Eaton Ellipse Eco Series Tower Mounted UPS Power system With Builtin Battery

Large Image :  Eaton Ellipse Eco Series Tower Mounted UPS Power system With Builtin Battery

Product Details:
Place of Origin: Hubei, China
Brand Name: Eaton
Certification: CE, RoHS
Model Number: ups system
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: carton & PVC packaging
Delivery Time: within 10 days of payment
Payment Terms: T/T, L/C
Supply Ability: 10000 Pieces/Month
Detailed Product Description
Weight: 2.9 Kg Size(H*W*D): 263 X 81 X 235 Mm
2 Years Warranty: Replacement Surge Protection: IEC 61643-1
Warranty Extension: Optional, 3 Year Warranty Battery Type: Replaceable Sealed Lead Acid Battery
High Light:

Eaton Ellipse Eco UPS Power System

,

IEC 61643-1 UPS Power System

,

230V Uninterruptible Power Supply System

Eaton Ellipse Eco Series Tower Mounted UPS with Built-in Battery



Technical specifications



Technical Specification 500 650 650 USB 800 USB 1200 USB 1600 USB
Rated Power (VA/W) 500 VA / 300 W 650 VA / 400 W 650 VA / 400 W 800 VA / 500 W 1200 VA / 750 W 1600 VA / 1000 W
Aplication
Qty of Socket 4 4 4 4 8 8
Socket with surge protection and backup power protection /Surge protected socket 3/1 3/1 3/1 3/1 4/4 4/4
Feature
Rated Input Voltage 230 V
Input Voltage 184 V - 264 V(adjustable 161 V - 284 V)
Output voltage 230 V(adjustable 220 V,230 V,240 V)
Frequency 50-60 Hz auto select
Input protection Resettable circuit breaker
Feature
Energy saving design yes yes yes yes yes yes
EcoControl function - - Energy save 20%*   Energy save 25%*
Automatically turn off idle device
Surge protection Confirm to IEC 61643-1
compatible PowerLine - - 1 pc of directly connect with PLC socket 1 pc of directly connect with PLC socket 1 pc of directly connect with PLC socket 1 pc of directly connect with PLC socket
Battery
Battery Type Replaceable sealed Lead acid battery
Automatic battery test Y Yes Yes Yes Yes Yes
Cold boot Yes Yes Yes Yes Yes Yes
Deep discharge protection 4 Hours 4 H 4 H 4 H 4 H 4H
Battery replacement index LED+ Sound alarm
Battery support time on 50% load 9 min 9 min 9 Min 11 Min 10 Min 11 Min
Battery support time on 70% load 5 min 6 Min 6 Min 6 min 6 Min 6 Min
Communication
Communication port - - USB port(offer cable) USB port(offer cable) USB port(offer cable) USB port(offer cable)
software - - Eaton smart power software(compatible:Windows,Mac OS X,Linux)
Circuit protection Tel / Fax / Modem / internet and Ethernet
Standard
Safe / EMC IEC 62040-1,IEC 60950-1,IEC 62040-2,CB,CE
Surge protection IEC 61643-1
Size and Weight
Size(H*W*D) 263 x 81 x 235 mm 263 x 81 x 235 mm 263 x 81 x 235 mm 263 x 81 x 235 mm 305 x 81 x 312 mm 305 x 81 x 312 mm
Weight 2.9 kg 3.6 kg 3.6 kg 4.1 kg 6.7 kg 7.8 kg
Customer service and support
2 years Warranty Replacement
Warranty extension Optional , 3 year warranty



Short Description:



• Provide efficient power protection for commercial computers

• adopt efficient electrical design with EcoControl function (USB model) in main. When the equipment is shut down, it can automatically disconnect the peripheral power supply, which is much less than the ordinary UPS 25% energy.

• Ellipse ECO not only provides backup power to the device to ensure that the device is in the event of a power failure. Normal operation can also effectively protect the equipment from the damage of destructive surges.

• Ellipse ECO has a built-in high-performance surge protection that conforms to IEC 61643-1. The device also protects data connections such as Ethernet, Internet, and telephone lines.



Easy to integrate and install



• Ellipse ECO comes with 4 (500/650/800 models) or 8 (1200/1600). IEC socket for convenient connection to typical computer configuration with peripherals. There are also Schuko (DIN) sockets or French (FR) type sockets available.

• Ellipse ECO is ultra-thin and easy to install, suitable for any office environment. Support a variety of installation locations, such as vertical installation, horizontal installation, installation under the desk, Mounted on a 19-inch rack (optional 2U kit) and wall mounted (optional) Accessories.

• The UBS model is compatible with many different types of computers.Standard Eaton power management. Software (provided with CD installation CD and USB cable), compatible with all major operations. Operating systems (Windows, Linux, and Mac OS).



Convenient maintenance



• Regular battery self-inspection to ensure early detection of battery replacement.

• Convenient battery replacement helps extend the life of UPS.

• Button breaker for easy recovery of overload or short circuit.




Eaton Ellipse Eco Series Tower Mounted UPS Power system With Builtin Battery 0
