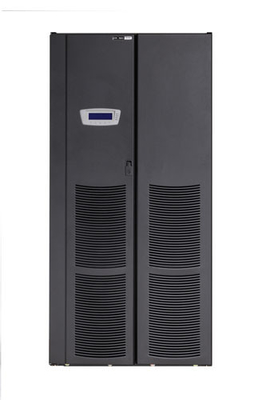

Eaton 9390 160KVA Uninterruptible Power Supply System

Eaton 9390 160KVA Uninterruptible Power Supply System
Eaton 9390 160KVA Uninterruptible Power Supply System Eaton 9390 160KVA Uninterruptible Power Supply System Eaton 9390 160KVA Uninterruptible Power Supply System Eaton 9390 160KVA Uninterruptible Power Supply System Eaton 9390 160KVA Uninterruptible Power Supply System Eaton 9390 160KVA Uninterruptible Power Supply System

Large Image :  Eaton 9390 160KVA Uninterruptible Power Supply System

Product Details:
Place of Origin: Hubei, China
Brand Name: Eaton
Certification: CE, RoHS
Model Number: ups system
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: carton & PVC packaging
Delivery Time: within 10 days of payment
Payment Terms: T/T, L/C
Supply Ability: 10000 Pieces/Month
Detailed Product Description
Frequency Range: 55-65 Hz Power Factor: 0.99 (min)
Battery Voltage: 384-480V Voltage Range: +10% / -15%3
Heat Dissipation: <48 BTU @ Full Load Voltage: 208, 380, 400, 415, 480, 6002
High Light:

160KVA Uninterruptible Power Supply System

,

Eaton 9390 Uninterruptible Power Supply System

,

208v ups power supply system

Eaton 9390 160KVA Energy Efficient UPS Uninterruptible Power Supply System



Technical Specifications



UPS RATING 0.9 POWER FACTOR
kVA 20 / 30 / 40 / 50 / 60 / 80 / 100 / 120 / 160
kW 18 / 27 / 36 / 45 / 54 / 72 / 90 / 108 / 144
Efficiency Up to 98% High-efficiency mode, Up to 92% Double-conversion
GENERAL
Efficiency Up to 94%>99% with Energy Saver System
Parallel capability 6x modules w/o tie cabinet; 8x with tie cabinet
Audible noise <65 dBA @ 1 meter
Altitude (max) 2000m at 40ºC , 104ºF
ELECTRICAL INPUT
Voltage 208, 380, 400, 415, 480, 6002
Voltage range +10% / -15%3
Frequency range 55-65 Hz
Power factor 0.99 (min)
Input current distortion <4.5% (no input filter required)
Soft start capability Yes
Internal backfeed protection Yes
Broadcast global support Yes
ELECTRICAL OUTPUT
Voltage 2084, 3804, 4004, 4154, 4804, 6005
Regulation ±1%
Inverter PWM with IGBT switching
Voltage THD <2% (100% linear load); <5% (non-linear load)
Load power factor range Down to 0.9pf leading without de-rating
Heat dissipation (BTU/Hr x 1000/Hr)

80 kVA, 208V: 23.6

160 kVA, 208V: 47.3

80 kVA, 380-480V: 21.9

160 kVA, 380-480V: 43.8

BATTERY
Battery types VRLA, AGM, Gel, Wet, Eaton batteries also available
Battery voltage 384-480V
Temperature compensation Optional
Charging method Advanced battery management
Heat dissipation <48 BTU @ full load
DIMENSIONS AND WEIGHTS
40-80 kVA modules HxWxD: 73.7 x 18.9 x 31.6 in./1872 x 480 x 803 mm; 640 lb./290 kg (208V); 568 lb./258 kg (480V)
100-160 kVA modules

HxWxD: 73.7 x 35.6 x 31.6 in./1872 x 904 x 803 mm;

1,060 lb./481 kg (208V, 480V)

CERTIFICATION
Safety UL1778, cUL
EMC IEC62040-2 EN50091 Class A (restricted access)
Surge ANSI C62, 41 Cat, A&B
OPTIONAL ACCESORIES

Module tie cabinet.

External maintenance bypass.

Integrated distribution cabinet.

Isolation transformer.

1. Due to continuous product improvements, program specifications are subject to change without notice.



Industries & Applications



Designed for midsize datacenters, medical equipment facilities, and other mission-critical applications requiring a high quality power backup system, typical applications include but are not limited to:

Medium-to-larger data centers

Hospital applications such as MRI, CT, or PET scanning equipment

Financial Institutions

Industrial applications

Pharmacological manufacturing



Features & Benefits Of EATON 9390 Uninterruptible Power Supply System (UPS)



Proprietary Energy Saver System delivers 99 percent efficiency without sacrificing reliability

Optimum generator sizing, PFC power supply compatibility, and low THD enhances compatibility with upstream systems for stronger power performance

Powerware Hot Sync paralleling, superior battery management, and inherent redundancy ensure highest levels of reliability

Scalable architecture can adapt to future increased power requirements

Superior control and connectivity for robust manageability

Fully compatible with the Intelligent Power Software Suite, which offers free monitoring, management, and shutdown software to protect both physical and virtual machinery
