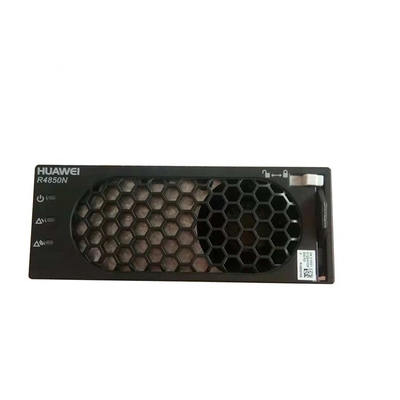

Communication Base Station Telecom Power Supply Unit HUAWEI R4850N6

Communication Base Station Telecom Power Supply Unit HUAWEI R4850N6
Communication Base Station Telecom Power Supply Unit HUAWEI R4850N6 Communication Base Station Telecom Power Supply Unit HUAWEI R4850N6 Communication Base Station Telecom Power Supply Unit HUAWEI R4850N6 Communication Base Station Telecom Power Supply Unit HUAWEI R4850N6

Large Image :  Communication Base Station Telecom Power Supply Unit HUAWEI R4850N6

Product Details:
Place of Origin: China
Brand Name: HUAWEI
Certification: CE, RoHS
Model Number: R4850N6
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: carton box
Delivery Time: within 10 days of payment
Payment Terms: L/C, T/T
Supply Ability: 1000 sets/month
Detailed Product Description
Brand Name: HUAWEI Power Factor: >92%
Model Number: R4850N6 Working Temperature: -40℃~75℃
Input: ~100-240V; 50/60Hz; 17A Output: DC 53.5V; 25.2-56.1A
High Light:

telecommunication network equipment

,

network communication equipment

Communication Base Station Telecom Power Supply Unit HUAWEI R4850N6



Overview



In response to the rapid development of the communication industry and site modernization, Huawei launched a series of simple, efficient, and intelligent power systems that integrate digital and big data technologies. Multiple models of embedded power products provide 30–400 A DC outputs and use rectifiers with an efficiency of up to 98%, and are highly applicable. The integrated field supervision unit (FSU) implements precise site management and intelligent control, including intelligent battery management and remote environment management.



Features



Intelligent monitoring, energy conservation and space-saving embedded power system

Supports a wide range of DC output from 120A to 400A

High rectifier efficiency up to 98% helps to save energy (derated output above 55°C)

Rectifier with MTBF > 500,000h helps to save OPEX

E-label function, achieving assets management of the whole site, easy for management of assets and location of quality issues

Battery anti-reversed connection function, avoids the possibility of equipment loss and personal accidents

Complete system management function, LCD visualization monitoring

Supporting multiple interfaces, convenient remote centralized management



Specifications



Item ETP48200-C5B4 ETP48400-C9A2
Dimensions (W x D x H) 482.6 mm x 330 mm x 222.5 mm 482.6 mm x 330 mm x 400.5 mm
Weight ≤ 20 kg (excluding rectifiers) ≤ 30 kg (without rectifiers)
AC Input Mode 220/380V three-phase; 220V single-phase 220/380V three-phase
AC Input Frequency 45 Hz to 66 Hz 45 Hz to 66 Hz
AC Input Distribution 1 x 63A/3P MCB 1 x 100A/3P MCB
AC Output Distribution NA 1 x 63A/3P, 3 x 32A/1P
Output Voltage Range -42V to -58V (expandable) -42V DC to -58V DC
Maximum Power Output 12 kW 24 kW
DC Output Distribution LLVD: 2 x 80A/1P, 3 x 32A/1P;BLVD: 1 x 63A/1P, 3 x 32A/1P, 1 x 16A/1P;Battery branches: 2 x 125A (fuse); LLVD: 2 x 80A/1P, 2 x 63A/1P, 6 x 32A/1P;BLVD: 2 x 63A/1P, 2 x 32A/1P, 2 x 16A/1P;Battery branches: 4 x 125A/1P
Operating Temperature -40°C to 65°C -40°C to 65°C
Altitude Zero to 4,000m (1ºC per 200m temperature derating from 3,000m to 4,000m) Zero to 4,000m (1ºC per 200m temperature derating from 3,000m to 4,000m)



Product Description



Huawei R4850N6 DC Rectifier Module Telecom Power Supply Unit

With advantage of features like compact size, easy to install, compatible with battery rack stacking and standard open rack, excellent function of BMS, intelligence dormancy and remote management, etc.



Product Huawei Power Supply Module
Model R4850N6
AC input ~100-240V; 50-60Hz; 17A
DC output 53.5V
DC Output 25.2-56.1A
Function With advantage of features like compact size, easy to install, compatible with battery rack stacking and standard open rack, excellent function of BMS, intelligence dormancy and remote management, etc.



Brief Specifications



Brand Name HUAWEI
Model Number R4850N6
Input ~100-240V; 50/60Hz; 17A
Output DC 53.5V; 25.2-56.1A
Power factor >92%
Working temperature : -40℃~75℃



Communication Base Station Telecom Power Supply Unit HUAWEI R4850N6 0

Communication Base Station Telecom Power Supply Unit HUAWEI R4850N6 1
