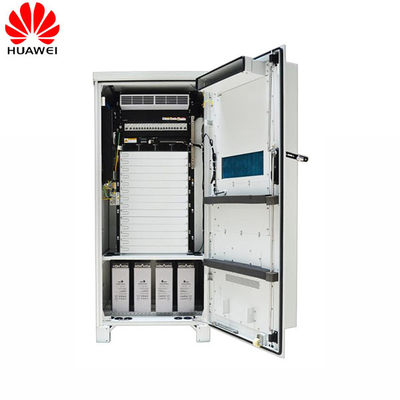

AC / DC Outdoor Huawei Power System Cabinet TP48200A-HD15B1 Wireless Site

AC / DC Outdoor Huawei Power System Cabinet TP48200A-HD15B1 Wireless Site
AC / DC Outdoor Huawei Power System Cabinet TP48200A-HD15B1 Wireless Site

Large Image :  AC / DC Outdoor Huawei Power System Cabinet TP48200A-HD15B1 Wireless Site

Product Details:
Place of Origin: China
Brand Name: HUAWEI
Certification: CE, RoHS
Model Number: TP48200A-HD15B1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: carton box
Delivery Time: within 10 days of payment
Payment Terms: L/C, T/T
Supply Ability: 1000 sets/month
Detailed Product Description
Battery Space: 1×180Ah Installation: Ground Installation
Weight: ≤100kg (without Rectifier) Dimension: 700(W)×700(D)×1600mm(H)
Cabling Mode: Bottom Inlet And Bottom Outlet Cooling: Heat Exchange+ Direct Ventilation
High Light:

TP48200A-HD15B1

,

1×180Ah huawei power system

Huawei AC/DC Outdoor Power System Cabinet TP48200A-HD15B1 Wireless Site



Features



* High corrosion-proofing protection: Aluminous cabinet with sandwich structure
* High waterproof and dustproof protection:IP55
* Strong anti-theft structure: door embedded without any expose bolt
* High power efficiency of rectifier >96% with patent technology, saving energy
* Cooling system equipped in door, easier to maintain
* E-label function easy for assets management and maintenance
* Intelligent battery dormancy prolonging battery lifespan
* Battery reverse polarity protection



Scenarios



Outdoor wireless site
Outdoor enterprise communication network



Specifications



Product Type TP48200A-HD15B1
System Dimension 700mm(W)×700mm(D)×1600mm(H)
Weight ≤100kg (without rectifier modules)
Cooling mode Heat exchange (850W)+ direct ventilation
Installation mode Ground installation
Cabling mode Bottom inlet and bottom outlet
Maintenance mode Front
Noise level Comply with ETS300 753 4.1E standard
Protection level Equipment cabinet: IP55; Battery cabinet: IP45
Battery space 1×180Ah
User space 15U
MTBF ≥200,000 hours
ACDistribution Input mode Three phase (single phase compatible)
Input voltage 85VAC~300VAC, rated value: 220VAC
Input frequency 45~66Hz, rated value: 50Hz/60Hz
Input capacity 1×63A/3P/MCB
SPD 30kA/60kA, 8/20μs
Maintenance socket 1x10A RCD(maintenance socket, optional)
AC output 2x16A MCB
DCDistribution Output voltage 42~58VDC, rated value: 53.5VDC
Maximum capacity 12kW(4×3000W)
Battery branch MCB: 1×125A/2P
LLVD branch 2x80A MCB, 9x32A MCB
BLVD branch 1x63A MCB, 3x32A MCB, 4x16A MCB
SPD 10kA,/20kA, 8/20μs
Rectifier Input voltage 85VAC~300VAC, rated value: 220VAC
Rated power 3000W(175VAC~300VAC)
Working temperature -40℃~+75℃
Dimensions 105mm(W)× 281mm(D) × 40.8mm(H)
Weight <2kg
Power factor ≥0.99
Power efficiency >96%
THD ≤5%
Controller Signal input 3 AI(battery temp., ambient temp., ambient humidity) 9 DI(water, smoke, gate, 6 common DI)
Alarm output 8 dry contact
Communication port RS232, RS485, FE
Storage capacity Up to 1000 historical records and alarm
Display mode LCD
Environment Operating temperature -40℃~+45℃+solar radiation
Storage temperature -40%~+70%
Operating humidity 5%~95%(non-condensing)
Altitude 0~4000m
