2 Port 100M 100Base-TX 100 Base-FX Fiber Cable Accessories

2 Port 100M 100Base-TX 100 Base-FX Fiber Cable Accessories
2 Port 100M 100Base-TX 100 Base-FX Fiber Cable Accessories

Large Image :  2 Port 100M 100Base-TX 100 Base-FX Fiber Cable Accessories

Product Details:
Place of Origin: Hubei, China
Brand Name: Unique-Tel
Certification: CE, RoHS
Model Number: TC100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: carton packaging
Delivery Time: 5 work days
Payment Terms: T/T, L/C
Supply Ability: 10000 Pieces/Month
Detailed Product Description
Weight: 340g Interface: ±4kV
Storage Temp: -40~85℃ Operating Temp: -40~75℃
Installation: DIN-Rail Mounting Dimension: 35mm×110mm×95mm
High Light:

Unmanaged fiber optic media converter

,

100m fiber optic media converter

2-port 100M Unmanaged Industrial Media Converter



Features



Support 1 100M fiber port, 1 100M copper port;

Support input voltage: 12~48VDC, nonpolarity, reverse polarity protection;

Support -40~75℃ wide operating temperature range.



Specifications



Standard

&

Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX and 100Base-FX

Interface

Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning

Fiber port: 100Base-FX, SC/ST/FC optional

LED Indicator Port Indicator, Power Supply Indicator

Switch

Property

Transmission mode: store and forward

MAC address: 2K

Packet buffer size: 0.5Mbit

Backplane bandwidth: 1.2G

Switch time delay: < 10μs

Power

Requirement

12~48VDC, 3-pin 7.62mm pitch terminal blocks

Support nonpolarity, reverse polarity protection

Power

Consumption

No-load: 1.20W@24VDC

Full-load: 1.37W@24VDC

Environmental

Limit

Operating temperature: -40~75℃

Storage temperature: -40~85℃

Relative humidity: 5%~95%(no condensation)

Physical Characteristic

Housing: IP40 protection, metal

Installation: DIN-Rail mounting

Dimension (W x H x D): 35mm×110mm×95mm

Weight: 340g

Industrial

Standard

IEC 61000-4-2 (ESD), Level 4

lAir discharge: ±16kV

lContact discharge: ±8kV



IEC 61000-4-5 (Surge), Level 4

lPower supply, common mode ±4kV, differential mode ±2kV

lEthernet interface: ±4kV



Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Certification CE, FCC, RoHS
Warranty 5 years





Description



2-port 100M unmanaged industrial media converter. The product provides 100M copper port and 100M fiber port. It adopts DIN-Rail mounting to meet the requirements of different application scenes.



Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.

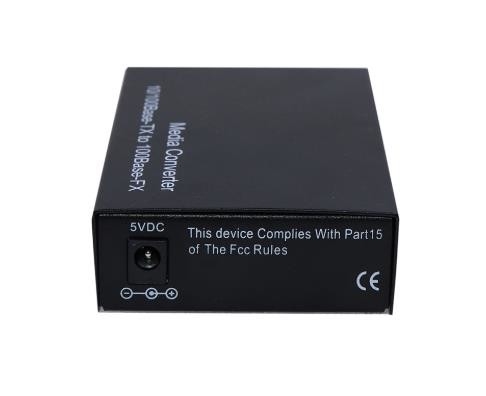

2 Port 100M 100Base-TX 100 Base-FX Fiber Cable Accessories 0
