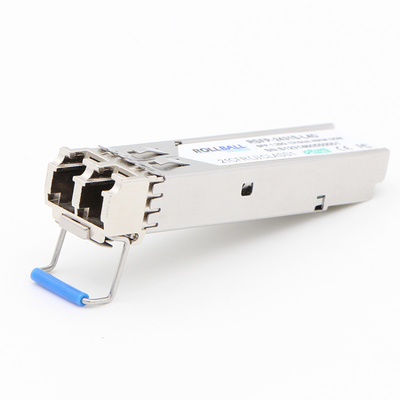

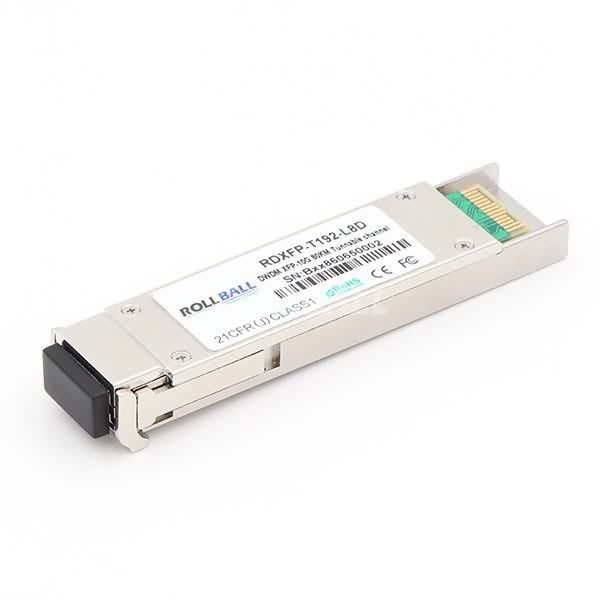

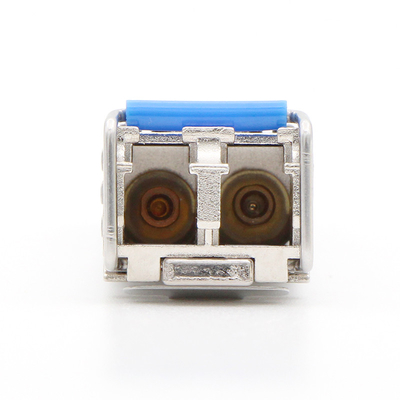

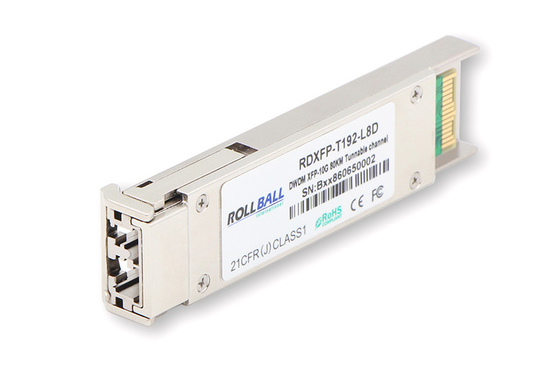

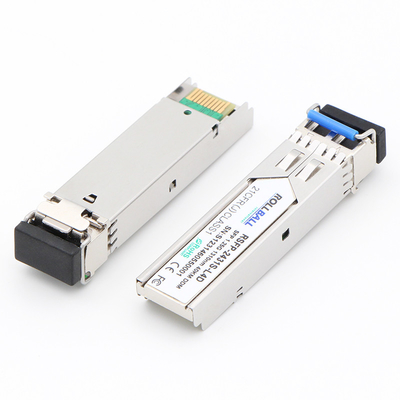

1550nm 80km Single Mode CWDM Optical Fiber Module

1550nm 80km Single Mode CWDM Optical Fiber Module
1550nm 80km Single Mode CWDM Optical Fiber Module 1550nm 80km Single Mode CWDM Optical Fiber Module 1550nm 80km Single Mode CWDM Optical Fiber Module 1550nm 80km Single Mode CWDM Optical Fiber Module 1550nm 80km Single Mode CWDM Optical Fiber Module

Large Image :  1550nm 80km Single Mode CWDM Optical Fiber Module

Product Details:
Place of Origin: Hubei, China
Brand Name: Unique-Tel
Certification: CE, RoHS
Model Number: SFP
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: Negotiable
Packaging Details: carton & PVC packaging
Delivery Time: within 10 days of payment
Payment Terms: T/T, L/C
Supply Ability: 10000 Pieces/Month
Detailed Product Description
Package: XFP Date Rate: 10G
Warranty: 2 Years Distance: 80KM
Wavelength: C-band 50hz Certification: CE FCC RoHS ISO9001
High Light:

CWDM Optical Fiber Module

,

80km Optical Fiber Module

,

1550nm sfp optical module

SFP Communication Equipment 1550nm 80km Singlemode CWDM Optical Module



Specifications



Certification CE FCC RoHS ISO9001
Warranty 2 Years
Item 10G dwdm xfp tunable 80km transceiver
Operating temperature Commericial grade: 0 to 70 degree; Industry grade: -40 to +85 degree
Package XFP
Date rate 10G
Distance 80KM
Wavelength c-band 50hz



Description



1).Unique-Tel’s sfp vs xfp are compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with

10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.

2).The transceiver module comprises a transmitter with in-cooled EML laser and a receiver with a PIN photo diode.

3).Transmitter and receiver are separate within a wide temperature range of 5°C to +70°C and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.



Application



* DWDM 10GBASE-ZR/ZW 10G Ethernet

* DWDM 80KM 10G Fiber Channel

* DWDM SONET OC-192&SDH STM-6



Features



* Supports 9.95Gb/s to 11.3Gb/s bit rates

* Monolithically integrated full C-band tunable transmitter

* 50 GHz ITU channel spacing with integrated wavelength locker

* C-band-tunable Laser and APD receiver

* Maximum link length of 80km

* Full Duplex LC connector

* Hot-pluggable XFP footprint

* Supports Line-side and XFI loopback

* No Reference Clock required

* Built-in digital diagnostic functions

* Standard bail release mechanism

* Power dissipation <3.5W

* With DDM / without DDM optional; default with DDM;

* Operating Case Temperature

Standard: 0°C ~+70°C

Industrial:-40°C~+85°C

1550nm 80km Single Mode CWDM Optical Fiber Module 0
