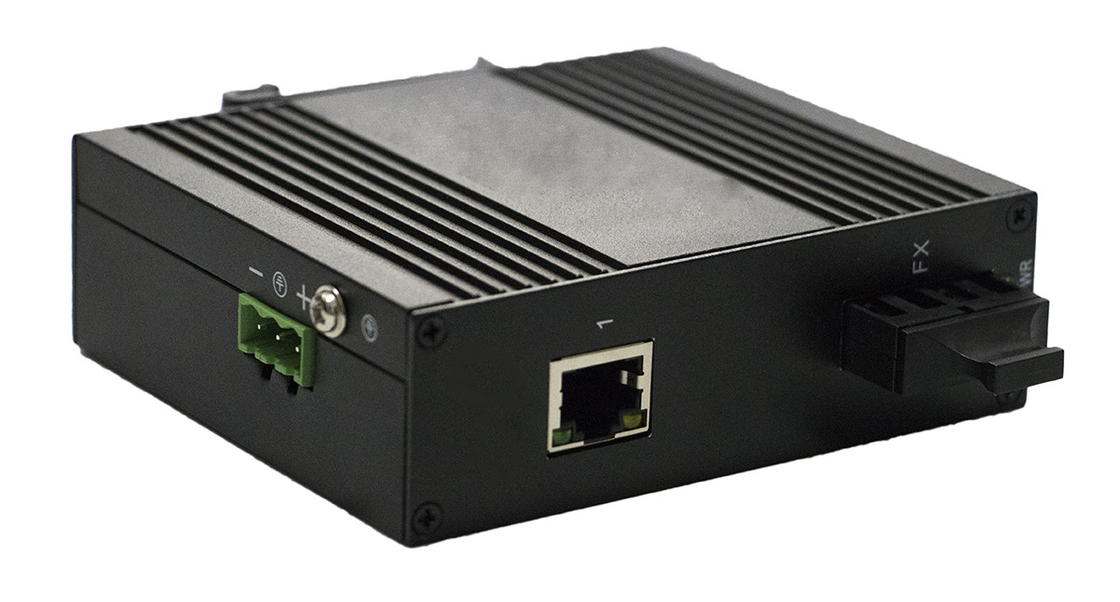

1000Mbps Standard IEEE 802.3 AF ATS POE Single Mode Fiber Transceiver

1000Mbps Standard IEEE 802.3 AF ATS POE Single Mode Fiber Transceiver
1000Mbps Standard IEEE 802.3 AF ATS POE Single Mode Fiber Transceiver

Large Image :  1000Mbps Standard IEEE 802.3 AF ATS POE Single Mode Fiber Transceiver

Product Details:
Place of Origin: Hubei, China
Brand Name: Unique-Tel
Certification: CE, RoHS
Model Number: TC1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: carton packaging
Delivery Time: 5 work days
Payment Terms: T/T, L/C
Supply Ability: 10000 Pieces/Month
Detailed Product Description
POE: IEEE 802.3 Af/ats POE POE Stitching: V+:1, V+:2, V-:3, V-:6
Overall Size: W108 XH90 X D34(mm) Installation: Standard 35mmDIN Card Rail
Indicator: PWR, FX, G1 Impact: IEC60068-2-27
Free Fall: IEC60068-2-32 Safety: CE/EN60950
High Light:

adaptive fiber transceiver

,

1000mbps single mode fiber transceiver

10 100 1000Mbps Adaptive Fiber Transceiver Standard IEEE 802.3 AF ATS POE



Product Features



1. Original imported industrial-grade ASIC

2. No fan, low power consumption, high and low temperature resistance

3. Plug and play design, without on-site electrical and optical adjustment

4. Abundant status indicators can monitor the running status of the equipment

5. Comply with IEEE802.3 10base-t and IEEE802.3u100 Base-TX /FX and 1000base-tx /FX standards

6. Support full duplex and half duplex transmission mode, can automatically negotiate

7. Adaptive parallel line/cross line connection mode of electrical port

8. Suppress the broadcast storm

9. Full surface mount SMD technology

Industrial grade multiple lightning protection and electromagnetic interference protection design

11. POE complies with IEEE 802.3af/at standard and provides 15.4w power supply

12. 12 ~ 36V DC elastic power supply, easy to install and maintain

13.IP40 protection grade, DIN guide rail installation



Specifications



Interface

1 x 10/100/1000 Base-TX, rj-45

1 x 1000 Base FX, SC/FC/ST/SFP

Rate 10/100/1000mbps (adaptive)
Packet forwarding rate 4.464Mpps
Back panel bandwidth 4Gbps
POE Standard IEEE 802.3 af/ats POE
POE power supply IEEE 802.3af 48V 15.4w
POE stitching V + : 1, V + : 2, V - : 3, V - : 6
Transmission Store and forward
Working mode Full duplex/half duplex adaptive
Connection mode Parallel line/cross line adaptive
Indicator lights PWR, FX, G1
Transmission distance Single mode 20-120km, Multi-mode 2KM
Power input European gauge wire terminal (12 ~ 36V DC elastic power supply)
Power consumption < 3 w
Overload protection Support
Enclosure Aluminum enclosure, no fan
Protection grade IP40, high strength metal shell
Overall size W108 xH90 x D34(mm)
Weight 300 g
Installation Standard 35mmDIN card rail type
Operating temperature -40°C-85°C
Storage temperature -40°C-95°C
Relative humidity 5-95% (no condensation)
Average trouble-free working time 400,000 HRS
EMI FCC Part 15, CISPR (EN55022) Class A
EMS

EN 61000-4-2 (ESD), Level 3;

EN 61000-4-3 (RS) of electromagnetic field, Level 3

EN 61000-4-4 (fast transient EFT),Level 3

EN 61000-4-5 (Surge Surge), Level 3

EN 61000-4-6 (induction CS), Level 3

En 61000-4-8 (power frequency magnetic field), Level 5

Impact IEC60068-2-27
Free fall IEC 60068-2-32
Industrial environment immunity IEC 61000-6-2, IEC 61850-3
Vibration IEC 60068-2-6
Safety CE/EN60950





Order Information



Model Configuration Power Supply
TS-IE1101G-SSA/B 1 x 10/100/1000 Base-TX, 1 X 1000 Base FX, single mode, single fiber, SC, 25KM, 1310nm/1550nm 12V DC
TS-IE1101G-S 1 x 10/100/1000 Base-TX, 1 X 1000 Base FX, single mode 2 fibers, SC, 25KM,T/Rx 1310nm 12V DC
TS-IE11O1G-SFP 1 x 10/100/1000 Base-TX, 1 X 1000 Base FX(SFP), rail type 12V DC

Note: POE optional



Product Overview



TS-IE1101G series industrial optical fiber transceiver provides 1000Base-FX optical fiber interface and 10/100/1000mbps RJ45 port, supporting 10/100/1000mbps, full duplex/half duplex and MDI/MDIX polarity adaptive. The product adopts high performance industrial grade chip, and all ports support non-blocking, full-speed packet forwarding.TS - IE1101G series industrial grade optical fiber transceiver adopts high quality hardware design, fully following the industrial grade design specification.All ports of the equipment are equipped with lightning protection circuit, electromagnetic interference LV4 standard, the equipment can operate reliably even in harsh environment.



1000Mbps Standard IEEE 802.3 AF ATS POE Single Mode Fiber Transceiver 0
