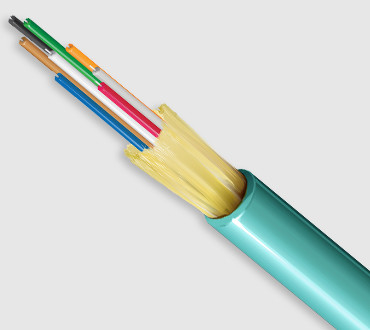

OM4 High Protection Level Fiber Optic Cable For Distribution Multi Mode

OM4 High Protection Level Fiber Optic Cable For Distribution Multi Mode
OM4 High Protection Level Fiber Optic Cable For Distribution Multi Mode OM4 High Protection Level Fiber Optic Cable For Distribution Multi Mode OM4 High Protection Level Fiber Optic Cable For Distribution Multi Mode

Large Image :  OM4 High Protection Level Fiber Optic Cable For Distribution Multi Mode

Product Details:
Place of Origin: China
Brand Name: Unique-Tel
Certification: RoHS
Model Number: NWGL02
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Meters
Price: Negotiation
Packaging Details: fiber optic reel
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 10000 Meters/Month
Detailed Product Description
Color: Customizable Length: Customized
Sheath: LSZH Certificate: RoHS
Fiber Count: 2 - 144 Core Application: Telecom,Network
Feature: Outdoor Optical Cable Test: 100% Inspected And Tested
High Light:

fiber optic ethernet cable

,

central tube fiber cable

Fiber Distribution Cable Multi Mode OM4 High Protection Level Fiber Optic Cable

Description


Unique-Tel tight-buffered multi-fiber distribution cables are available in fiber counts from 2 to 144. These highly popular cables are designed for both indoor & indoor/outdoor applications. Distribution cables are available in plenum, riser, unitized & non-unitized constructions which fit a wide array of general purpose installations. Their small bend radius and 900µm tight-buffered fibers allow for fast installations and easy terminations.


Features


Horizontal distribution for Fiber-to-the-desk
Intra-building & inter-building backbones
Data Center EDA areas
Factory floor automation
900µm Tight Buffered Fibers: Fast and Robust Field Termination
All-Dielectric Designs: Eliminate the need for grounding
Interlocking Armor: Removes the need for conduit
Environmental Protection: UV, Moisture, & Fungus Resistant



Specifications


Temperature Ranges:
 OFNROFNPLSZH OFNR
Operating Temp-20 to +70°C0 to +70°C0 to +70°C
Storage Temp-40 to +70°C-40 to +70°C-40 to +70°C
Installation Temp-10 to +60°C0 to +60°C0 to +60°C



Glass Type

OM1 -

62.5/125mm Multi-Mode

OM2 -

50/125mm Multi-Mode

OM3 - 50/125mm

Multi-Mode

OM4 - 50/125mm

Multi-Mode

OS2 - Single Mode2
Fiber Grade Code (x)1234S
Legacy Fiber Grade Code (z)BACEW
Jacket & Subunit ColorOrangeOrangeAquaErika Violet4Yellow
Operating Wavelength (nm)850/1300850/1300850/1300850/13001310/1550
Min. OFL1 Bandwidth (MHz-km)200/500500/5001500/5003500/500-

Min. Laser Bandwidth3

(MHz-km)

220/-950/-2000/-4700/--
Max Attenuation (dB/km)3.5/1.23.5/1.53.25/1.23.0/1.20.5/0.5
1 Gigabit Ethernet Min. Link Length (meters)275/550600/6001000/5501100/5505000/-

10 Gigabit Ethernet Min.

Link Length (meters)

33/-82/-300/-400/-10,000/40,000
  • OFL – Overfilled Launch
  • Low water peak Single-mode suitable for CWDM use complies with ITU G.652c/d and G657-a1
  • Effective Modal Bandwidth, determined by RML or DMD performance specifications
  • OM4 is available in aqua upon request.
Physical Specifications
Fiber Type:See above tables
Buffer:Type: Thermoplastic Tight Buffer
Diameter: 900 +35mm/-50mm
Assembly:

Natural Fibers with strength members

Strength members:Aramid
Subunit Jacket Material:

Thermoplastic, same color as

outer jacket, numbered

Jacket Material:Thermoplastic
Listing:See attached tables
