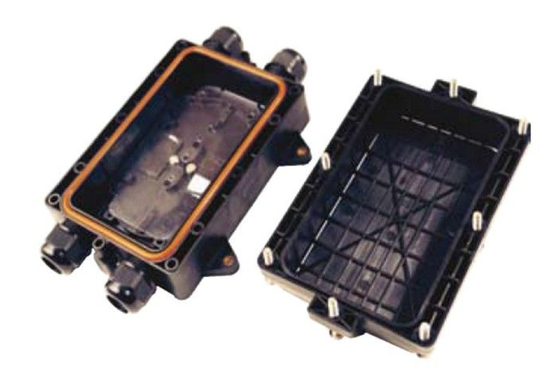

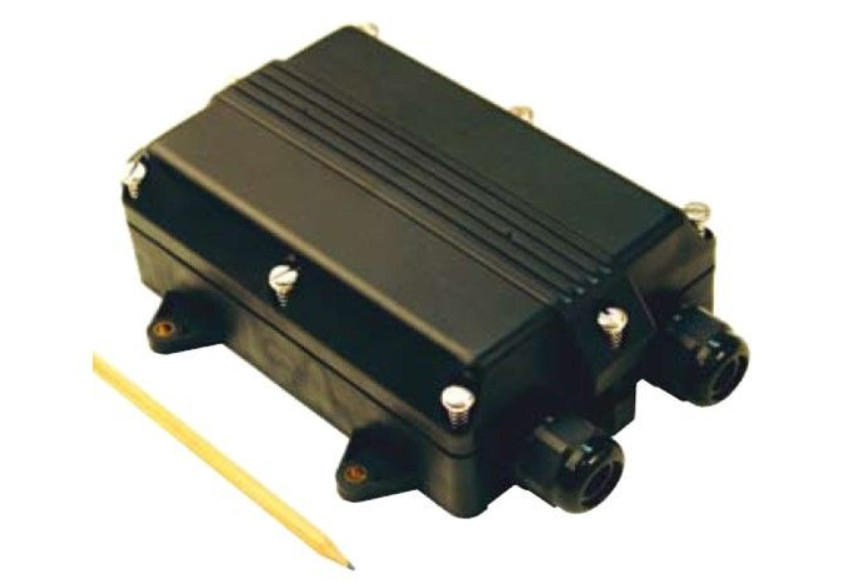

Waterproof IP68 Fiber Enclosure Box , 24 Fiber Airtight Fiber Optic Pull Box

Waterproof IP68 Fiber Enclosure Box , 24 Fiber Airtight Fiber Optic Pull Box
Waterproof IP68 Fiber Enclosure Box , 24 Fiber Airtight Fiber Optic Pull Box Waterproof IP68 Fiber Enclosure Box , 24 Fiber Airtight Fiber Optic Pull Box

Large Image :  Waterproof IP68 Fiber Enclosure Box , 24 Fiber Airtight Fiber Optic Pull Box

Product Details:
Place of Origin: China
Brand Name: Unique-Tel
Certification: CE RoHS
Model Number: JXH10
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: Negotiation
Packaging Details: carton packaging
Delivery Time: 5 work days
Payment Terms: T/T, L/C
Supply Ability: 1000 Pieces/Month
Detailed Product Description
Tray: 2 Max. Count: 24
Length: 260mm Width: 170mm
Depth: 70mm Material: ABS
RoHS: Complaint Temperature: -40°C To +80°C
High Light:

fiber optic joint enclosure

,

fiber enclosure box

24 Fiber Airtight Waterproof IP68 Splice Box Fiber Splice Joint Enclosure



Overview



The Unique-Tel Mini enclosure is acid and alkaline resistant. Furthermore, its airtight and waterproof design makes it ideal for applications in wet/damp environment. Since the casing material is recyclable, environmental pollution is minimized. The ease of installation is evident, all one needs is a screwdriver from start to finish. In addition, for loose tube applications, no heat shrinking work is required.



Features



  • All-in-one construction
  • Compact and lightweight
  • Acid and alkaline resistant
  • Airtight and waterproof
  • Simple installation
  • Made of acid-proof and impact resistant polypropylene
  • Ideal for cable repair work
  • Environmentally friendly
  • Working Temperature Range: -40°C ~ +80°C
  • Cable Entry Pulling Strength: 30kg
  • Compression Resistance: 3000 N
  • Suitable for loose tube cables or slotted core ribbon cables
  • Can be used in through, branch, or mid-span type splice locations
  • Suitable for aerial, underground, duct, or buried applications
  • IP68
  • Dome Enclosure up to 144 fibres Capacity



Applications



Splice closures provide room for splicing outdoor fiber cables together. Fiber optic splice trays are needed too. They provide the perfect protection for outside plant fiber cable joints.

Fiber optic splice closures accept both ribbon and round fiber cables. Each type (ribbon or round cable) fits respective requirement of different fiber splicing counts. They are widely used in fiber optic telecommunication systems.



Specifications



Length 260mm
Width 170mm
Depth 70mm
Weight 0.6kg
Packaged Dimensions 185mm (W) X 260mm (L) x 75mm (H)
Packaged Weight 0.9kg
Maximum Single Fibre Count 24
Maximum Fibres Per Tray 12
Maximum Number Of Trays 2
Number Of Cable Entry Points 4
Cable entry diameter 8mm - 16mm
Sealing Rating IP68
Colour Black
Material ABS
RoHS Compliant Yes
Optimal Operating Temperature -40°C to +80°C



24-fiber-airtight-waterproof-ip65-splice-box-fiber-splice-joint-enclosure
