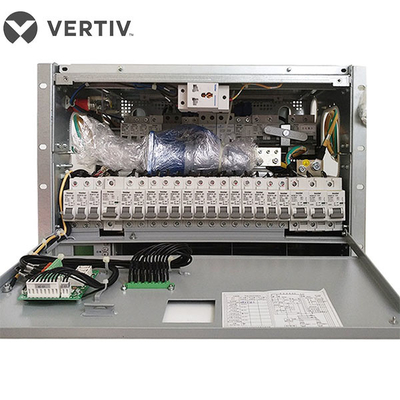

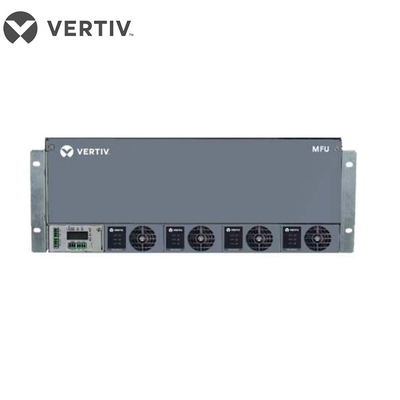

Vertiv / Emerson Integrated DC Telecom Power Supply Netsure 531A41

Vertiv / Emerson Integrated DC Telecom Power Supply Netsure 531A41
Vertiv / Emerson Integrated DC Telecom Power Supply Netsure 531A41 Vertiv / Emerson Integrated DC Telecom Power Supply Netsure 531A41 Vertiv / Emerson Integrated DC Telecom Power Supply Netsure 531A41

Large Image :  Vertiv / Emerson Integrated DC Telecom Power Supply Netsure 531A41

Product Details:
Place of Origin: China
Brand Name: Vertiv
Certification: CE, RoHS
Model Number: NETSURE 531A41
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: carton box
Delivery Time: within 10 days of payment
Payment Terms: L/C, T/T
Supply Ability: 1000 sets/month
Detailed Product Description
System Capacity: 18kw Efficiency: >96%
Nominal Voltage: -48Vdc Rated Voltage: -53.5Vdc
Output Voltage: -42Vdc ~ -58Vdc Controller: M221S / M222S / M830B
High Light:

NETSURE 531A41

,

vertiv telecom power supply

Vertiv/Emerson -48V Integrated DC Power System High Efficiency 96% Netsure 531A41 For Telecom Power Supply



Short Description



The Netsure™ 531 series from Vertiv is a fully-integrated DC power system consisting of a rectififier and controller that provides maximum eơiciency for mobile communication applications such as LTE and FTTx deployments or macro stations. It is designed to meet the high-eơiciency demands of mobile applications, with high reliability, high power density, and fully digital features. The built-in high eơiciency R48-2000e3 rectififier also provides an ultra high eơiciency of up to 96%, signifificantly improving the energy eơiciency.



Features



* The installation space and cost can be saved due to its small size and embedded installation.
* Wide input voltage range(85- 300Vac), strong ability in adapting power grid.
* Rectifier working temperature o range: -40 ~+80 C.
* Supports ECO sleep technology, that optimizes system efficiency.
* Efficiency of the rectifier is above 96%, efficiency of the system is above 95%. Intelligent battery management System, which prolongs the working life of the battery.
* Provide multiple communication ports such as RS232, Ethernet port, dry contacts, etc, for flexible networking to achieve remote monitoring.



Specifications



System Configuration

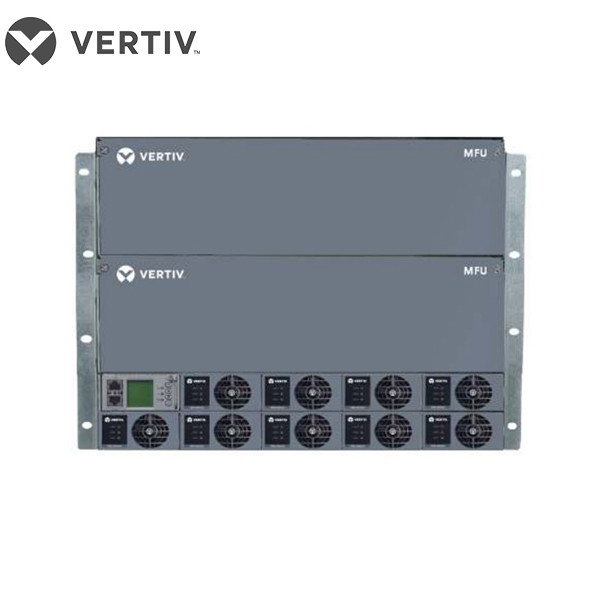

Configuration NetSureTM 531 A41 NetSureTM 531 A91
Controller M221S / M222S / M830B
System capacity 18kw
Rectifier Max: 4 x R48-2000e3 Max: 9 x R48-2000e3
AC Distribution Input 1x63A/2P 1x63A/4P
  Output 1x16A /1P
Battery Capture 2x63A/1P 2x125A/1P
BLVD 2x16A/1P 5×63A/1P, 5×32A/1P, 8×10A/1P
LLVD 2x63A/1P, 2x32A/1P
Distribution C-level lightning protection at AC side, D-level lighting protection at DC side and signal side



Rectifier
Configuration Model
Euicient Module R48-2000e3
Electric Parameters Descripton
Input Voltage 85 VAC ~ 300VAC
Power Factor ≥0.99
Efficiency >96%
Output Voltage -42Vdc ~ -58Vdc
Nominal Voltage -48Vdc
Rated Voltage -53.5Vdc
Controller M221S/M222S/M830B
M221S M222S M830B
Display LCD with 8x16 characters 128 x 160 pixels TFT LCD



The engineering graphics of the subrack power system as below



Vertiv Emerson-48V integrated DC power system high efficiency 96% Netsure 531A41 for Telecom Power Supply5



Connecting AC Input Cables



Vertiv Emerson-48V integrated DC power system high efficiency 96% Netsure 531A41 for Telecom Power Supply6



Connecting Load Cables



Vertiv Emerson-48V integrated DC power system high efficiency 96% Netsure 531A41 for Telecom Power Supply7
