Wuhan Unique Mechanical And Electrical Equipment Co.,LTD.
Home ProductsNetwork Equipment Rack

Temperature Control Home Network Equipment Rack Cabinet IP55 Waterproof

China Wuhan Unique Mechanical And Electrical Equipment Co.,LTD. certification
These guys are really professional at trading as well as networking stuffs, saved me a lot of energy and money.

—— John Karanja

Nice working with you, flawless product, considering the next deal.

—— Michael Morrison

I'm Online Chat Now

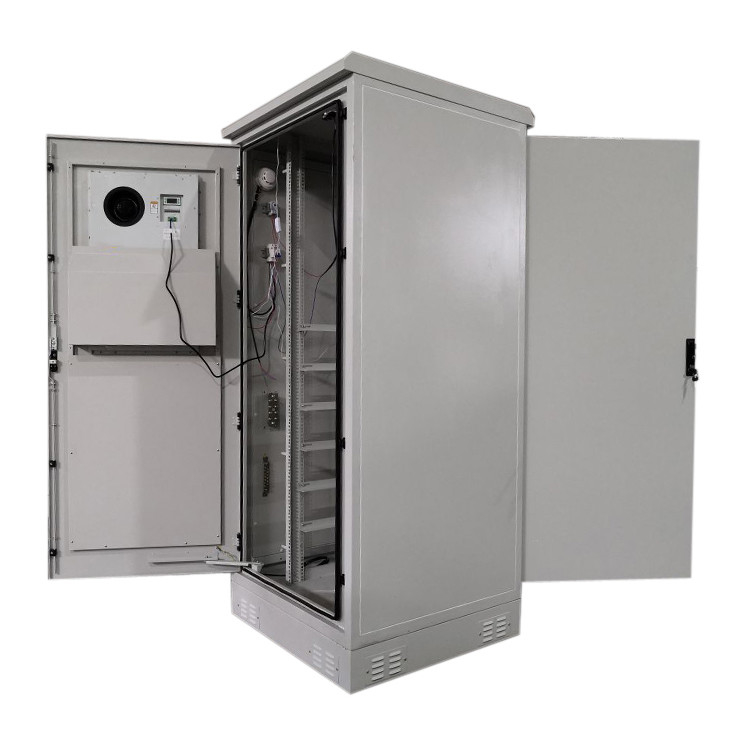

Temperature Control Home Network Equipment Rack Cabinet IP55 Waterproof

Temperature Control Home Network Equipment Rack Cabinet IP55 Waterproof
Temperature Control Home Network Equipment Rack Cabinet IP55 Waterproof

Large Image :  Temperature Control Home Network Equipment Rack Cabinet IP55 Waterproof

Product Details:
Place of Origin: China
Brand Name: Unique-Tel
Certification: CE, RoHS
Model Number: Network Cabinet
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: carton box
Delivery Time: within 10 days of payment
Payment Terms: L/C, T/T
Supply Ability: 1000 sets/month
Detailed Product Description
Condition: New Voltage: 380V
Static Pressure: 100Pa Warranty: 5years
Certification: CCC, CE Core: Aluminum Foil Core
Structure: Plate Heat Exchanger Design: Auto Warning Protection
High Light:

wall mount relay rack

,

enclosed server rack

Outdoor Temperature Control Network Equipment Rack Cabinet IP55 Waterproof



Product Advantages



Cabinet made of low thermal conductivity and fireproof material for heat insulation fireproof.

Can be installed in any difficult places include the top of mountain and the roof of buildings.

Strong rack inside to be equipped with telecom equipment, power source, battery, temperature control device and other attachments.

Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.

Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP55.

Support customize.



Technical Feature:



Cabinet external temperature:-40-+60 degree

Environmental temperature:-50-+55 degree

Protection Level: at least IP55

Material: SPCC Cold Rolled Steel,Galvanized Steel 1.5mm thickness for the body,2.0mm for 19'' rails

Body Color: Gray RAL7035

Equipment working temperature:-18-+35 degree

Environmental humidity:less than 95%(+30 degree)

Atmospheric pressure: 70-106Kpa

Double layers design for the body

Good quality earthing system,grounding resistance is less than 10 milliohm, good lightning protection ability.

Reasonable inside space application, equipment space, cabling space, battery space

Dedicated air filter system to stop dust and rain inside cabinet during the fresh air into the cabinet

High quality 3 points handle locks, protection level IP55-IP65



Product Description



Type Outdoor Cabinet
External size W650*D650*H1250mm
Internal capacity 22U, 19 inch rack
Material Galvanized steel sheet or according to customer requirement, electrostatic powder coating, waterproof
Structure Double-layer heat insulation structure
Package Wooden case
Certificate CE, ROHS, ISO9001
Place of origin China
Door and cooling system With one front door, 80W/K heat exchanegr (use of 48VDC power supply)
Color RAL7035
Protection Grade IP55
LED light With LED light and was controlled by the door opened/closed.
Mount Method On the ground



Specifications



Core Aluminum foil core
Static pressure 100Pa
Structure Plate Heat Exchanger
Warranty 5years
Design Auto warning protection
Condition: New
Voltage: 380V
Certification: CCC, CE



Temperature Control Home Network Equipment Rack Cabinet IP55 Waterproof 0
