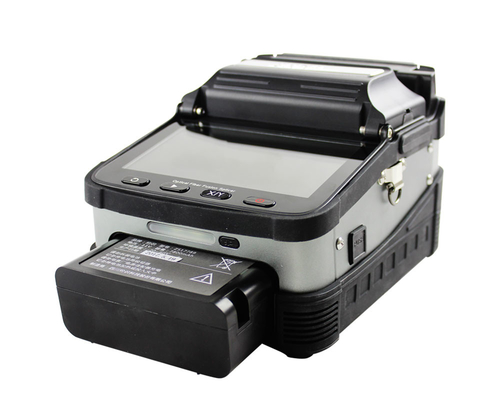

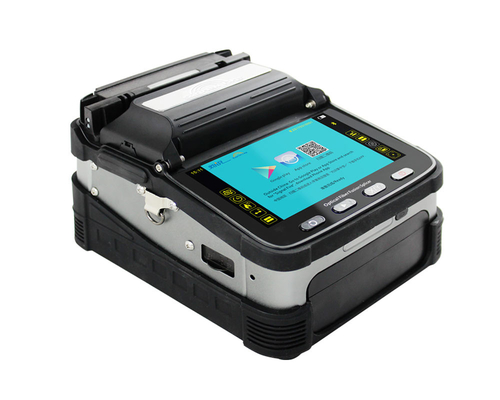

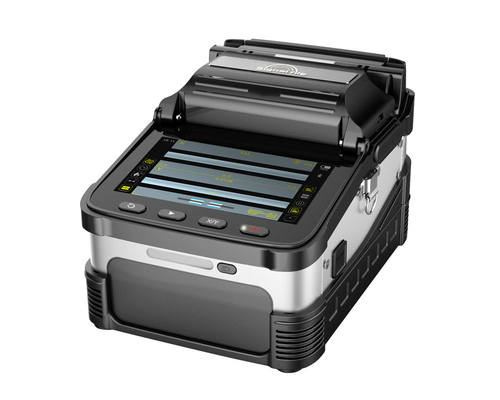

Signal Fire Ai-7/8 Fiber Fusion Splicing Machine Auto Focus Six Motors

Signal Fire Ai-7/8 Fiber Fusion Splicing Machine Auto Focus Six Motors
Signal Fire Ai-7/8 Fiber Fusion Splicing Machine Auto Focus Six Motors Signal Fire Ai-7/8 Fiber Fusion Splicing Machine Auto Focus Six Motors Signal Fire Ai-7/8 Fiber Fusion Splicing Machine Auto Focus Six Motors Signal Fire Ai-7/8 Fiber Fusion Splicing Machine Auto Focus Six Motors

Large Image :  Signal Fire Ai-7/8 Fiber Fusion Splicing Machine Auto Focus Six Motors

Product Details:
Place of Origin: Hubei, China
Brand Name: Signal Fire
Certification: CE, RoHS
Model Number: AI-7/8
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: carton & PVC packaging
Delivery Time: within 10 days of payment
Payment Terms: T/T, L/C
Supply Ability: 10000 Pieces/Month
Detailed Product Description
Humidity: <95% RH Focus Mode: Auto Focus
Temperature: -15 ~ +50 ℃ Return Loss: Better Than 60DB
Typical Splicing Time: 6S(AI-8) / 8S(AI-7) Fiber Alignment: Core/cladding Alignment
High Light:

core alignment fusion splicing machine

,

100km Fusion Splicing Machine

,

AI-7/8

Signal Fire Ai-7/8 Auto Focus Six Motors Fusion Splicing Machine



Product Description:



- Signal Fire AI-7/8 use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with 100 km trunk construction, FTTH project, security monitoring and other fiber cable splicing projects.

- The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 6 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50%

compared to ordinary splicing machines.

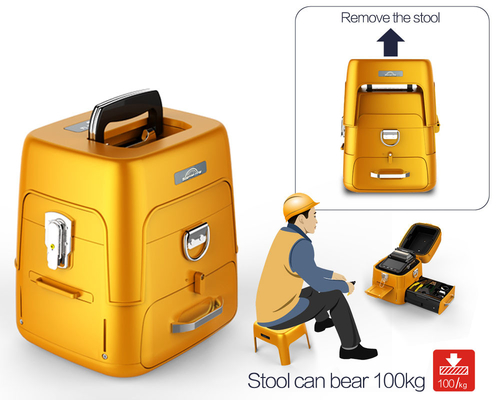

- Under the conditions of rigorous testing, the performance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design. The design of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction or repair. Screen

brightness is adjustable and it is convenient for outdoor sunshine environment operation.

- The core parts are using imported brands, aviation metal body material with exquisite details. With the combination of advanced technology

and design, the new generation of optical fiber fusion splicer will bring you a reliable and comfortable user experience.



Masterpiece High-end Luxury:



- Six motors

- Core alignment

- 6 seconds fast splicing

- 15 seconds fast heating

- Disassembly free three-in-one fiber holder

- 7800mAh large capacity battery

- 300 times magnification auto focus

- Once splicing reaches to 50,000 times free replacement a new machine



Metal Body Aethetic Details:

- Automatic heating

- LED light

- Convenient for night operation

- Battery press & remove

- Protective case

- 5 inch display

- Simultaneously align fibers

- Loss display

- 18 patent results

- Lifetime free warranty



After-sales service:



- Once you buy our Fusion Splicer machine, we offer original packaging new machine, the products meet industry-related quality standards and commitment to enjoy the following services provided by our company:

- Lifetime warranty, lifetime free parts, but these circumstances are not within the scope of this provision.

A, Except for the cleaver, Miller clamp, stripping pliers, fiber holders and other tools whose life depends on the frequency of use and the use of the environment.

B, Electrodes are consumables, it is in termination after the electrodes splicing 3,000 times.

C, Battery warranty for one year, it is in free warranty where it is damaged or can not be charged in one year.

D, Due to natural disasters and other outside force majeure caused by failure or damage.

E, Human factors cause the machine to strong shocks, drops and other factors result in damage.

F, Without our company authorization, unauthorized disassembly, repair situation; at the same time our company reserves the right to further responsibility.

G, The customer bear the out and home shipping cost.



Package List:



- 1 x Signal Fire Ai-7 Intelligent Optical Fiber Cleaver Fusion Splicer



Specifications



Tension Test Standard 2N
Fiber holders Multi function holders, Applicable for SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable
Magnification 300 for X or Y view, 150 for X or Y view
Screen 5.1 inch TFT color display
Software upgrade Mobile APP update,Turn on Bluetooth sync to the machine
Splicing Mode Normal / high precision splicing
Splicing record storage Synchronize to the phone, the server to cloud storage unlimited
Built-in battery 7800 mA high-capacity lithium battery, charging time ≥ 3.5 hours, continuous splicing and heating about 200 times
Power supply Input AC100-240V 50 / 60HZ, output DC13.5V / 4A, the current power mode can be identified, real-time detection of battery power
Operating Conditions Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation),Working altitude: 0 ~ 5000m. Resist max. wind speed: ≤ 15m / s
Built-in lighting easy for night operation
Applicable Fibers SM(G.652&G.657), MM(G.651), DS(G.657), NZDS(G.655)
Splice Loss 0.025dB(SM), 0.01dB(MM)0.04dB(DS/NZDS)
Focus mode Auto focus
Fiber alignment Core/cladding alignment Manual alignment
Typical splicing time 6S(AI-8) / 8S(AI-7)
Typical heating time

15 S (AI-8) / 18 S (AI-7)

Fast heating function, heating time can be set

Control technology Real-time control and calibration of fusion ARC
Return loss Better than 60DB
Fiber diameter Cladding Diameter 80-150μm, Coating Diameter 100-1000μm
Fiber Cleave Length Coating less than 250µm:8-16mmCoating less m250-1000μm:16mm
Heat shrinkable tube 60mm, 40mm
