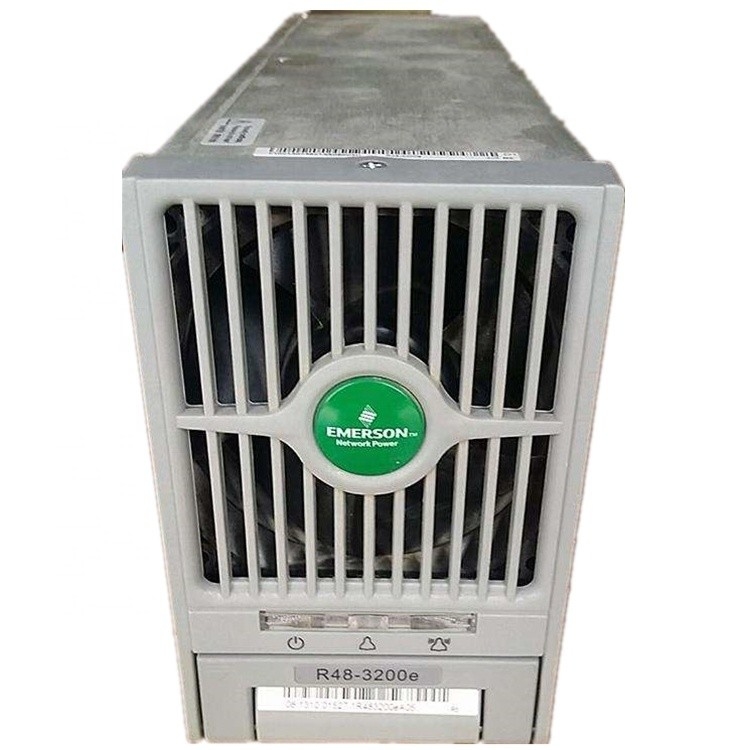

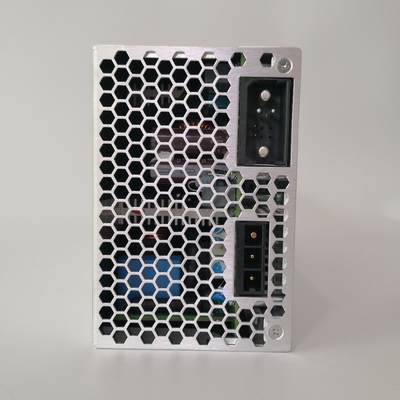

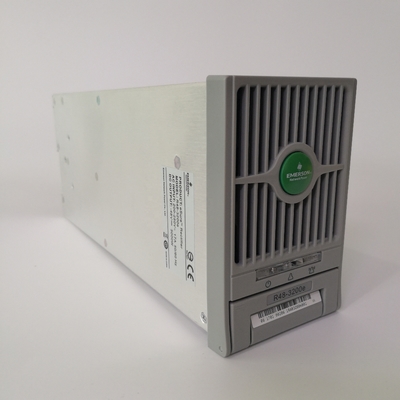

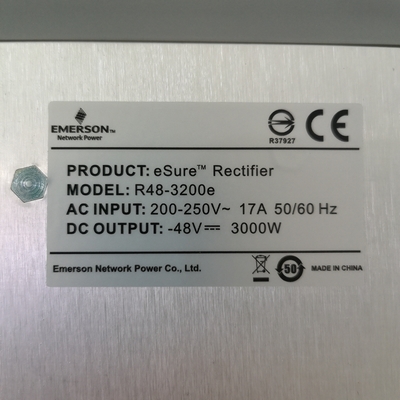

Power Supply 5G Network Equipment Emerson R48 - 3200E For Inverter / Converter

Power Supply 5G Network Equipment Emerson R48 - 3200E For Inverter / Converter
Power Supply 5G Network Equipment Emerson R48 - 3200E For Inverter / Converter Power Supply 5G Network Equipment Emerson R48 - 3200E For Inverter / Converter Power Supply 5G Network Equipment Emerson R48 - 3200E For Inverter / Converter Power Supply 5G Network Equipment Emerson R48 - 3200E For Inverter / Converter

Large Image :  Power Supply 5G Network Equipment Emerson R48 - 3200E For Inverter / Converter

Product Details:
Place of Origin: China
Brand Name: EMERSON(VERTIV)
Certification: CE, RoHS
Model Number: R48-3200E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: carton box
Delivery Time: within 10 days of payment
Payment Terms: L/C, T/T
Supply Ability: 1000 sets/month
Detailed Product Description
Model NO: R48-3200E Weight: 3.1kg
Efficiency: 92% Altitude: < 3000m
DC Output: -48V 3200W Type: Bridge Rectifier
Package Type: Surface Mount Dimensions: 400 X1 60 X 225 Mm
Application: Inverter / Converter AC Input: 200 - 250V ~17.0A 50/60HZ
Equalizing Charging Temp.Coefficient: Built-in Fan, Forced Convection
High Light:

R48-3200E

,

Inverter Emerson Rectifier Module

,

3200W Emerson Rectifier Module

New and original package rectifier module power supply Emerson R48-3200E



The NetSure R48-3200E recifier converts standard AC supply voltages into stable nominal -48V DC voltage adjustable to the needs of the application. The R48-3200E is constant power recitifer designed with the latest patented switch=mode technology using DSP (Digital Signating Processor) functionality for efficient operation.

For a higher load capacity, rectifiers can be connected in parallel and intelligent control can be added with the help of a separate controller.



Product description:



1, Model No.:R48-3200E.

2, Brand:Emerson (Vertiv);

3. AC input voltage: 200 - 250V;

4. AC input current:17A;

5. DC output voltage:-48V

6, DC output power: 3200W



Product features:



  • 3200 watt rectifier designed for -48V DC power applications
  • Optimized depth – reduced footprint allows installation in short-depth racks and cabinets
  • DSP (Digital Signaling Processor) means fewer components, optimized operation and active load sharing for increased reliability
  • Compliant with global standards – delivers quality, performance and reliability no matter what the application or location demands
  • High efficiency, up to 92%, reduces power consumption for lower operating costs
  • Hot pluggable – facilitates future extensions
  • Wide input voltage range –operates in the most demanding environments where input voltage changes
  • Wide temperature operating range (-40°C / -40°F to +75°C / 167°F) meets the harshest climatic environment requirem
