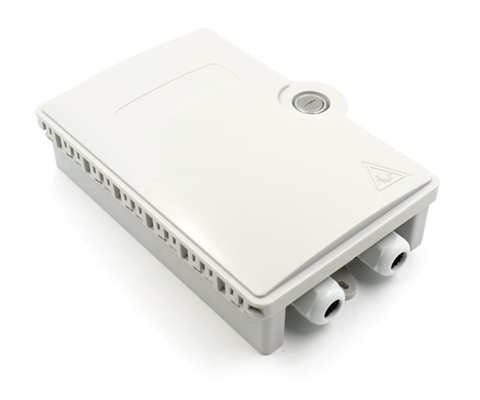

IP55 Protection Fiber Optic Termination Box FTTx 4 Fiber PC ABS Material Dust Proof

IP55 Protection Fiber Optic Termination Box FTTx 4 Fiber PC ABS Material Dust Proof
IP55 Protection Fiber Optic Termination Box FTTx 4 Fiber PC ABS Material Dust Proof IP55 Protection Fiber Optic Termination Box FTTx 4 Fiber PC ABS Material Dust Proof IP55 Protection Fiber Optic Termination Box FTTx 4 Fiber PC ABS Material Dust Proof

Large Image :  IP55 Protection Fiber Optic Termination Box FTTx 4 Fiber PC ABS Material Dust Proof

Product Details:
Place of Origin: China
Brand Name: Unique-Tel
Certification: CE RoHS
Model Number: ZDH04
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: Negotiation
Packaging Details: carton packaging
Delivery Time: 5 work days
Payment Terms: T/T, L/C
Supply Ability: 1000 Pieces/Month
Detailed Product Description
Input Port: 1 Outlet Port: 1
Adapter: Yes Type: SC/FC/ST/LC
Application: FTTx Network Pressure: 62kPa-105kPa
Packaging: 20 Pcs Per Carton Dimension: 207mm X 152mm X 51.7mm
High Light:

rack mount fiber termination box

,

ftth distribution terminal box

IP55 Protection FTTx 4 Fiber Optical Distribution Box Termination Box Network



Overview



Unique-Tel ZDH04 optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



Features



PC+ABS material used ensures the strong body

Moisture-proof, water-proof, dust-proof, anti-aging

Easy installations: Ready for wall mount – installation kits provided

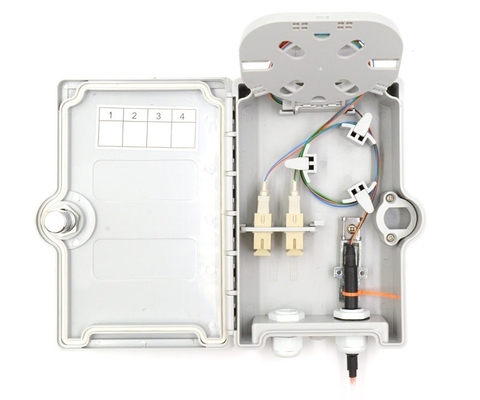

Space saving: Double-layer design for easier installation and maintenances

Protection level up to IP55

Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses

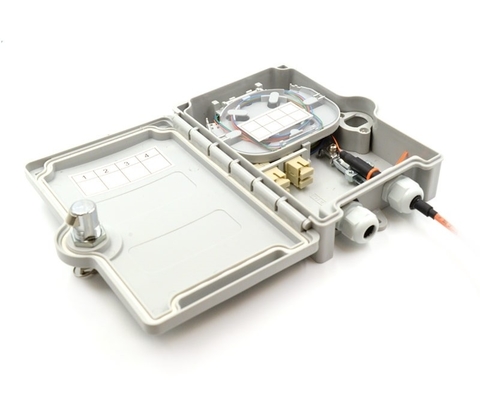

Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapt or installation, easy maintenance.



Specifications



Dimensions and Capability
Adapter Capacity LC Duplex SC Simplex
4 4
Dimensions (W*D*H) 167mm*31mm*102mm
Number of Cable Entrance Max Diameter 14mm*Q1
Number of Cable Exit Up to 4 Drop Cables
Weight 0.32 KG
Optional Accessories Adapters, Pigtails, Heat Shrink Tubes
Installation Wall-Mounted or Pole-Mounting

Operation Conditions
Temperature -40℃ -- 60℃
Humidity 93% at 40℃
Air Pressure 62kPa – 101kPa



Shipping Information
Package Contents Distribution box, 1 unit; Keys for lock, 2 keys
Wall mount installation accessories, 1 set
Package Dimensions(W*H*D) 190mm*50mm*120mm
Material Carton box
Weight 0.82 KG
Lead Time 10-15 working days normally
