Fully Equipped ODF Optical Distribution Frame Metal Rack Mount For Telecom

China Wuhan Unique Mechanical And Electrical Equipment Co.,LTD. certification
These guys are really professional at trading as well as networking stuffs, saved me a lot of energy and money.

—— John Karanja

Nice working with you, flawless product, considering the next deal.

—— Michael Morrison

I'm Online Chat Now

Fully Equipped ODF Optical Distribution Frame Metal Rack Mount For Telecom

Fully Equipped ODF Optical Distribution Frame Metal Rack Mount For Telecom
Fully Equipped ODF Optical Distribution Frame Metal Rack Mount For Telecom Fully Equipped ODF Optical Distribution Frame Metal Rack Mount For Telecom

Large Image :  Fully Equipped ODF Optical Distribution Frame Metal Rack Mount For Telecom

Product Details:
Place of Origin: China
Brand Name: Unique-Tel
Certification: CE RoHS
Model Number: PXX12
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: Negotiation
Packaging Details: carton packaging
Delivery Time: 5 work days
Payment Terms: T/T, L/C
Supply Ability: 500 Pieces/Month
Detailed Product Description
Core: 24 Application: Telecom
Fiber Type: Multi Mode Adapter: Fits All Adapters
Installation: Rack Mount ODF Type: 24 Port Patch Panel
High Light:

optical fiber distribution frame

,

telephone distribution frame

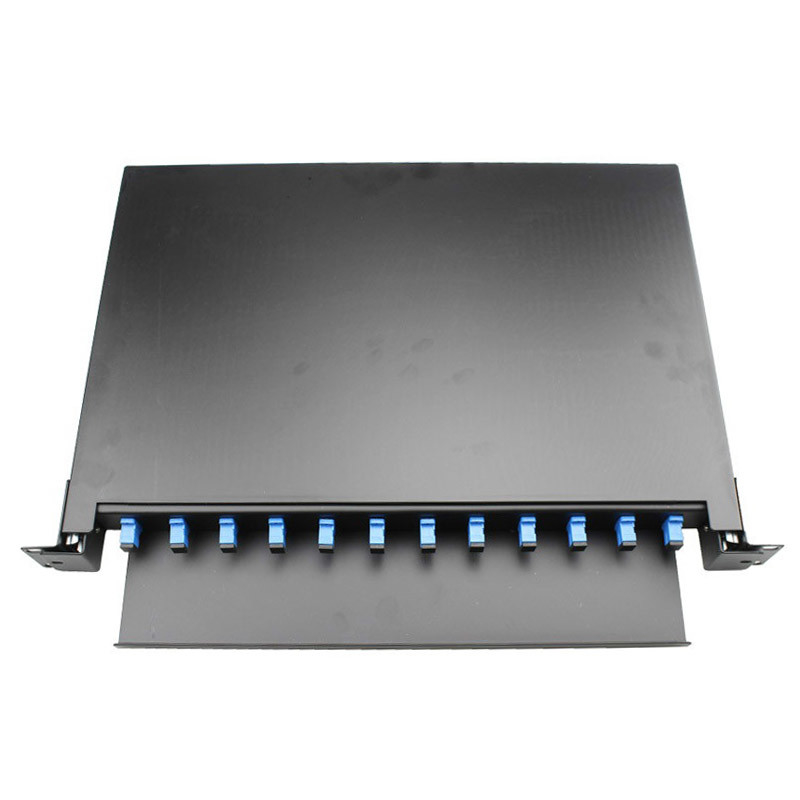

Fully Equipped Metal Rack Mount Patch Panel 24 Port Fiber Distribution Unit



Overview



Rack mount ODF is usually modularity in design with firm structure. It can be installed on the rack with more flexibility according to the fiber optic cable counts and specifications. This kind of optical distribution system is more convenient and can provide more possibilities to the future variations. Most of the rack mount ODF is 19'', which ensures that they can be perfectly installed on to the commonly used standard transmission rack.

ODF is the most popular and comprehensive fiber optic distribution frame which can reduce the cost and increase the reliability and flexibility of fiber optic network during both deployment and maintenance. High density ODF is the trend in telecommunication industry. Selecting an ODF is important and complex which requires full consideration including applications and management. The factors like structure, fiber counts and protection are just the basic elements. ODF which can meet the current requirements and the challenge of future growing and easing of expansion without sacrificing cable management or density can only be selected with repeated comparison and full consideration.



Features



Environment temperature: -25ºC ~ +45ºC
Relative humidity: ≤ 85% (30ºC)
Atmosphere pressure: 70 ~ 106KPa
Insulated Resistance: ≥ 2×10MΩ/500V(DC)
Intensity ≤ 15KV (DC) / 1minno spark-over and no flying arc
Fiber bending radium guaranteed more than 40mm: ≥ 40mm
Application: It is applicable for straight-through connection and diverged connection in aerial layout , duct and direct buried. It can protect fiber
connectors.



Specifications



Operating
Wavelength(nm)
820±40/980±40/
1310±40/1550±40
980&1550±40/
1310&1490&1550±40
Parameter Unit Value
Coupling
Ratio (%)
Insertion Loss (dB) Fiber Type / Hi 780/ Flex 1060/
SMF-28e/ SMF-28e XB
Tap Signal Tap Signal
01/99 19.0-21.0 ≤0.20 18.5-21.5 ≤0.25 PDL dB Typ.:<0.1 Max.:<0.15
03/97 14.6-16.2 ≤0.30 14.5-16.5 ≤0.30 Directivity dB >55
05/95 12.4-13.8 ≤0.35 12.0-14.5 ≤0.45 Return Loss dB >50
10/90 9.70---10.7 ≤0.60 9.70-11.2 ≤0.60 Excess Loss dB Typ.:<0.1 Max.:<0.2
20/80 6.70---7.60 ≤1.15 6.60---7.80 ≤1.15 Pigtail Dia. mm 0.25 /0.9 / 2 / 3
33/67 4.65---5.65 ≤1.70 4.50---5.85 ≤1.80 Pigtail Length cm >100
40/60 3.95---4.30 ≤2.50 3.70---4.70 ≤2.70 Operating Tem. ºC -10~ +70
50/50 2.85---3.30 2.80---3.40 Storage Tem. ºC -40~ +85



fully equipped metal rack mount patch panel 24 port odf
