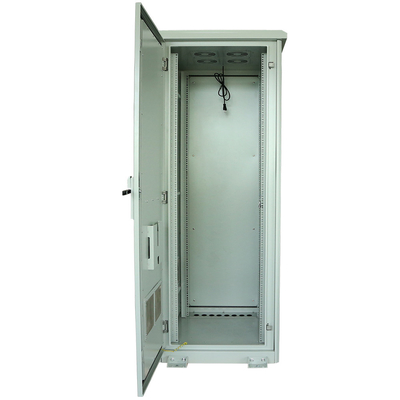

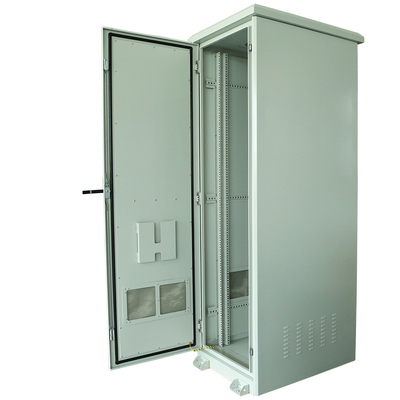

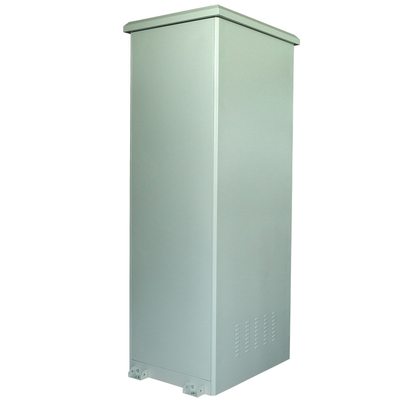

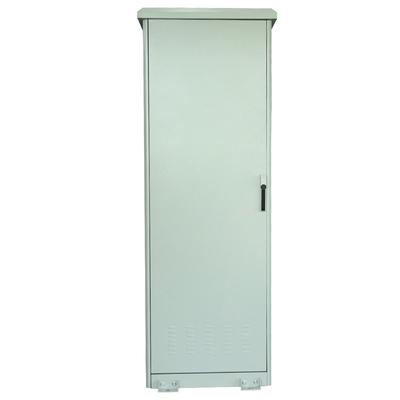

Flat Packing Floor Standing Vented Small Server Rack Cabinet OEM 32U Rack Mount

Flat Packing Floor Standing Vented Small Server Rack Cabinet OEM 32U Rack Mount
Flat Packing Floor Standing Vented Small Server Rack Cabinet OEM 32U Rack Mount Flat Packing Floor Standing Vented Small Server Rack Cabinet OEM 32U Rack Mount Flat Packing Floor Standing Vented Small Server Rack Cabinet OEM 32U Rack Mount Flat Packing Floor Standing Vented Small Server Rack Cabinet OEM 32U Rack Mount

Large Image :  Flat Packing Floor Standing Vented Small Server Rack Cabinet OEM 32U Rack Mount

Product Details:
Place of Origin: China
Brand Name: Unique-Tel
Certification: CE, RoHS
Model Number: Network Cabinet
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: carton box
Delivery Time: within 10 days of payment
Payment Terms: L/C, T/T
Supply Ability: 1000 sets/month
Detailed Product Description
Degree Of Protection: IP65 Loading Capacity: 1500kg
Customized: Available Height: 18U-47U
Width: 600/800mm Depth: 600/800mm
Surface Finish: Powder Coated Color Serial: Ral9004; Ral9005; Ral7035
Type: IP65 Waterproof Outdoor Cabinet Material Thickness: Mounting Profile: 2.0mm, Others: 1.5mm
High Light:

wall mount relay rack

,

enclosed server rack

Flat Packing Floor Standing Vented OEM 32U Rack Mount Server Cabinet



Features



1. Strong and stable framework of cabinet, which has the mounting holes
2. The side panel and rear panel are the double-panel designed, the panels are fixed by the bolt from the inner.
3. Between the inside and outside side panel has the inter space , which provides the channel to ventilate and support the enclosure internal heat exchange, and also can reduce the influence of the sunlight illumination
4. The roof panel has the awning all around stretches out to keep from the rain, the bottom of awning have holes to keep the integrity well ventilated, which guarantees the air exchange.
5. Luxury lock with three points bolted on the front door more security , side panels and rear panels are fixed by screws
6. The bottom have cable entrance with rubber ring
7. The enclosure is the 19" structure, also can install the mounting panel
8. The top loaded with fans to ventilate, two sides panels have the blind holes to output heat



Our Advantages



1. 100% Manufacturer.

2. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.

3. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.

4. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.

5. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.

6. On time delivery rate higher than 95%.



Main Structure



1. Steel rear door

2. specer(for 800mm width)

3. Fan tray

4. Mounting profile

5. Blanking panel

6. Mounting angle

7. Bottom

8. Castor

9. Cable entry plate

10. Top

11. Side panel

12. Frame

13. Vertical Cable management

14. Front door

15. Fixed shelf

16. Feet



Specifications



Standard Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491, PART7, ETSI Standard
Material SPCC quality cold rolled steel; Mounting profile: Thickness:2.0mm; Others:1.5mm;
Loading Capacity Static loading:1500kg
Degree of protection IP65
Surface Finish Degreasing; Pickling; Phosphating; Powder Coated
Product Specification 22U-42U; Width: 600mm, 800mm; Depth: 600mm, 800mm



Type IP65 Waterproof Outdoor Cabinet
Color Serial Ral9004; Ral9005; Ral7035
Height 18U-47U
Degree of protection IP65
Material Thickness Mounting Profile: 2.0mm, Others: 1.5mm
Loading Capacity 1500kg
Surface Finish Degreasing, Pickling, Phosphating, Powder Coated
Customized Available
Width 600/800mm
Depth 600/800mm
