Black / Grey 2 Post Relay Rack , 24U / 45U Strong Steel Server Rack Cabinet

China Wuhan Unique Mechanical And Electrical Equipment Co.,LTD. certification
These guys are really professional at trading as well as networking stuffs, saved me a lot of energy and money.

—— John Karanja

Nice working with you, flawless product, considering the next deal.

—— Michael Morrison

I'm Online Chat Now

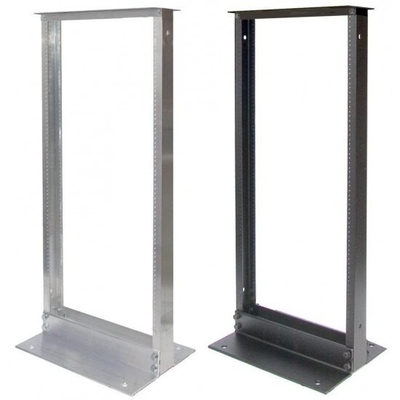

Black / Grey 2 Post Relay Rack , 24U / 45U Strong Steel Server Rack Cabinet

Black / Grey 2 Post Relay Rack , 24U / 45U Strong Steel Server Rack Cabinet
Black / Grey 2 Post Relay Rack , 24U / 45U Strong Steel Server Rack Cabinet Black / Grey 2 Post Relay Rack , 24U / 45U Strong Steel Server Rack Cabinet

Large Image :  Black / Grey 2 Post Relay Rack , 24U / 45U Strong Steel Server Rack Cabinet

Product Details:
Place of Origin: China
Brand Name: Unique-Tel
Certification: CE, RoHS
Model Number: Network Cabinet
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: carton box
Delivery Time: within 10 days of payment
Payment Terms: L/C, T/T
Supply Ability: 1000 sets/month
Detailed Product Description
Status: In Stock Size: 24U, 45U
Color: Black,Grey Width: Universal 19 Inch
Standard: ANS/EIA RS-310-D,IEC297-2 Construction: Thickened SPCC Steel
High Light:

open frame server rack

,

enclosed server rack

2 Post Relay Rack Network Room Equipment 24U 45U Strong Steel Construction



Overview



Our 2 Post Telco Rack is also commonly called a relay rack or simply telco rack. Two post racks are primarily used to install communication and network equipment. Computing equipment can be installed in 2post server racks with the use of specialized rail kits. These rail kits allow the equipment to be installed in either a center mount or a flush mount configuration. The standard rail kits can be used to install computing equipment in a two post server rack with the addition of a relay rack conversion kit.



Features



2 Post Data Racks are manufactured using two different methods - the highest quality server rack posts are extruded. This means the aluminum is formed and not bent. The second method used to make 2 post open frame racks is to bend flat sheets of aluminum or steel. These open frame relay racks are of lesser quality than the extruded 2 post relay racks. All of our 45U and 24U server racks are made from extruded aluminum and are the highest quality available. More info on 2 post racks.

All of our open frame relay racks are knock down(flat-packed) and ship ready-to-assemble, making it easier to handle and store until needed.

We promise you’re going to have a great experience. We’ll help you figure out what you need, get it to you fast, and we’ll stand behind it.



12U rack for server, PC, NAS

  • Adjustable depth from 19 - 29" (483 - 737 mm)

  • Works with any 19" equipment

  • Compatible with all Dell, HP, IBM, Apple servers

  • EIA square hole mounting surface

Fits under most desks, tables

  • Standard casters included

  • Heavy duty casters, handles are optional

  • Front, rear covers are optional

  • U Markings labeled

24U-45U of Rackable Space

  • Mounting Depth Range: 3" Side Channels

  • 19" Mounting Width (RELAY-RACK-45-B-12-23 is 23" Wide)

  • Weight capacity, 1000 lbs (453.6 kgs)

  • High strength, 6005-T5 aluminum extrusion

10-32 or 12-24 Threaded Holes

  • Front & Rear floor mounting holes

  • Must be anchored to floor, wall or ceiling

  • Clear or black, textured powder coat





Specifications



Rack type 2 post rack (telco rack), open frame
Rack internal width Eia 19" standard rack
Hole type 10-32 or 12-24 threads
Tech notes High strength, 6005-t5 aluminum extrusion
floor mounting holes front and rear.
Use 1/2" bolts with a large washer to mount to the floor.
These relay racks must be anchored to the floor, wall or ceiling.
Finish Clear or black, textured powder coat
Rack post shape C shape
Assembly notes 3/4" wrench required
Mounting depth range 3" side channels (76.2 mm)
Rack outside dimensions Footprint: width x depth
20.25" (514.4 mm) x 15" (381 mm)
Rack mount depth 3" side channels (76.2 mm)
Rohs compliant Yes



Black / Grey 2 Post Relay Rack , 24U / 45U Strong Steel Server Rack Cabinet 0
