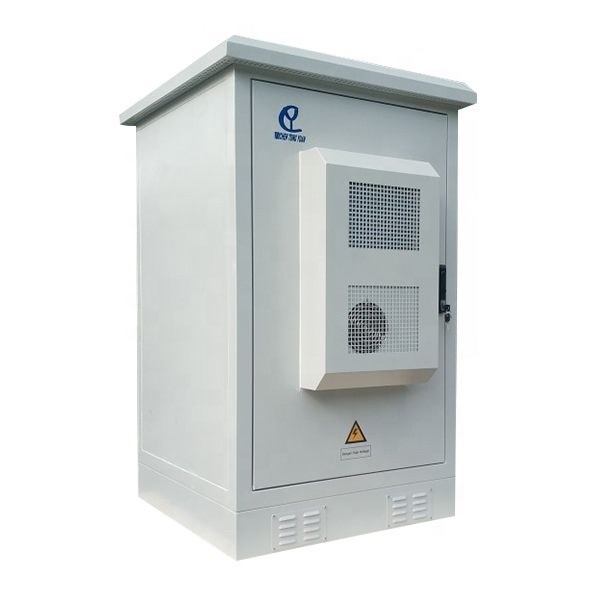

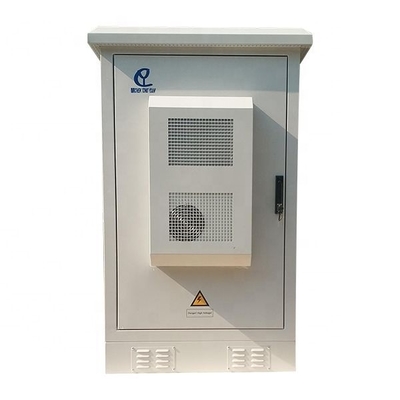

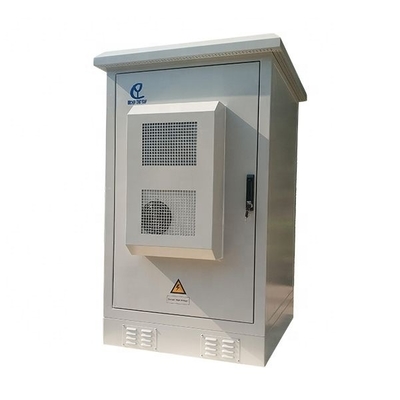

48v Air Conditioning Cooling Telecom Power Cabinet High Protection Rate

48v Air Conditioning Cooling Telecom Power Cabinet High Protection Rate
48v Air Conditioning Cooling Telecom Power Cabinet High Protection Rate 48v Air Conditioning Cooling Telecom Power Cabinet High Protection Rate 48v Air Conditioning Cooling Telecom Power Cabinet High Protection Rate

Large Image :  48v Air Conditioning Cooling Telecom Power Cabinet High Protection Rate

Product Details:
Place of Origin: China
Brand Name: Unique-Tel
Certification: CE, RoHS
Model Number: Network Cabinet
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: carton box
Delivery Time: within 10 days of payment
Payment Terms: L/C, T/T
Supply Ability: 1000 sets/month
Detailed Product Description
Brand Name: OEM MOQ: 1Piece
OEM: Support Height: 6U, 15U,18U TO 47U
Model: Wall/Standing Cabinet Material: Aluminum/stainless Steel
Type: 19 Inches Network Cabinet Style: Air Conditioner Outdoor Cabinet
High Light:

wall mount relay rack

,

enclosed server rack

48v Air Conditioning Cooling Telecom Power Cabinet High Protection Rate



Description



A) Outdoor Cabinet outer size: 1200*800*800mm H*W*D;

B) Ourdoor Cabinet internal size: 1000*750*750mm H*W*D;

C) Outdoor Cabinet type: 1 to 3 unit 1 to 3 compartment, front door, assembling structure, double layer, heat insulation cotton thickness 20mm;

D) Outdoor Cabinet material: galvanized sheet, the thickness of the outer plate 1.5mm, the thickness of the inner plate 0.8mm, load-bearing part of 2.0mm;

E) Thermal insulation performance: thermal conductivity <0.472W/ (m2.k);

F) Equipment layer frame: 19 inches, 4 pairs of supporting bar;

G) Cabinet base: 150mm high, 2.0mm thick;

H) Feed line: in and out with Φ 50*5;

I)Anti theft design: embedded door and hinge, 3 point type of anti-theft lock;

J)Protection level: IP55 (dust, waterproof).



Features



High reliability, maintenance-free, fast assembly, suitable for harsh environment

High integration, small footprint, short construction period, reduce the construction cost

Improved thermal design, efficient energy saving, effectively extending the battery life

Support for fast assembly, ready for the summit, multi-scene roof installation

Dynamic environment monitoring system, full alarm signal detection, real-time alarm information reported

1) Application scenarios: outdoor cabinet cooling;

2) Cooling capacity: 500W,800W,1000W,1500W etc;

3) Energy efficiency ratio: 3;

4)Input voltage:110V 220V 230V 240V etc;

5) Temperature control mode: intelligent temperature control, can be automatically adjusted according to the cabin temperature;

6) Protection level: IP55;

7) Communication mode: RS485.



AC power distribution unit



Input AC2P63A*2+B level lightning protection (60KA)
City Electric, oil machine mechanical interlock
Output 32A*2*16A*3+ maintenance socket (10A)



Specifications



Standard ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI Standard
Material SPCC quality cold rolled steel/galvnized metal
Thickness:mounting Profile:2.0mm,Others:1.2mm
Tempered glass Thickness:5mm
Loading Capacity Static loading: different
Degree of protection IP65/55
Surface finish Degreasing,Pickling,Phosphating,Powder Coated
Product specification 4U 6U 9U 12U 18U 32U 42U
Width 600mm,800mm
Depth 600mm,800mm,900mm,1000mm,1200mm
color Ral9004; Ral9005; Ral7035



Type 19 inches network cabinet
Model Wall/Standing cabinet
Convenience upper and lower convers for free cabling
OEM Support
Height 6U, 15U,18U TO 47U
Back door Material Metal/Mesh
MOQ 1Piece
Brand Name OEM
Model Number UNQ-01312
Product name 48v air conditioning cooling telecom power cabinet
Style air conditioner outdoor cabinet
Products Status Stock
material Aluminum/stainless steel
Surface finish Powder Coating
Structure Double layer
Degree of protection IP65/IP55
