37RMU Full Server Rack , Field Reversible Door Hinges Locking Server Cabinet

37RMU Full Server Rack , Field Reversible Door Hinges Locking Server Cabinet
37RMU Full Server Rack , Field Reversible Door Hinges Locking Server Cabinet

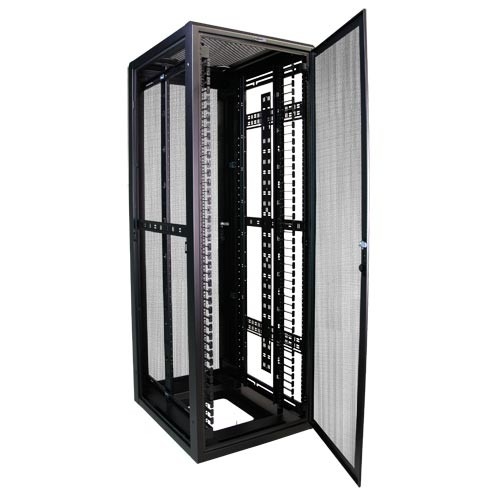

Large Image :  37RMU Full Server Rack , Field Reversible Door Hinges Locking Server Cabinet

Product Details:
Place of Origin: China
Brand Name: Unique-Tel
Certification: CE, RoHS
Model Number: Wall Mount Cabinet
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: within 10 days of payment
Payment Terms: T/T, L/C
Supply Ability: 1000 pieces per month
Detailed Product Description
Width: 29" Depth: 36"
Height: 72" Capacity: 37 RMU
Certification: CE/RoHS Protection: Server Rack IP20
Application: Data Service Center Feature: Floor Standing Server Cabinet
High Light:

wall mount server cabinet

,

locking server cabinet

37RMU Fully Welded Field Reversible Door Hinges Network Server Cabinet



Overview



Enhanced Series Enclosures provide a feature-rich enclosure for housing telecommunication equipment, computer hardware, LAN equipment and other electronic equipment. The Enhanced Series modular design accommodates initial installation and future additions in today's progressive network environment. Enhanced Enclosure shipments are the quickest in the industry. When it's delivery that really counts, we can provide the fit, the quality and the service you deserve - on time.

8 week shipping time on custom changes

Custom colors available upon request (Additional charge may apply. Please allow up to an additional 4 week ship time)

Custom configurations assembles in 24-48 hours

Accessories installed where you specify

No additional freight charges for installed options

Shelves placed where you specify

Mounting rails located where you specify

Cable Management installed where you specify

Power outlet strips installed where you specify

No additional cost for drop ship

All enclosures have a Serial Number



Features



• Dimensions: 72” x 29” x 36”

• Shipping Weight: 350 lbs

• Rack Spaces: 37 U 19" 310-E Compliant

• UL Listed: UL60950-1 Standard for IT & Communications Equipment, Cabinet Enclosures and Rack Systems

• Weight Capacity: 1500 lbs. on levelers, bolted to floor, or on heavy duty casters

• 37 RMU, 19” EIA 310-D Compliant

• Fully Welded Steel Construction #16 Gauge Steel

• Universal M6 Cage Nut Rails Standard (10/32 Tapped Rails Available) #12 Gauge Steel

• Rack Mounting Hardware Included

• Rails are Infinitely Adjustable, Front to Rear (Max. Rail Spacing is Cabinet Depth minus 2 inches)

• Rails with RMU Markings

• TRC (True Rail Count) Rails This certifies that the number of RMU are true and all accessible within the door opening.

• Total of Three 10/32 x 1.5” Copper Plated Grounding Studs (One in bottom, two in top)

• Durable Powder Coat Finish

• Field Reversible Door Hinges (No Additional Hardware Required)

• Optional Features:

• Cable Lacing Bars

• Ganging Hardware (No Tools Required)

• Anti-tip Legs

• Variety of Top, Bottom, & Side Panels



Specifications



HEIGHT

WIDTH

DEPTH

RU

PANEL WIDTH

A

ANCHOR WIDTH

ANCHOR DEPTH

REAR OPENING

TOTAL AREA

RO1

RO2

RO3

RO4

72"

29"

36"

37

21.19"

12

14"

31.95"

73.4in²

16.74"

3.32"

4.82"

8.88"



37RMU Full Server Rack , Field Reversible Door Hinges Locking Server Cabinet 0
