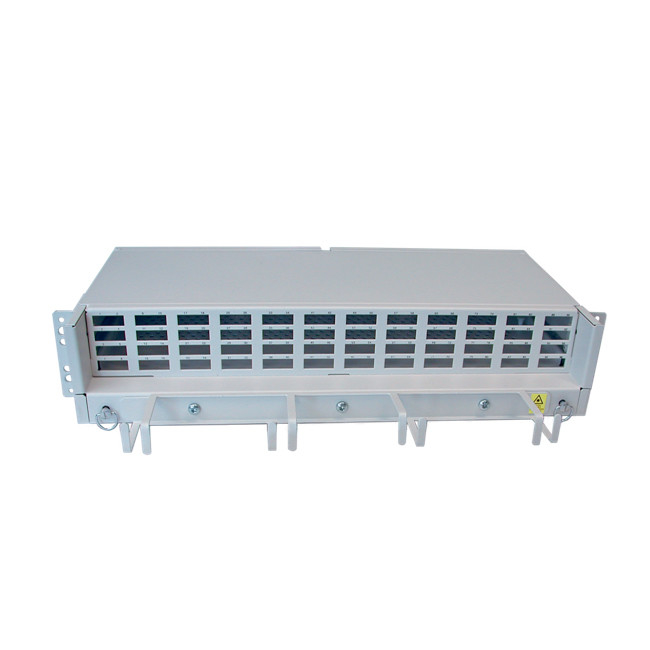

2U 19 Inch Pre Terminated ODF Optical Distribution Frame Kit 250mm Depth

2U 19 Inch Pre Terminated ODF Optical Distribution Frame Kit 250mm Depth
2U 19 Inch Pre Terminated ODF Optical Distribution Frame Kit 250mm Depth

Large Image :  2U 19 Inch Pre Terminated ODF Optical Distribution Frame Kit 250mm Depth

Product Details:
Place of Origin: China
Brand Name: Unique-Tel
Certification: CE RoHS
Model Number: PXX06
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: Negotiation
Packaging Details: carton packaging
Delivery Time: 5 work days
Payment Terms: T/T, L/C
Supply Ability: 1000 Pieces/Month
Detailed Product Description
Height: 2U Depth: 250mm
Return Loss: 50dB Insertion Loss: ≤0.3dB
Fiber Count: Up To 96 Fibers Installation: 19" Rack Mount
Function: Splice And Distribution Adapter: Fits All Types Of Adapters
High Light:

power distribution frame

,

telephone distribution frame

2U 19 Inch Pre-Terminated ODF Panel Fiber Optic Distribution Panel Kit



Application



This unit is intended for termination of field installed optical fiber cables to the ODF panel. The unit is typically used for sites where the incoming cable (up to 96 fibers) allows to be terminated directly in the ODF. A kit is available to double the capacity for typically 144 / 192 fiber cables by mounting two ODFs together. The ODF supports a wide selection of connector and incoming cable options. This type of ODF is also available in pre-terminated versions for more efficient installations (see separate prod data sheet).



Features



2U for 19” or ETSI mount

Small depth 250 mm (within ETSI)

Up to 96 fibers (using 48 x SC duplex cut out slots)

Front serviced

Supports SC, FC, ST and LC adapters



Design



The unit is suitable for the installation of pigtails or pre-connectorized cables. Internal fiber guides and holders are included.

A horizontal patch guide can be integrated within the 2U-ODF and will not further increase the height of the unit, giving high functionality in a very small space.

The termination unit comprises a chassis, a drawer with front panel, a combined cable entrance/strain relief, two angled mounting brackets and a cover. All done in a modular way for front serviced time saving installations and maintenance.

The mounting brackets fit the chassis in three different locations for various mounting depth.

By turning the brackets the unit will fit either 19“ or ETSI rack. The brackets also permit wall mounting.

The front panel is forward foldable to facilitate maintenance (cleaning etc.) of the connectors located inside.

The optical performance of the ODF connections used in the Unique-Tel systems is ensuring the right quality and stability over time.



Specifications



The termination unit can be fitted with cable entrances for up to 4 cables with maximum outer diameter of 20 mm, two from each side, located at the rear.

Material

The termination unit is made of painted Alum-zinc sheet steel. All products are in accordance with RoHS

Size, Weight and Color

Weight: 5 kg

Dimensions excl. brackets

(HxWxD): 86 x 440 x 249 mm

Color: Coral white



Ordering Information



The different versions and configurations of the termination unit type are shown in the chart below. Adaptors are not included. For installations of more than 72 fibers it is recommended to fuse using ribbon-technology or consider pre-terminated ODF as an alternative. “Blind plugs” are available to cover empty adapter slots in case of adaptation to lower numbers of connections.



Product number Cut out type No. of slots in the front Maximum No. of fiber connections
PXX06-1 SC-duplex 24 48
PXX06-2 SC-duplex 48 96
PXX06-3 LC-Quadruplex 24 96
PXX06-4 LC-Quadruplex 48 192
PXX06-5 ST or FC (D-shape) 48 48
