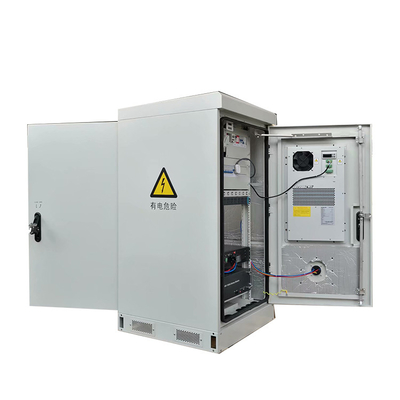

19 Inches 42U Outdoor Battery Small Network Rack Cabinet IP65 Air Conditioner

19 Inches 42U Outdoor Battery Small Network Rack Cabinet IP65 Air Conditioner
19 Inches 42U Outdoor Battery Small Network Rack Cabinet IP65 Air Conditioner

Large Image :  19 Inches 42U Outdoor Battery Small Network Rack Cabinet IP65 Air Conditioner

Product Details:
Place of Origin: China
Brand Name: Unique-Tel
Certification: CE, RoHS
Model Number: Network Cabinet
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: carton box
Delivery Time: within 10 days of payment
Payment Terms: L/C, T/T
Supply Ability: 1000 sets/month
Detailed Product Description
Service: OEM ODM External Size: 60*60*200 Cm
Internal Capacity: 42U 19" RACK Type: Network Cabinet
Color: RAL7035 Or Customized Product Name: Outdoor Telecom Cabinet
Cooling System: Cabinet Air Conditioner/TEC/Heat Exchanger Structure: Double Skin With Heat Insulation Material Filled
High Light:

wall mount relay rack

,

enclosed server rack

19 Inch Rack 42U Outdoor Battery Cabinet IP65 Air Conditioner



Features



Features with the following specifications:

High reliability, maintenance-free, fast assembly, suitable for harsh environment

High integration, small footprint, short construction period, reduce the construction cost

Improved thermal design, efficient energy saving, effectively extending the battery life

Support for fast assembly, ready for the summit, multi-scene roof installation

dynamic environment monitoring system, full alarm signal detection, real-time alarm information reported



Parameters


1 cabinet outer size CY H*W*D 2030*900*900mm
2 cabinet inner size H*W*D 1800*800*800mm ,internal capacity:19"*42U
3 cabinet type 1unit1cabin,front door,assembly structure,double layer
4 Material

left ,right and back part are color steel plate,other parts are Galvanization plate ,insulation thickness 45mm,insulation cotton material is PEF

5 Thermal insulation performance Thermal insulation performance:Thermal Conductivity<0.472W/(m2.k)
6 equipment rack equipment rack:standard 19"rack,4 pairs Tropsch Article,3 floors
7 cabinet base 150mm H,thickness 2.0mm
8 cable entry under bottom in and out Φ50*5
9 security design Embedded door, embedded hinges, 3-point security lock
10 protection level IP55



Product List



1 application outdoor cooling
2 cooling capacity: 1500W
3 EER(energy efficiency ratio) 3.0
4 INPUT VOLTAGE 110V 220V
5 Temperature control Smart Thermostat,Can be automatically adjusted according to cabin temperature
6 protection level IP55
7 way of communication

RS485



Specifications



Type Network Cabinet
External Size 60*60*200 cn
Product name Outdoor telecom cabinet
Cooling system Cabinet air conditioner/TEC/Heat Exchanger
Internal capacity 42U 19" RACK
Color RAL7035 or customized
Service OEM ODM
Structure double skin with heat insulation material filled



19 Inches 42U Outdoor Battery Small Network Rack Cabinet IP65 Air Conditioner 0

19 Inches 42U Outdoor Battery Small Network Rack Cabinet IP65 Air Conditioner 1
