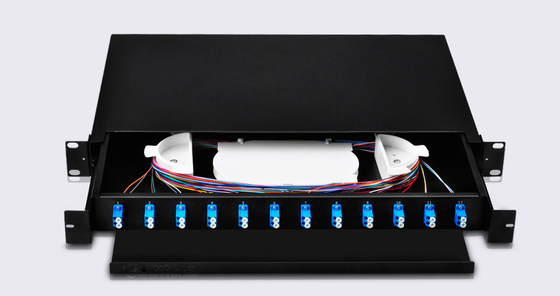

12-24 Ports Indoor Rack Mounted Fiber Distribution Frame ODF Terminal Box

12-24 Ports Indoor Rack Mounted Fiber Distribution Frame ODF Terminal Box
12-24 Ports Indoor Rack Mounted Fiber Distribution Frame ODF Terminal Box

Large Image :  12-24 Ports Indoor Rack Mounted Fiber Distribution Frame ODF Terminal Box

Product Details:
Place of Origin: China
Brand Name: Unique-Tel
Certification: CE RoHS
Model Number: PXJ0918
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: negotiable
Packaging Details: carton package
Delivery Time: within 10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs/month
Detailed Product Description
Features: Standard Size For In 19'',23''D Frame Temperature: -25 - 55°C
Packing: Carton Box Atmosphere Pressure: 70-106Kpa
Type: Fixed & Sliding Type Material: Cold-rolling Steel
Insulating Resistance: ≥2x104 MΩ/500VDC Adapter: Simplex And Duplex FC, LC, SC, ST
Mode: 48 Port FC Patch Panel Fiber Optic
High Light:

optical fiber distribution frame

,

power distribution frame



1u 12-24 Ports Indoor Rack Mounted Fiber Optic Distribution Frame ODF Terminal Box



Description



Fiber optic patch panel is also called fiber distribution panel. Its main function is to terminate the fiber optic cable and provide connection access to the cable’s individual fibers. Fiber patch panels are termination units, which are designed to provide a secure, organized chamber for housing connectors and splice units. Fiber patch panels are available in rack mounted or wall mounted. Both types can house, organize, manage and protect fiber optic cable, splices and connectors. Rack mount panels is usually 19" or 23" universal width. The height of patch panel can be 1u, 2u, 3u, 4u, 6u, etc. The opening of the optical fiber patch panels can be slidable or fixed or revolving. Wall mount patch panel is more customized, it can be any structure and dimension. And the patch panels can be used for indoor or outdoor application.

Slidable Rack-mount Fiber Optic Distribution Frame has aluminum sliding fittings with self-locking functions prevent the drawer from falling when moved; 19-inch rack mount for ST, SC, LC, MTRJ, FC adapters. The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.



Features



1,Standard size, light weight and reasonable structure

2,Slide out drawer for easy cable management

3,Suitable for ribbon and single fiber

4,Compact design for space saving

5,Various panel plate to fit different adapter interface

6,Front mark on the plate is easy for identification and operation

7,Easy for management and operation



Application



1, Telecommunications subscriber loop

2, Fiber to the home (FTTH)

3, LAN/WAN

4, CATV



Data Sheet



Fiber Quantity Height Dimension(cm) Weight(Kg)
12 1U 45x 32x4.45 4
24 1U 45x 32x4.45 4.2
48 2U 48x32x8.9 4.31
96 2.5U 48x32x11 5.05
144 4U 48x32x17.8 7.91



Specifications



Type Fixed & Sliding Type
Adapter Simplex and duplex FC, LC, SC, ST
Mode 48 port FC patch panel fiber optic
Features Standard size for in 19'',23''D frame
Atmosphere pressure 70-106Kpa
Insulating resistance ≥2x104 MΩ/500VDC
Environmental temperature -25 - 55°C
Material Cold-rolling steel
Packing carton box
Type

Slide out drawer



12-24 Ports Indoor Rack Mounted Fiber Distribution Frame ODF Terminal Box 0
