Product Details:
Payment & Shipping Terms:
|
| Color: | Black | Jacket Sheath: | HDPE,MDPE |
|---|---|---|---|
| Fibre Optical: | Single Mode | Packing: | Wooden Drum |
| Core: | G652D, G657A1, G657A2 | Jacket: | PVC LSZH LSOH PE HDPE |
| Layout Ways: | Underground/buried/pipeline | Certification: | CE/ROHS/ISO9001/TUV/ROSH |
| High Light: | fiber optic ethernet cable,ftth aerial drop cable |
||

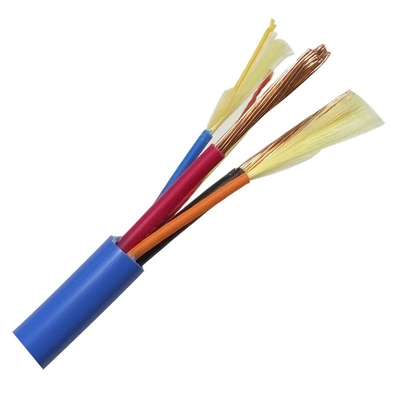

OPLC Hybrid Optical Fiber Power Cable 1-12 Core Fiber Optic Cable
Characteristic of hybrid fiber cable
1. The composite cable provides the equipment electricity and single transmission, and improves central monitoring and maintenance for equipment power.
2. To reduce the coordination and maintenance of power supply.
3. Combines optical fiber (multimode or single mode) and copper conductor for DC power in a single light weight aluminum corrugated cable.
Hybrid Fiber Cable Parameter
| Cable Type | Fiber Counts | Cable Diameter(mm) | Weight(KG/KM) | Tensile Strength(N) | Crush Resistance(N/100mm) | ||
| Long term | Short term | Long term | Short trem | ||||
| GDTS- 2*1.5 | 2-24 | 11.2 | 132 | 600 | 1500 | 300 | 1000 |
| GDTS-2*2.5 | 2-24 | 12.3 | 164 | 600 | 1500 | 300 | 1000 |
| GDTS- 2*4.0 | 2-24 | 13.4 | 212 | 600 | 1500 | 300 | 1000 |
| GDTS-2*5.0 | 2-24 | 14.6 | 258 | 600 | 1500 | 300 | 1000 |
| GDTS- 2*6.0 | 2-24 | 15.4 | 287 | 600 | 1500 | 300 | 1000 |
| GDTS-2*8.0 | 2-24 | 16.5 | 350 | 600 | 1500 | 300 | 1000 |
Note:
1. 2*1.5/2*2.5/2*4.0/2*6.0 is the number of specification of the conductor.
2. Different conductor specification can be make as required.
3. Different fiber specification can be make as required.
Our Service
1. Free samples are available
2. Fast Delivery, normally 5 Days after payment
3. Strictly quality control system
4. Quality Certificate ISO9001 is available
Application
1. hybrid of fiber cable Suitable the filed where needs to transmit light single and electric single.
2. Mobile operator deploying an RRU architecture to standardize the RRU.
Specifications
| Jacket | PVC LSZH LSOH PE HDPE |
| Certification | CE/ROHS/ISO9001/TUV/ROSH |
| Color | Black |
| Packing | Wooden Drum |
| fiber optical core | G652D, G657A1, G657A2 |
| Layout ways | underground/buried/pipeline |
| Fibre optical | Single mode |
| Jacket sheath | HDPE,MDPE |
