Part No.: | 241115.100 | Efficiency: | Typical 92% |
---|---|---|---|
Output Power: | 2000 W At Nominal Input | Maximum Current: | 41.7 Amps At 48 VDC And Nominal |
DC Output Voltage: | 53.5 VDC (adj. Range: 43.5-57.6 VDC) | AC Input Voltage: | 85-300 VAC (Nominal 185 – 275 VAC) |
High Light: | Flatpack2 Eltek Valere Rectifier,48V 2000W Eltek Valere Rectifier,241115.100 |

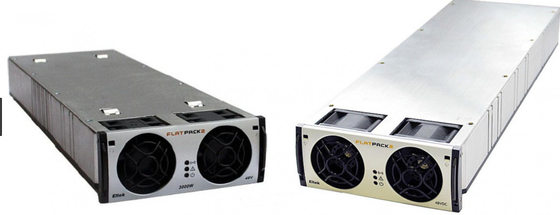

Rectifier Modules Flatpack2 Eltek Valere 48V 2000W Flatpack2 48/2000
Technical Specification:
AC Input:
Voltage :85-300 VAC (Nominal 185 – 275 VAC)
Frequency - 45 to 66Hz
DC Output:
Voltage: 53.5 VDC (adj. range: 43.5-57.6 VDC)
Output Power : 2000 W at nominal input
Maximum Current: 41.7 Amps at 48 VDC and nominal
Output Protection: Overvoltage shutdown, Short circuit proof, High temperature protection
Efficiency:Typical 92%,
Operating Temp.:-40 to +75°C (-40 to +158°F)
MTBF :> 350, 000 hours
Mechnical Specification:
Dimensions- 109 x 41.5 x 327mm (wxhxd)
Weight- 1.9 kg (4.19lbs)
Ordering Information:
Part No.: 241115.100 Flatpack2 Rectifier Module 48/2000
