Smart PDU Power Distribution Unit Outlet Metered Managed Network Grade

Smart PDU Power Distribution Unit Outlet Metered Managed Network Grade
Smart PDU Power Distribution Unit Outlet Metered Managed Network Grade

Large Image :  Smart PDU Power Distribution Unit Outlet Metered Managed Network Grade

Product Details:
Place of Origin: China
Brand Name: Unique-Tel
Certification: CE RoHs
Model Number: Smart-PDU
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: Negotiation
Packaging Details: 1 pcs per box, 10 boxes per carton
Delivery Time: 1 week
Payment Terms: T/T, L/C
Supply Ability: 1000 Pcs/Day
Detailed Product Description
Max. Current: 16A Rated Voltage: 250V AC
Max. Power: 4KW Ports: 8 Sockets
Output Type: IEC C13 Lead Wire: 3m H05VV-F 3G1.5mm
High Light:

rack power distribution unit

,

data center power distribution unit

Smart PDU Power Distribution Unit Outlet Metered and Managed Network Grade PDU



Unique-Tel's Smart PDU includes following types,

  • Input Metered PDU-Provides whole capacity consumed for whole PDU.

  • Outlet Metered PDU-Provides capacity consumed for each outlet.

  • Monitered PDU-Monitering whole PDU data.

  • Outlet Monitered PDU-Monitering PDU data for each outlet.

  • Outlet Switched PDU-Auto run and remote control for each outlet.

  • Outlet Monitered & Switch PDU-Monitering and remote control for each outlet.



Introduction



In addition to delivering electrical power, metered rack PDUs provide information about the power that is being consumed. It may be as simple as the voltage and the power being consumed by the PDU in total or it may provide much more power information and breakdown that information by each individual outlet. There is a wide range of PDUs that could fall under the description of a metered PDU.



The metered PDU's with local input current meter allow network engineers to utilize the PDU's True RMS power monitor to precisely measure the current (in A) that the IT devices are drawing from the power circuit. This allowing the engineer to load each circuit to its maximum capacity without the danger of overloading causing possible failure.





Some power information that could be provided includes the following:

  • Current (A)

  • Voltage (V)

  • Actual power (kW)

  • Apparent power (kVA)

  • Kilowatt-hour (kWh)

  • Power factor

  • PDU circuit breaker current and status

  • Line current (for three-phase PDUs)



Specifications



Branch Monitoring

None

Branch Overcurrent Protection

5 kAIC

Branch Overcurrent Protection Type

Circuit Breaker 2-pole

Dual Input

No

High Retention Outlets

Yes

Input Current Display

Auto-Orient

Input Monitoring

Current (A)

Locking Outlets

Yes

Max Operating Temperature

60 °C

Fast Movers

No

Mounting

0U Vertical

Outlet Monitoring

None

PDU Platform

None

Mounting

0U Vertical

Outlet Monitoring

None

PDU Platform

None

Power Pivot Input

Yes

Product Height (inch)

60

Product Height (mm)

1524

Product Max Depth (inch)

2.25

Product Max Depth (mm)

58

Product Nominal Depth (inch)

2.25

Product Nominal Depth (mm)

58

Product Width (inch)

1.75

Product Width (mm)

45

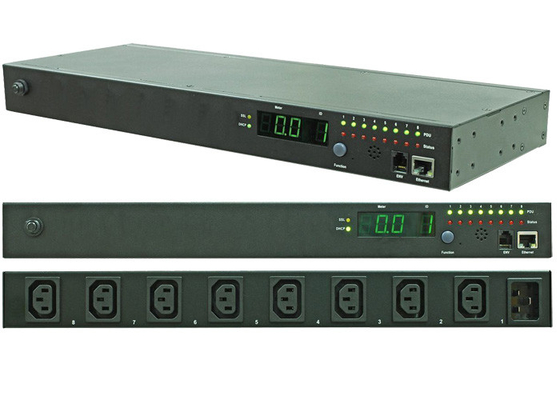

Product Picture



Smart PDU Power Distribution Unit Outlet Metered Managed Network Grade 0

Smart PDU Power Distribution Unit Outlet Metered Managed Network Grade 1

Smart PDU Power Distribution Unit Outlet Metered Managed Network Grade 2
