Universal Sockets Basic PDU Power Distribution Unit Rack Mount Power Strip

Universal Sockets Basic PDU Power Distribution Unit Rack Mount Power Strip
Universal Sockets Basic PDU Power Distribution Unit Rack Mount Power Strip Universal Sockets Basic PDU Power Distribution Unit Rack Mount Power Strip Universal Sockets Basic PDU Power Distribution Unit Rack Mount Power Strip Universal Sockets Basic PDU Power Distribution Unit Rack Mount Power Strip

Large Image :  Universal Sockets Basic PDU Power Distribution Unit Rack Mount Power Strip

Product Details:
Place of Origin: China
Brand Name: Unique-Tel
Certification: CE RoHs
Model Number: BASIC-PDU
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: Negotiation
Packaging Details: 1 pcs per box, 12 boxes per carton
Delivery Time: 1 week
Payment Terms: T/T, L/C
Supply Ability: 1000 Pcs/Day
Detailed Product Description
Currant: 16A Rated Voltage: Max. AC 250V
Max. Power: 4000W Frequency: 50-60 Hz
Output Type: Universal Lead Cable: 3m
High Light:

rack power distribution unit

,

remote power distribution unit

Universal Basic PDU Power Distribution Unit Data Cabinet Power Supply Strip



Introduction



BASIC PDU has simply come to mean a PDU which is not networked.



A rack PDU is a power distribution unit designed to fit into a server rack in either a vertical (0U) or horizontal (1U or more) position. You can basically think of them as industrial-grade power strips that have the potential to power multiple servers. Basic rack PDUs provide power to the IT equipment without any advanced features such as metering, monitoring, or remote access functionality.



Main Features

  • Low cost power distribution
  • Horizontal or vertical mounting
  • A variety of inputs and outputs: 120V, 208V Single Phase, 208V 3-Phase
  • Varying power capacities from 15 amps to 50 amps


Basic PDU Electrical properties

  • Voltage:100-120VAC, 100-240VAC, 200-240VAC,200-250VAC
  • Current:10A-50A Max.
  • Power:2KW-10KW
  • Frenqucy:50-60Hz



Basic PDU Available Standard

  • United States Standard
  • German Standard
  • Italian Standard
  • Italian Universal Standard
  • UK Standard
  • French Standard
  • Austrilian Standard
  • China Standard
  • IEC Standard (IEC320C19)
  • Universal Standard



Basic PDU Available Plug and Socket

  • UK
  • IEC C19/C20
  • IEC C13/C14
  • US
  • AUS
  • CN
  • SCHUKO
  • UNIVERSAL



Basic PDU Available Lead Cable Length

  • 2-3.5m
  • Customized



Specifications



Nominal Input Voltage 100-120 VAC 100-240 VAC 100-240 VAC
Maximum Input Current 20A Max 20A Max 16A Max
Input Frequency 50-60 Hz 50-60 Hz 50-60 Hz
Input Connection IEC-320 C20 IEC-320 C20 IEC-320 C20
Input Power IEC-320 C19 / NEMA L5-20P or NEMA 5-20P IEC-320 C19 / NEMA L6-20P IEC-320 C19 / IEC-320 C20
Outlet Type (12) NEMA 5-20R (12) IEC 320 C13 (12) IEC 320 C13
Maximum Output Current (Outlet) 20A Max 15A Max 10A max
Maximum Output Current (Bank) 20A Max 20A Max 16A max
Maximum Output Current (Total) 20A Max 20A Max 16A max
OPD (Overcurrent Protection Device) Yes Yes Yes
Physical Properties
Dimensions (L x W x H) 48.80 x 4.40 x 4.50 cm 48.80 x 4.40 x 4.50 cm 48.80 x 4.40 x 4.50 cm
Weight 0.88 kg 0.88 kg 0.88 kg
Power Cord Length 3m 3m 3m
Environmental
Temperature (Operating / Storage) 0 – 40°C / -20 – 60°C* 0 – 40°C / -20 – 60°C* 0 – 40°C / -20 – 60 °C*

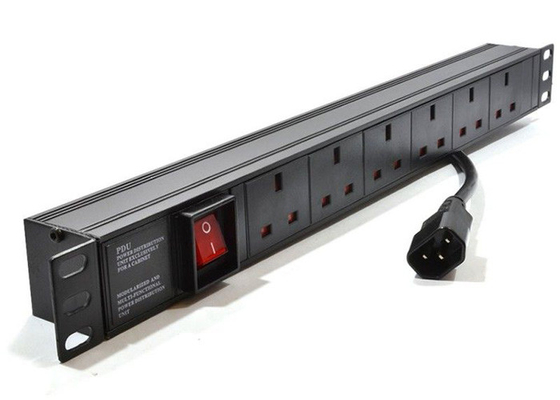

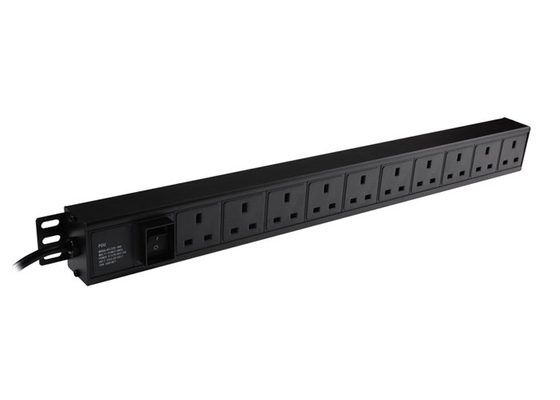

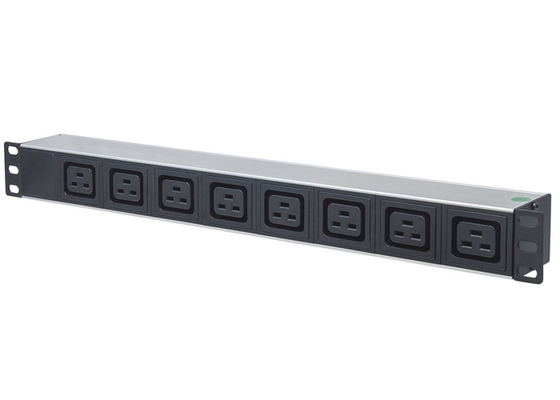

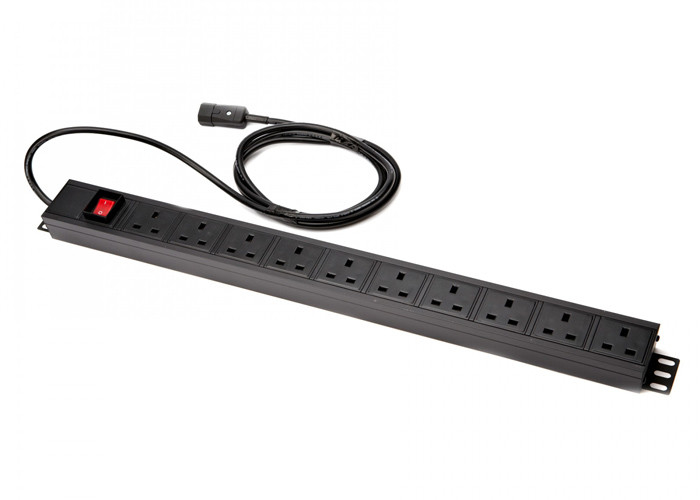

Product Picture



Universal Sockets Basic PDU Power Distribution Unit Rack Mount Power Strip 0
