Product Details:
Payment & Shipping Terms:
|
| Rated Current: | 16A | Rated Voltage: | 200V-250V |
|---|---|---|---|
| Rated Power: | 3.25KW | Ports: | 10 Way, 8/16/20 Ways Optional |
| Outlet Plug: | BS1363 UK Mains Plug | Lead Wire: | 3m H05VV-F 3G1.5mm |
| High Light: | rack power distribution unit,data center power distribution unit |
||

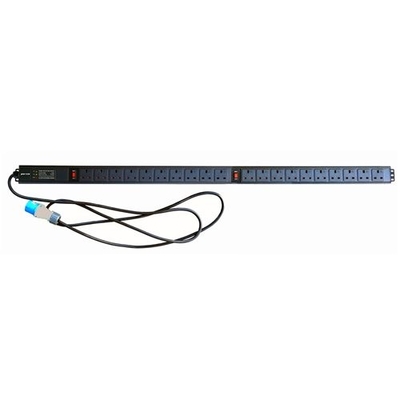

0U Vertical Installation UK PDU With Surge Protection and Power Switch
0U Vertical Uk PDUs are widely used to accommodate cabinets where a higher number of UK sockets are needed, but rack space is also at a premium.
Being mounted at the back of the cabinet means that the PDU maintains a '0U' profile, allowing the rest of the cabinet to be populated with critical hardware.
Main Feature
Vertical options 6 to 20 way
Horizontal options 4, 5, & 6 way
Surge protected
Supplied with 13A UK plug
Switched with switch cover (switch replaced with neon on 32A units)
CE and RoHS compliant
Standard 2.5Mtr power cord
Switch cover prevents vital equipment being switched off in error
Height 60mm (1.5U)
Depth 45mm
Surge Protection
Surge protection protects vital equipment from low-frequency, high voltage spikes of electricity. By either blocking the spike or shorting it to ground. The surge protector keeps any unwanted voltages above a safe threshold.
Surge protection Technical Data
|
Voltage |
240 V |
|
Current |
16A |
|
Protection |
430 V @ 1mA |
|
Response Time |
< 25nS |
|
Max Surge |
6500A |
|
Clamping Voltage |
775V |
PDU Specifications
|
Weight of PDU |
0.95kg - 2.3kg |
|
Net Length of PDU |
490-1580mm |
|
Net Width of PDU |
60mm |
|
Net Depth of PDU |
45mm |
|
Shipping Length of PDU |
520-1650mm |
|
Shipping Width of PDU |
150mm |
|
Shipping Depth of PDU |
75mm |
|
Shipping Weight of PDU |
1.3kg - 2.6kg |
|
PDU Max Power |
3250W |
|
Output Rating |
13A |
|
Overall Rating |
16A |
|
Input Frequency |
50/60Hz |
|
Acceptable Input Voltage |
250VAC |
Input Options
13A UK plug
IEC14 plug
16A Commando plug (max.32A)
Product Picture
