| Data Rate: | 100M | Distance: | 3/20KM |
|---|---|---|---|
| Connector: | SC/LC | DDM: | YES |
| Wavelength: | 1310/1550nm | Application: | Telecommunication |
| Type: | Fiber Optic Transceivers | Product Name: | 155M SFP Transceiver |
| High Light: | DDM Optical Fiber Cable Accessories,RX1310nm Optical Fiber Cable Accessories,TX1550nm Optical Fiber Module |
||

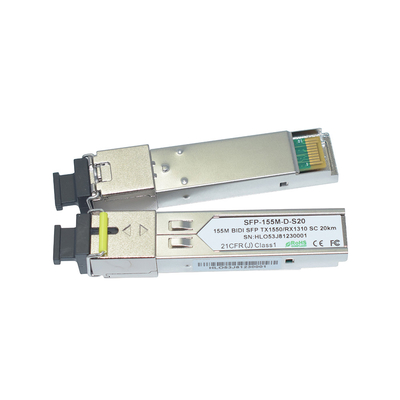

SFP 100Mb BiDi Single Mode Fast Ethernet 20km TX1550/RX1310nm DDM Optical Fiber Modules
BiDi SFP Transceiver Specifications
| Type | Fiber Optic Transceivers |
| No. of Fiber | 1. |
| Use | FTTX |
| Product name | 155M SFP Transceiver 1310/1550nm 20KM |
| Wavelength | 1310/1550nm |
| Data Rate | 100M |
| Distance | 3/20KM |
| Connector | SC/LC |
| DDM | YES |
| CE RoHS | Compliant |
| Warranty | 3 years |
| Application | Telecommunication |
| 155M/622M BiDi SFP LC/SC | 155M BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM | |
| 4/2/1G BIDI SFP LC/SC | 4/2/1G BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM | |
| 10G SFP BiDi | SFP+ BiDi 1270 20km | SFP+ BiDi 20km Tx1270nm/Rx1330nm LC |
| SFP+ BiDi 1330 20km | SFP+ BiDi 20km Tx1330nm/Rx1270nm LC | |
| SFP+ BiDi 1270 40km | SFP+ BiDi 40km Tx1270nm/Rx1330nm LC | |
| SFP+ BiDi 1330 40km | SFP+ BiDi 20km Tx1330nm/Rx1270nm LC | |
| SFP+ BiDi 1270 60km | SFP+ BiDi 60km Tx1270nm/Rx1330nm LC | |
| SFP+ BiDi 1330 60km | SFP+ BiDi 60km Tx1330nm/Rx1270nm LC | |
| 10G XFP BiDi | XFP BiDi 1270 20km | XFP BiDi 20km Tx1270nm/Rx1330nm LC |
| XFP BiDi 1330 20km | XFP BiDi 20km Tx1330nm/Rx1270nm LC | |
| XFP BiDi 1270 40km | XFP BiDi 40km Tx1270nm/Rx1330nm LC | |
| XFP BiDi 1330 40km | XFP BiDi 40km Tx1330nm/Rx1270nm LC | |
| XFP BiDi 1270 60km | XFP BiDi 60km Tx1270nm/Rx1330nm LC | |
| XFP BiDi 1330 60km | XFP BiDi 60km Tx1330nm/Rx1270nm LC | |
Product Features
155Mbps Data transfer rate
Tx1310nm/Rx1550nm and Tx1550nm/Rx1310nm BiDi SFP
Distance up to 20km
Single 3.3V Power Supply and TTL Logic Interface
Hot-Pluggable SFP
Simplex SC/LC (Optional)
Compliant with SFP MSA
Digital Diagnostic Monitoring
Operating Case Temperature: 0-70℃
Application
Fiber Channel Links
WDM Application
Gigabit Ethernet
Other Optical Link
FTTX Application
OEM and ODM
OEM/ODM order is available
Shipment
International Express: DHL, FedEx,EMS,TNT, UPS and so on. Delivery time 3-7 days.
Guarantee
We promise all the optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
