Product Details:
Payment & Shipping Terms:
|
| Slots: | 16 | Humidity: | 5% ~ 95% |
|---|---|---|---|
| DC Output: | DC5V, 12A | Frame Size: | 482.6x290x88.8mm |
| Protection: | Over Voltage Protection Etc. | Power Input: | AC100~260V,50~60Hz/DC48V |
| High Light: | TS-2U16R,16 Slots Fiber Transceiver |
||

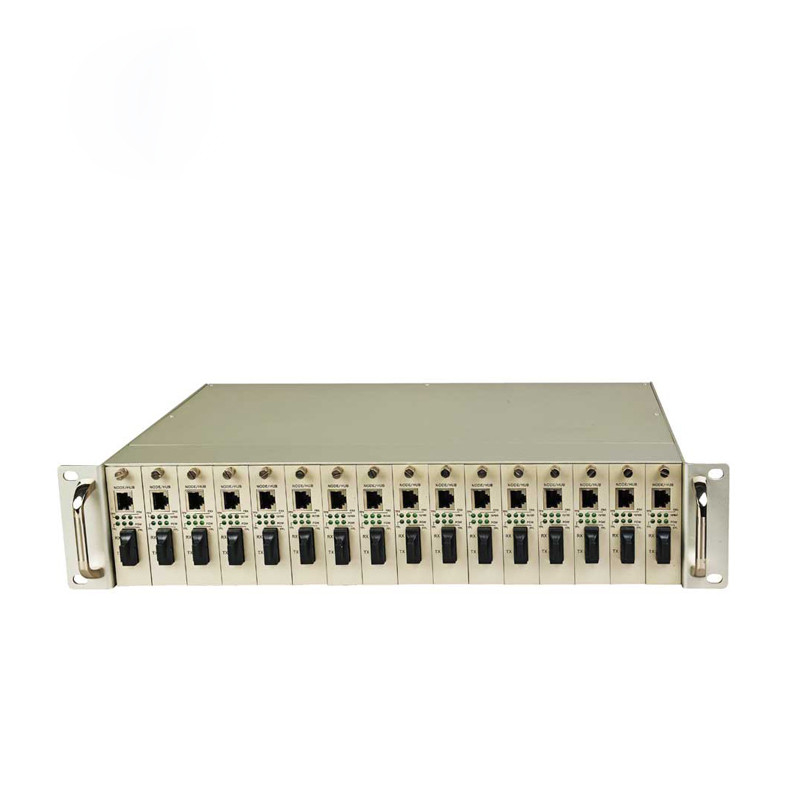

TS-2U16R Series Fiber Transceiver Frame Module Power Supply Overvoltage Protection
Technical parameters
| Slots | 16 (average maximum plugboard power parameter: DC5V/ 1.5a) |
| LED indicator | POWER |
| Power input | AC 100~260V,50~60Hz/ dc-48v optional |
| DC output | DC5V, 12A |
| Ripple | 50 mV or less |
| Noise | 50 mV or less |
| Actual power consumption | ≤60W |
| Ambient temperature | 0℃ to 50℃ |
| Storage temperature | -20-70°C |
| Relative humidity | 5% ~ 95% |
| Frame size | length × width × height (482.6mm×290mm×88.8mm) |
| Power parameter | Maximum power of input transceiver module: DC5V/A (15W) |
| Operating power | Fan normal operating power: 12V/300mA |
Features
Power protection: over voltage protection, over current protection, short circuit protection.
Standard chassis, can be installed in the machine room rack, easy to unified management and maintenance.
Adopting modular power supply design, easy maintenance, better shielding, prevent the electromagnetic signal generated by the power to interfere with the normal operation of the module group.
Each module can plug and unplug independently on the rack or work cooperatively to provide network diagnostics for itself.
Each slot of the rack supports hot plugging.
The modular design of the power supply provides sufficient spare power and easy to be maintained.
Fully in line with the telecom operation requirements, the average trouble-free working time of more than 50,000 hours.
After-sales service complete, to provide three-year quality assurance and lifelong maintenance services.
The power supply with high power, high efficiency, good heat dissipation performance, not easy to heat, electromagnetic radiation is small, over current, over voltage, short circuit protection.
The power supply is equipped with overvoltage protection and overcurrent protection. After the fault is cleared, the power supply has the function of automatic recovery

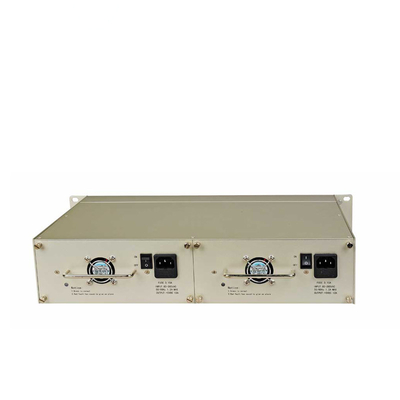

There are two pluggable high-power power modules, which have two working lights (green light) and fault lights (yellow light) respectively. The normal main power module works with a green light, and the standby power module works with a green light.
Order Information
| Model | Description | Power supply |
| TS-2U16R-S | 19 2U,16 slots, single power supply | 220V AC |
| TS-2U16R-D | 19 2U,16 slots, double power supply | 220V AC |
Product introduction
TS-2U16R Series Fiber Transceiver Frame (-48v) product is one of the most economical standard 2U frame which can meet the requirements of centralized use and centralized management of users.Power supply to achieve double automatic backup uninterrupted work, the system has over-temperature, overvoltage, overcurrent protection device. With voltage compensation technology, the optical fiber transceiver module can obtain reliable and accurate voltage supply.It is the best choice for users with a small number of transceivers.
This frame adopts advanced power treatment technology and reliable power supply design to realize power modularization. The rack provides 16 slots for optical fiber transceiver modules, each of which can work independently. The frame has the function of reliable protection equipment (to protect the optical fiber transceiver module from being damaged by the external AC220V surge high voltage); Provide reliable voltage source, with load automatic balancing function, that is, to ensure that no matter how many optical fiber transceiver modules are connected, the single-slot voltage of the module is a standard voltage, to ensure the reliability and stability of the performance of the optical fiber transceiver module, to provide conditions for life consistency. The power supply adopts dual backup design, which conforms to the standard of telecom operation level. The chassis structure adopts 2U standard design, which can be conveniently installed on the distribution frame.
