Professional Network Rack Cabinet Single Section 4U Capacity IP20 Protection

Professional Network Rack Cabinet Single Section 4U Capacity IP20 Protection
Professional Network Rack Cabinet Single Section 4U Capacity IP20 Protection Professional Network Rack Cabinet Single Section 4U Capacity IP20 Protection Professional Network Rack Cabinet Single Section 4U Capacity IP20 Protection Professional Network Rack Cabinet Single Section 4U Capacity IP20 Protection

Large Image :  Professional Network Rack Cabinet Single Section 4U Capacity IP20 Protection

Product Details:
Place of Origin: China
Brand Name: Unique-Tel
Certification: CE, RoHS
Model Number: Wall Mount Cabinet
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: within 10 days of payment
Payment Terms: T/T, L/C
Supply Ability: 1000 pieces per month
Detailed Product Description
Capacity: 4U Protection: IP20
Application: Networking Size: 600x450mm
Material: SPCC Cold Rolled Steel Product Name: 4U Wall Mount Network Cabinet
Cabinet Standard: Comply With ANSI/EIA, RS-310-D Description: 19 Inch 600x450 4U Wall Mount Network Cabinet
High Light:

wall mount server cabinet

,

telecom equipment cabinet

Professional Network Supplier Black RAL9004 19 Inch Single Section 4U Wall Mount Network Rack Cabinet



Product Description



1. Grade: High grade cold rolled steel
2. Size: 6U~21U
3. Standard: Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI
4. Certification: ISO9001, SGS, CTI, ROHS

Product Name Wall Mounted Network Cabinet
Material High grade cold rolled steel
Color RAL9004(black), RAL7035(Grey), RAL9010(white), or Customized Colors
Standard ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI
Grade High grade cold rolled steel
Brand CKPM
Thread Fine
Used Communication Machinery



THE SIZE CAN BE CUSTOMIZED



Size 220*550*270mm(H x W x D)
Material Cold rolled steel / Aluminum
Thickness 0.8mm-2mm/Custom
Finish Powder coating
ODM/OEM Acceptable
Fan 0
Front door Glass / Mesh
Side door Dis-mountable



Feature



Complies with EIA-310 standards

132 lb (60 kg) weight capacity

Reversible door

Constructed from SPCC cold rolled steel

Vented top for air flow

Mount for 120mm fans

Adjustable mounting depth from 2.5" (63.5mm) to 17" (432mm) deep

Secure but Accessible

Hinged back for easy maintenance

Removable side panels with lock

Glass door with lock
Material: Stainless steel/ Cold rolled steel/ Aluminium
Surface treatment: Powder coating/ hot galvanizing
Pre-treatment: Phosphorization

4U / 6U Wall Mount 270mm Deep Small Network Patching Cabinet designed to be used with Networking in mind. Stylish design ideal for any home or office environment.
Can me mounted with door opening to the left or to the right which ever way is required. Open back for bringing cable through the rear with additional cable access to top and bottom of cabinet.
This unit is ideal for small office environment.
Comes complete with the following:
Slimline style cabinet finished in Ral 7035, Ral 9004.
4U 19" Patch/Data rack/cabinet
-Lockable Tinted Grey perspex door
-Cable access top and bottom
-Welded construction
-550mm wide
-270mm working depth (From front 19" rails fitted inside to rear of cabinet)



Specifications

Size 600x450mm
Material SPCC cold rolled steel
Products Status Stock
Cabinet Standard Comply with ANSI/EIA, RS-310-D, IEC297-2, DIN41491
Product Name 4U Wall Mount Network Cabinet
Description 19 Inch 600x450 4U Wall Mount Network Cabinet
Application Standard 19 Inch Indoor Networking Rack Cabinet
Width 600 mm
Depth 450 mm
Height 280 mm
Capacity 4U
Degree of Protection IP20
Surface Finish Powder Coated
Color Black RAL9004 / Grey RAL7035

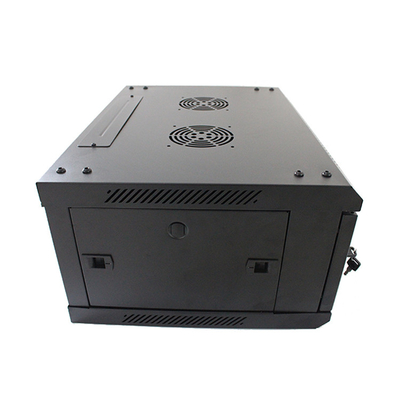

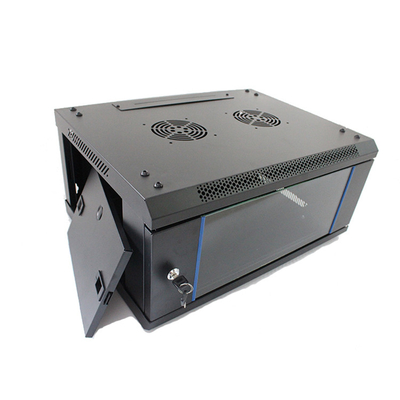

Professional Network Rack Cabinet Single Section 4U Capacity IP20 Protection 0

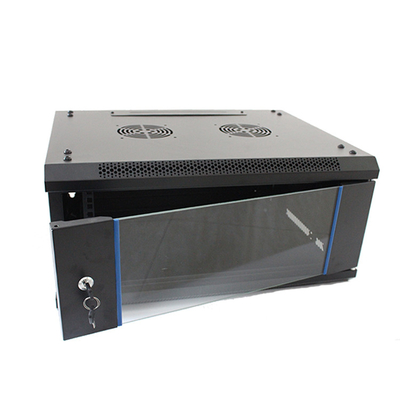

Professional Network Rack Cabinet Single Section 4U Capacity IP20 Protection 1

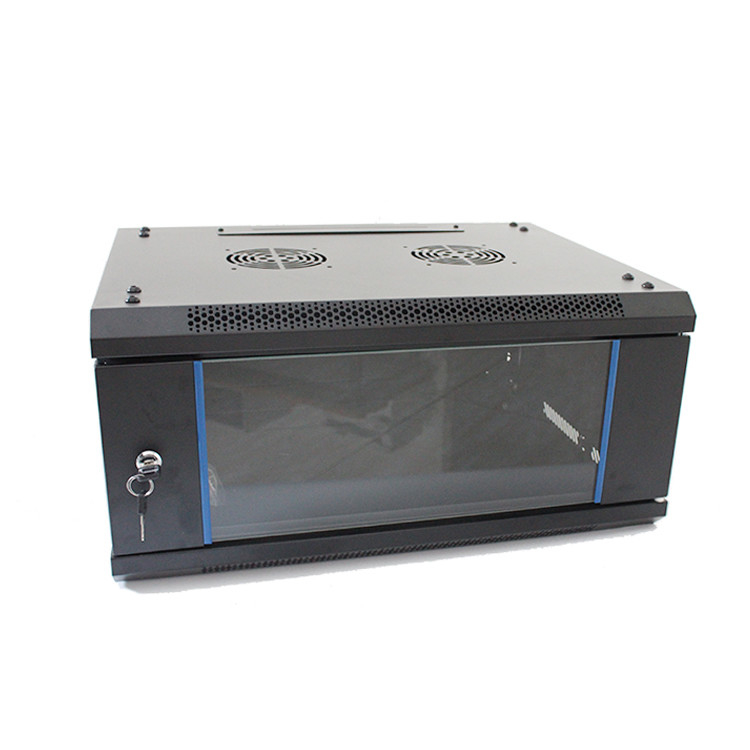

Professional Network Rack Cabinet Single Section 4U Capacity IP20 Protection 2
