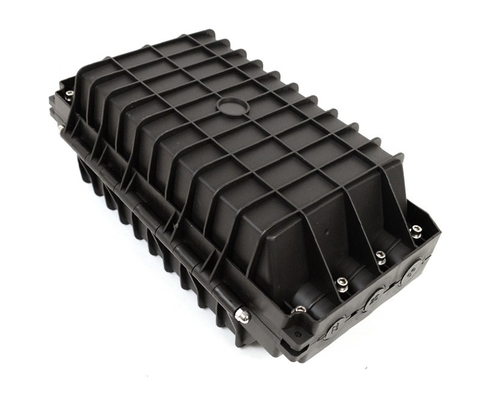

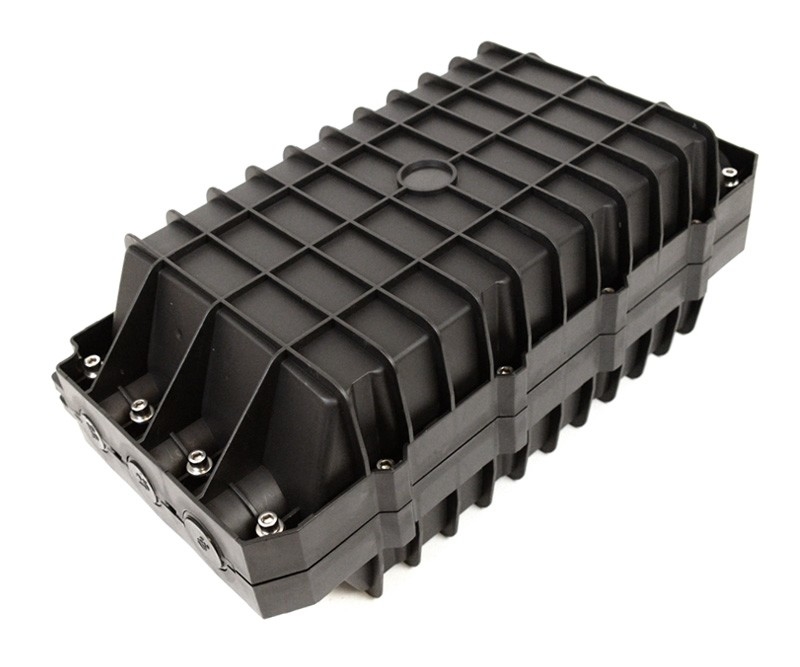

Network / FTTx 3m Fiber Optic Closure , Plastic Fiber Optic Dome Closure

Network / FTTx 3m Fiber Optic Closure , Plastic Fiber Optic Dome Closure
Network / FTTx 3m Fiber Optic Closure , Plastic Fiber Optic Dome Closure Network / FTTx 3m Fiber Optic Closure , Plastic Fiber Optic Dome Closure Network / FTTx 3m Fiber Optic Closure , Plastic Fiber Optic Dome Closure

Large Image :  Network / FTTx 3m Fiber Optic Closure , Plastic Fiber Optic Dome Closure

Product Details:
Place of Origin: China
Brand Name: Unique-Tel
Certification: CE RoHS
Model Number: JXH03
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: Negotiation
Packaging Details: carton packaging
Delivery Time: 5 work days
Payment Terms: T/T, L/C
Supply Ability: 1000 Pieces/Month
Detailed Product Description
Ports: 6 Trays: 2
Color: Black Usage: Cable Connecting
Max Splice: 48 Fibers Application: Network, FTTx
Resistance: Less Than 2 X 104MΩ Diameter: Cable Diameter<20mm
High Light:

fiber enclosure box

,

fiber optic dome closure

6 Port 2 Tray 48 Fiber Inline Splice Enclosure Fiber Optic Splice Closure



Features



The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.

The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.

The protection grade reaches IP66.

The closures are applicable to ribbon type optical cable and common optical cable.

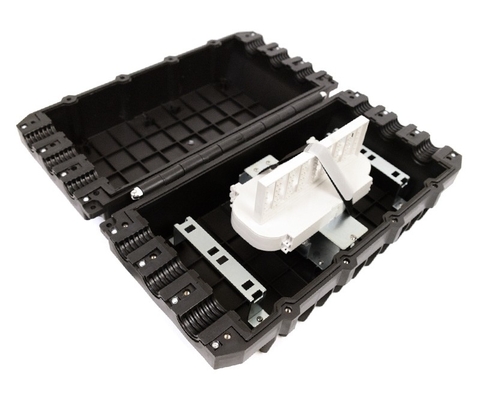

The splice trays inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40mm. Each optical cable and fiber can be operated individually.

The closure is of small volume, big capacity and convenient maintenance.

The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance.

The casing can be opened repeatedly without air leakage. No special tools are required.

The operation is easy and simple.

The air valve is provided for the closure and used to check the sealing performance.



Technical Specification



Seal performance: after the box is sealed, inflate to 100kPa inwards (inflation only apply to the models with the air hole), and then soak it in the water of normal temperature, after 15 minutes of steady observation, there is no bubble to overflow.

Insulation resistance: the insulation resistance between the metal work piece and the earth is greater than 20kMΩ.

Pressurization: there is no breakdown or flashover under 15kVdc/1min between the metal work piece and the earth.

The curvature radius of the fiber 40mm, without extra loss inside the splice tray.

It can bear the axial tensile strength no less than 1000N.

Lifetime: 25 years.

Other performances are all in accordance with the requirement of standard YD/T814-1998.



Specification



Dimensions and Capability
Dimensions (L*W*H) 420 mm*145 mm*145 mm
Max Capacity Bundle 96 Cores; Ribbon 320 Cores
Number of Cable Entrance/Exit 3 ; 3
Diameter of Cable Less than Φ20 mm



Operation Conditions
Temperature - 40℃ ~ + 60℃
Humidity ≤ 95% (at 40℃)
Air Pressure 70kPa ~106kPa



Shipping Information
Package Contents Closure, 1 unit; Installation accessories, 1 set
Package Dimensions(L*W*H) 445 mm*160 mm*160 mm
Material Carton box
Weight
Lead Time 5 working days normally



6-port-2-tray-48-fiber-inline-splice-enclosure-fiber-optic-splice-closure
