Product Details:
Payment & Shipping Terms:
|
| Return Loss: | >60dB | Maximum Storage: | 5000 Set |
|---|---|---|---|
| Screen: | 4.3 In. Color LCD | Applicable Fiber: | SM,MM,DS,NZDS |
| Connecting Time: | 9sec(Typical Time) | Battery: | Typical Operating 220 |
| High Light: | LCD fiber optic fusion machine,Eloik fiber optic fusion machine,ALK-88A |
||

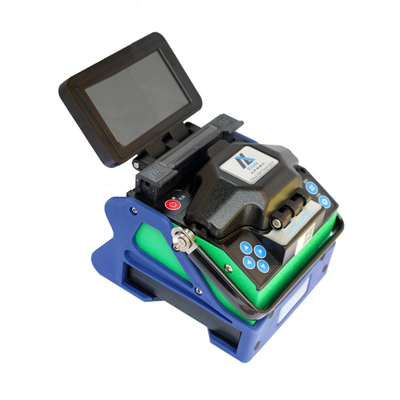

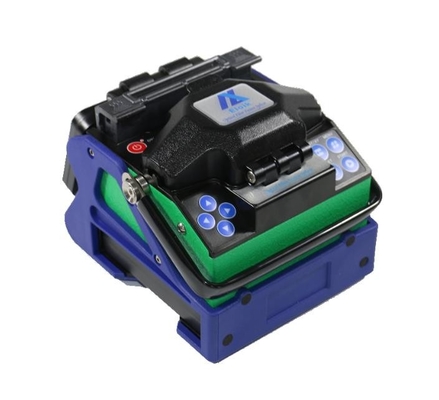

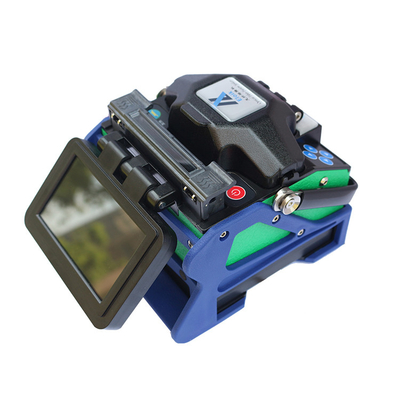

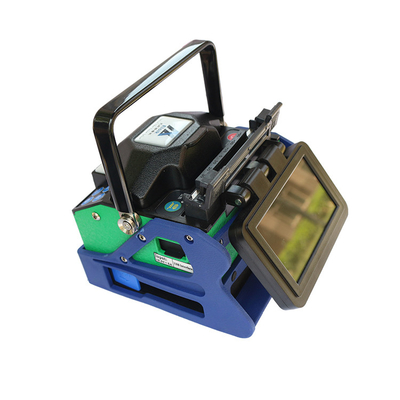

ALK-88A Fusion Splicer Optical Splicing Machine
Fusion Splicer ALK-88A is a Mini type Fusion splicing machine and have our own intellectual property right of fiber adjustment technology .It adopts advanced PAS Fiber adustment technology . Adopt four motors drive, have fiber adjustment function, it is not only used for FTTX project, but also can be used for the trunk line, it is a machine which is the smallest volume ,the lightest weight ,the most fast splicing speed.
Features
Hardness:The body is made from titanium alloy , and it has rubber protection function , quakeproof, waterproof, dustproof .
Fast: 7s fast splicing , 25s fast heating, support continuous heating , average efficiency improve 2～3times.
Long lifetime : 2 batteries ,200 fiber splicing ,no memory effect Lithium Batteries ,the fiber cleaver has 24 blade , long lifetime.
Convenience: convenient for maintenance.
Interchangeable Fiber Holders
Fiber holders adopt Interchangeable design. we can change different fiber holders for different fiber splicing:
1, Splice-on fast connector---3x2mm drop cable
2, Splice-on fast connector---Pigtail fiber (2.0mm or 3.0mm)
3, 3x2mm drop cable---3x2mm drop cable
4, 3x2mm drop cable - Pigtail fiber (2.0mm or 3.0mm)
5, 0.25mm Fiber---0.25mm Fiber
6, 0.9mm Fiber---0.9mm Fiber
Specifications
| Applicable Fiber Type | SM,MM,DS,NZDS |
| Applicable fiber diameter | Cladding diameter of 125μm, coating diameter 250 ~ 900μm |
| Average splice loss | 0.01dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
| Connecting time | 9sec(Typical time) |
| Splice loss evaluation | Have |
| Maximum storage | 5000 set of the latest record storage |
| Screen |
4.3 in. color LCD, support Chinese ,English ,Russian, French, Portuguese and Spanish display |
| Optical magnification | X / Y: 115 times, X, or Y: 230 times |
| Storage Conditions | 0 to 95% relative humidity, temperature -40 ℃ ~ 80 ℃ (except battery), temperature -10 ℃ ~ 30 ℃ (battery) |
| Corrosion resistance | Device components, spare parts and materials used meet corrosion requirements, fluid contamination from erosion |
| Applicable Fiber Count | Single |
| Splice/heat program | Stored 40 groups, 80 groups of user-defined |
| Return Loss | More than 60dB |
| Tensile test | 2N |
| Data interface | USB2.0 |
| Battery | Typical Operating 220 (splice / heat shrink / thermal stripping) on a single charge 3h, can be reused 500 times |
| Power Supply | 11.1V lithium battery, 13.5V/5A power adapter, 12V vehicle power supply |
| Operating environment | Altitude 0 ~ 4000m, 0 to 95% relative humidity, temperature -10 ℃ ~ 55 ℃, the maximum wind speed 15m/s |
| Weight | 1.54kg (without battery), 1.82kg (including battery), including attachments packing gross weight: 5.38Kg |
| Size | 150D×130W×126H(mm) |
