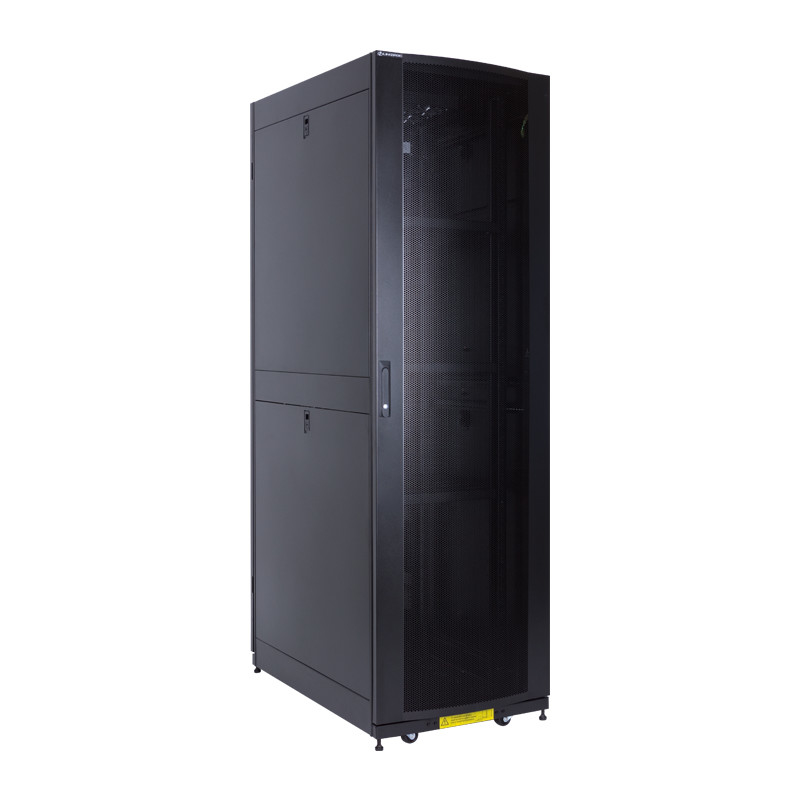

IT Free Telecom Equipment Cabinet , 32U Enclosure Network Switch Cabinet On Wheels

32U IT Free Standing Server Rack Cabinet Enclosure Telecom Equipment Cabinet

Overview

Floor Standing Cabinets are feature-rich rack enclosures optimized for easy installation, managing cables, integrating power distribution, and maximizing airflow. These racks are multi-functional rack enclosures designed to meet current IT market trends and applications ranging from high density computing and networking to broadcast and audio-video.

Specifications

• Standard equipment: power strip, a set of shelves, ventilation panel
• Side doors mounted on latches
• A rack rail indicating the amount of units (U)
• Adjustable feet and transport wheels of high durability
• Two cable ducts - ceiling and floor
• A frame with a load capacity of 1000kg
• Cold-rolled steel
• Frame thickness: 2.0 mm
• Mounting rail thickness: 2.0 mm
• Side panel thickness: 1.5 mm

• Protection class IP20
• Surface finish: degreasing, etching, phosphating, powder coating
• Protection against rust, oxidation, scratches, corrosion
• Front door - Perforated steel oval front doors
• Two-leaf perforated steel back doors
• Available in black RAL9004
• Compliant with ANSI/EIA RS-310-D, DIN41491 PART1, IEC297-2, DIN41494 PART7, and GB/T3047.2-92 standards
• Compatible with metric ETSI and 19-inch international standards.

Dimensions

Cabinet Features

• 19” mounting angles
• Front mesh door with lock and handle
• Rear perforated metal door with lock
• Both the doors can be mounted to be opening from either side
• Lock on the front door with handle and rear door with duplicate keys
• Removable side panels
• Adjustable jacking feet
• Four fans fitted in a fan tray with cable for connection
• Extra cage nuts provided(30 Pieces)
• Earthing screws and two- way vertical cable managers

Technical Specifications

• All steel construction
• Frame made of 1.2 mm thick SPCC
• Fixed shelves made of 1.2 mm thick SPCC (Optional)
• Mounting angles made of 2.0 mm thick steel
• Strong structure of individually fabricated components
• Manufactured using CNC machine
• Surface Finish: Matt Black Epoxy Powder Coated Paint (RAL 9005)

Power Distribution and cooling fan

• Max Current: 13 Amps
• Max Output Power: 3250 Watts
• Rated voltage: 200 -250 Volts 50-60 HZ
• Six Outlet UK Type
• Cooling Fan : Lower noise, Less than 48db, Air flow 50-110 CBM/H
