Flatpack2 220/10 HE 220V 10A 5G Network Equipment Eltek Rectifier Module 241119.815

China Wuhan Unique Mechanical And Electrical Equipment Co.,LTD. certification
These guys are really professional at trading as well as networking stuffs, saved me a lot of energy and money.

—— John Karanja

Nice working with you, flawless product, considering the next deal.

—— Michael Morrison

I'm Online Chat Now

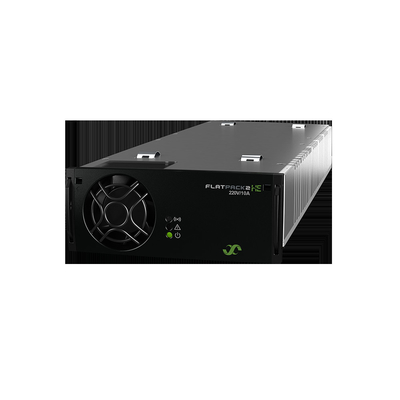

Flatpack2 220/10 HE 220V 10A 5G Network Equipment Eltek Rectifier Module 241119.815

Flatpack2 220/10 HE 220V 10A 5G Network Equipment Eltek Rectifier Module 241119.815
Flatpack2 220/10 HE 220V 10A 5G Network Equipment Eltek Rectifier Module 241119.815

Large Image :  Flatpack2 220/10 HE 220V 10A 5G Network Equipment Eltek Rectifier Module 241119.815

Product Details:
Place of Origin: China
Brand Name: Eltek
Certification: CE, RoHS
Model Number: 241119.815
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: carton box
Delivery Time: within 10 days of payment
Payment Terms: L/C, T/T
Supply Ability: 1000 sets/month
Detailed Product Description
Part Number: 241119.815 Model: 220 / 10A HE
Frequency: 45 - 66 Hz Maximum Current: 17 ARMS
Voltage Range: 85 - 305 V AC Voltage Range (nominal): 176 - 305 V AC
THD (@ 230 VAC): < 4% (@ Full Load) Power Factor: 0.99 (@ 50-100% Load)
High Light:

HE Eltek Rectifier Module

,

220V 10A Eltek Rectifier Module

,

241119.815

Flatpack2 220/10 HE 220V 10A Eltek Rectifier Module 241119.815



Applications



Data Center

Power Utilities

Power Stations

Switch Tripping

Converter Stations

Emergency Lighting

Railway Infrastructure

Marine And Off-Shore

Central Power System

Central Power System

Dc/ Dc - Isolate Branches

Control & Protection Systems



Description



High efficiency and reliable rectifiers

The most efficient power conversion module in the industry! Since the launch the Flatpack2 family has expanded into a wide selection of power ratings and voltages.

Power systems up to the MW-range can be realized using the 10A model addressing small and larger modular data centers’ power needs. 220VDC power systems provide an excellent alternative to traditional AC UPS providing significant efficiency and reliability improvements.

With 220V DC, standard components, cables and distribution can be used and most IT equipment designed for 208/ 230V AC can be connected directly to the 220V DC bus.



Specifications



Part number 241119.815
Model 220 / 10A HE
INPUT DATA
Voltage range 85 - 305 V AC
Voltage range (nominal) 176 - 305 V AC
Frequency 45 - 66 Hz
Maximum current 17 ARMS
Power Factor 0.99 (@ 50-100% load)
THD (@ 230 VAC) < 4% (@ full load)
Protection Varistor for transient protection, fuse in both lines, shutdown above 300/ 305 V
OUTPUT DATA
Default voltage 245.3 V DC
Voltage range

198 1) - 280 VD 2)

C

# Pb cell supported (1.8 - 2.4 V DC/ cell) 108-110 (120 3))
# NiCad cell supported (1.05 - 1.65 V DC/ cell) -
Max power, nominal input 2800 W
Max power, 85V input 1304 W
Max current, @220V DC 10 A 4)
Hold-up time, default voltage and 1500 W load 20 ms, VOUT > 210 V DC
Ripple and noise, 30 MHz bandwidth < 1000 mV PP
Current sharing ±5% of maximum current from 10 to 100% load
Static voltage regulation ±0.5% from 10% to 100% load and nominal input
Dynamic voltage regulation ±5.0% for 10-90% or 90-10% load variation, regulation time < 50ms
Protection Overvoltage shutdown, short circuit proof, high temperature, hot plug -in inrush current limiting, ORing diode
OTHER SPECIFICATIONS
Efficiency > 95.5%
Isolation 3.0 kVAC – input to output, 1.5 kV AC – input to earth, 1.5 kV DC – output to earth 3 kVAC – CAN to input, 3 kV AC – CAN to output, 500 V AC – CAN to earth
Alarms (Red LED) Low mains shutdown, High and low temperature shutdown, Rectifier Failure, Overvoltage shutdown on output, Fan failure, Low voltage alarm, CAN bus failure
Warnings (Yellow LED) Rectifier in power derate mode, Remote battery current limit activated, Input voltage out of range, flashing at overvoltage
Normal (Green LED) Input and output ok
MTBF (Telcordia SR-332 Issue I method III (a)) >400 000h (@T AMBIENT= 25°C)
Operating temperature (5 - 95% RH non-cond.) Output power de-rates above temp / to

-40 to +75°C [ -40 to +167°F]

+50°C / 1750 W @ +75°C

Storage temperature -40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing
Dimensions[WxHxD] / Weight 109 x 41.5 x 327mm (WxHxD) [4.25 x 1.69 x 13”] / 1.950 kg [4.3lbs]
DESIGN STANDARDS
Electrical safety UL 60950 -1, EN 60950 -1, CSA 22.2
EMC

ETSI EN 300 386 V.1.3.2

EN 61000-6-1 / -2 / -3 / -4 / -5

Mains Harmonics EN 61000 -3-2
Environment

ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2)

ETSI EN 300 132-2

2011/ 65/ EU (RoHS) & 2008/ 98/EC (WEEE)

Marine compliance

(EMC class B with AC filter)



-



  • VOUT may increase at no and very light load (< 1 A) for V OUT_SET < 245 V DC set and V IN > 250 V AC/ DC
  • Specification valid for HW version 2 and newer. For older revision see DS:24111x.815.DS3 ver1.
  • VRLA batteries boost 2.33V/ cell
  • 8A when V IN > 290V AC and Tambient > 45°C and VOUT < 220V DC
