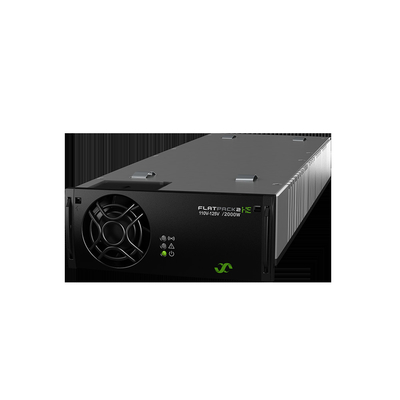

Eltek Flatpack2 Rectifier Module 110V 2000W HE WOR 241115.805
Overview
High efficiency and reliable rectifiers
The most efficient power conversion module in the industry! Since the launch the Flatpack 2 family has expanded into a wide selection of power ratings and voltages
Key Feature
Proven Reliability
High Power Density
Application Flexibility, 2kw - 2m
Accepts Dc Input (Dc/ Dc Converter)
Global Compliance (Ce, Ul, Nebs)
Marine & Offshore Certification
Patented Technology
Digital Controllers
Applications
Power Utilities
Switch Tripping
Control & Protection Systems
Emergency Lighting
Railway Infrastructure
Converter Stations
Power Stations
Various other applications in demanding industries like marine, oil & gas, process etc.
Specifications
| Part number | 241115.805 |
| Model | 110 / 2000 HE WOR |
| INPUT DATA | |
| Voltage range (nominal) | 185 - 275 V AC/ DC |
| Voltage range | 85 - 300 V AC/ DC |
| Frequency | 0 - 66 Hz |
| Maximum current | 11.9 A RMS |
| Power Factor | 0.99 (@ 50-100 % load) |
| THD (@ 230 VAC) | < 5 % (@ full load) |
| Protection | Varistor for transient protection, fuse in both lines, shutdown above 300/ 305 V |
| OUTPUT DATA | |
| Default voltage | 122.5 V DC |
| Voltage range | 89.22) - 171.6 VDC |
| # Pb cell supported (1.8 - 2.4 V DC/ cell) | 54 - 71 |
| # NiCad cell supported (1.05 - 1.65 V DC/ cell) | 85 - 104 |
| Max power, nominal input | 2000 W |
| Max power, 85V input | 850 W |
| Max current | 16.7 A |
| Hold-up time, default voltage and 1500 W load | 20 ms, VOUT > 99.7 VDC |
| Current sharing | ±5% of maximum current from 10 to 100% load |
| Static voltage regulation | ±0.5% from 10% to 100% load and nominal input |
| Dynamic voltage regulation | ±5.0% for 10-80% or 80-10% load variation, regulation time < 50ms |
| Rippel and noise, 30 MHz bandwidth | < 500 mV PP |
| Protection | Overvoltage shutdown, short circuit proof, high temperature, hot plug -in inrush current limiting, ORing diode |
| OTHER SPECIFICATIONS | |
| Efficiency | > 94% |
| Isolation | 3.0 kVAC – input and output, 1.5 kV AC – input earth, 1.5 kV DC – output earth 3 kVAC CAN – input, 3kVAC CAN – output |
| Alarms (Red LED) | Low mains shutdown, High and low temperature shutdown, Rectifier Failure, Overvoltage shutdown on output, Fan failure, Low voltage alarm, CAN bus failure |
| Warnings (Yellow LED) | Rectifier in power derate mode, Remote battery current limit activated, Input voltage out of range, flashing at overvoltage |
| Normal (Green LED) | Input and output ok |
| MTBF (Telcordia SR-332 Issue I method III (a)) | >391 000h (@T AMBIENT= 25°C) |
| Operating temperature (5 - 95% RH non-cond.) Output power de-rates above temp / to |
-40 to +75°C [ -40 to +167°F] +55°C / 1350W @ +75°C |
| Storage temperature | -40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing |
| Dimensions[WxHxD] / Weight | 109 x 41.5 x 327mm (WxHxD) [4.25 x 1.69 x 13”] / 1.950 kg [4.3lbs] |
| DESIGN STANDARDS | |
| Electrical safety | UL 60950 -1, EN 60950 -1, CSA 22.2 |
| EMC |
ETSI EN 300 386 V.1.3.2 EN 61000-6-1 / -2 / -3 / -4 / -5 |
| Mains Harmonics | EN 61000 -3-2 |
| Environment |
ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2) ETSI EN 300 132-2 2011/ 65/ EU (RoHS) & 2008/ 98/EC (WEEE) |
|
Marine compliance (EMC class B with AC filter) |
DnV Rules for Classification of Ships, High Speed & Light Craft and DnV Offshore Standards |
Specification valid for HW version 2 and newer. For older revision see DS:24111x.805.DS3 ver1.
Output voltage will increase at light loads (< 1.6A)
