Product Details:
Payment & Shipping Terms:
|
| Material: | Cold Rolled Steel | Color: | Black |
|---|---|---|---|
| Port Qty: | 24 Port | Port Presentation: | RJ45 Socket |
| Height: | 1U | Length: | 19 Inch |
| High Light: | ethernet patch panel,server rack patch panel |
||
Rackmount 24 Port Shielded Cat6 Patch Panel 110 Type , 568A B Compatible
Introduction
Category 6 Screened Patch Panels have been designed to meet or exceed the latest ISO and TIA requirements for category 6 compliance.
Ease of installation is assured with built in rear cable management at a 90° angle to the panel fascia.
Each panel has a screen printed labelling field positioned above each port, included with the panel is a pre printed self adhesive labelling sheet - pre numbered 1- 96, for fast and easy labelling on site.
Termination can be made using compatible tools, and cable tie bridges are positioned between the IDC blocks to relieve cable stress.
Each panel consists of a number of 8 way blocks of RJ45 sockets, housed in a high quality plastic moulding.
Features
Specifications
| Specification: | Category 6 compliant |
| Wiring Specification: | T568A & T568B |
| Port Density: | 24 ports per 1U (44mm) |
| Dimensions: | 479mm wide x 102.5mm deep x 44mm high |
| RJ45 Jack: | Min life expectancy 700 insertions |
| RJ45 Jack: | 50 micron gold plated contact pins |
| IDC Contacts: | LSA style, maximum 100 reterminations |
| Contact compatibility | 22 to 26AWG Solid & 24AWG Stranded wires |
| Operating Temperature Range | ‐10°C to 60°C |
| Storage Temperature Range | ‐40°C to 68°C |
| Panel Material: | SPCC ‐ Black Powder Painting Coat Finish |

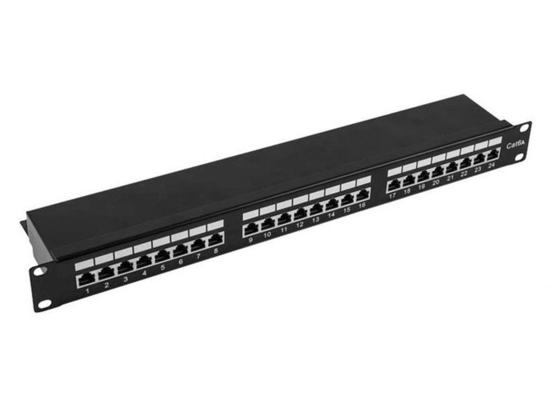

Product Picture
