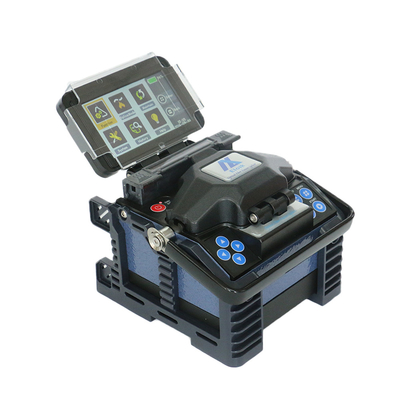

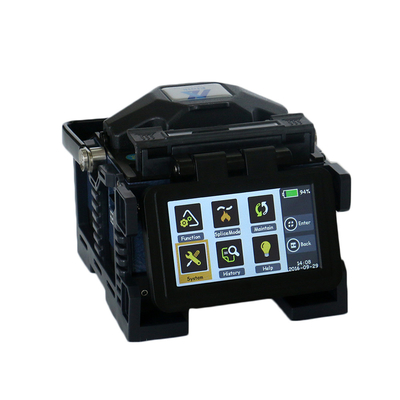

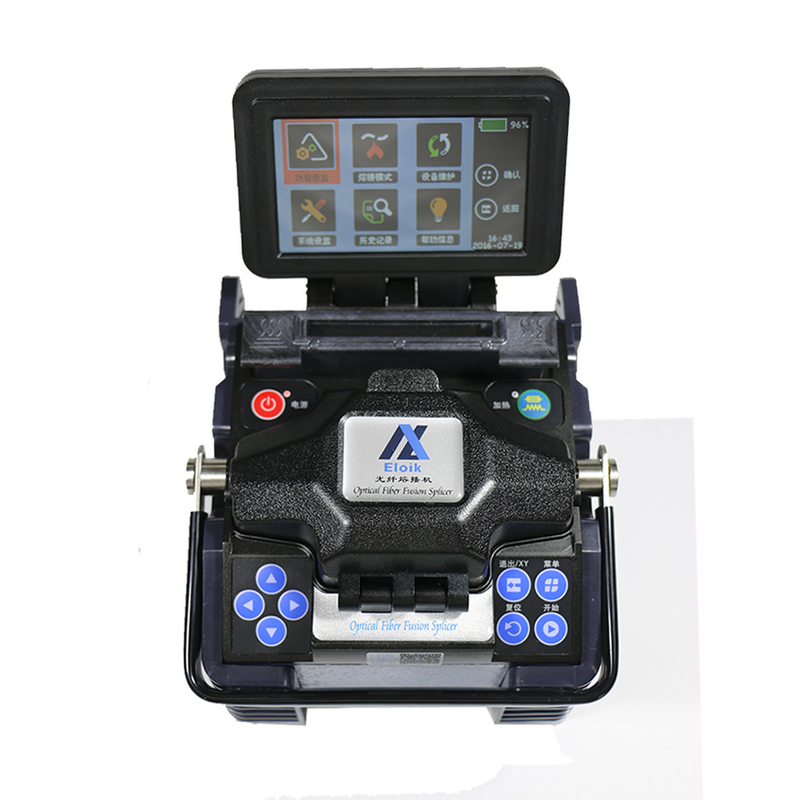

Battery ALK 88 Tools Set Single Mini Fusion Splicing Machine

Battery ALK 88 Tools Set Single Mini Fusion Splicing Machine
Battery ALK 88 Tools Set Single Mini Fusion Splicing Machine Battery ALK 88 Tools Set Single Mini Fusion Splicing Machine Battery ALK 88 Tools Set Single Mini Fusion Splicing Machine

Large Image :  Battery ALK 88 Tools Set Single Mini Fusion Splicing Machine

Product Details:
Place of Origin: Hubei, China
Brand Name: ALK
Certification: CE, RoHS
Model Number: ALK-88
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: carton & PVC packaging
Delivery Time: within 10 days of payment
Payment Terms: T/T, L/C
Supply Ability: 10000 Pieces/Month
Detailed Product Description
Tensile Test: 2N Fiber Count: Single
Data Interface: USB2.0 Return Loss: More Than 60dB
Size: 150D×130W×126H(mm) Weight: 1.82kg (including Battery)
High Light:

Single Mini Fusion Splicing Machine

,

battery Mini Fusion Splicing Machine

,

ALK-88

Fusion Splicer ALK-88 Mini type Fusion Splicing Machine



Fusion Splicer ALK-88 (portable) is a Mini type Fusion splicing machine with intellectual property of fiber adjustment technology.

It adopts advanced PAS Fiber adjustment technology, four motors drive with fiber adjustment function. the smallest volume ,the lightest weight ,the most fast splicing speed.Mainly for LAN (Local Area Networks),FTTH (Fiber To The Home) and the trunk line



Features



Hardness/The body is made from titanium alloy , and it has rubber protection function , quakeproof, waterproof, dustproof .

Fast:/7s fast splicing , 25s fast heating, support continuous heating , average efficiency improve 2-3times.

Long lifetime /200 fiber splicing ,no memory effect Lithium Batteries ;the fiber cleaver has 24 blade , long lifetime.

Convenience/convenient for maintenance.



Operating Instruction



preparation before splice

stripping fiber’s other protective layers outside the coating layer

placing protection sleeve over fiber

Strip and clean outer coating of fiber

fiber cleaving(it’s better to equip ALK-66A)

place optical fiber

Fusion splicing

select splice program and set splice parameters

automatic alignment and head-face inspection

arc splice

Splice loss examination and quality assessment



Interchangeable Fiber Holders



Fiber holders adopt Interchangeable design. we can change different fiber holders for different fiber splicing:

1,Splice-on fast connector---3x2mm drop cable

2,Splice-on fast connector---Pigtail fiber (2.0mm or 3.0mm) 3,3x2mm drop cable---3x2mm drop cable

4,3x2mm drop cable - Pigtail fiber (2.0mm or 3.0mm) 5,0.25mm Fiber---0.25mm Fiber

6,0.9mm Fiber---0.9mm Fiber



Specifications



Data sheet
Applicable Fiber Type SM,MM,DS,NZDS
Applicable fiber diameter Cladding diameter of 125μm, coating diameter 250 ~ 900μm
Average splice loss 0.01dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
Connecting time 9sec(Typical time)
Splice loss evaluation Have
Maximum storage 5000 set of the latest record storage
Screen 4.3 in. color LCD, support Chinese and English display
Optical magnification X / Y: 115 times, X, or Y: 230 times
Storage Conditions

0 to 95% relative humidity, temperature -40 degrees C.

~ 80 degrees C.

(except battery), temperature -10 degrees C.

~ 30degrees C. (battery)

Corrosion resistance

Device components, spare parts and materials used meet corrosion requirements, fluid contamination from

erosion

Applicable Fiber Count Single
Splice/heat program Stored 40 groups, 80 groups of user-defined
Return Loss More than 60dB
Tensile test 2N
Data interface USB2.0
Battery Typical Operating 220 (splice / heat shrink / thermal stripping) on a single charge 3h, can be reused 500 times
Power Supply 11.1V lithium battery, 13.5V/5A power adapter, 12V vehicle power supply





Operating environment

Altitude 0 ~ 4000m, 0 to 95% relative humidity, temperature -10 degrees C. ~ 55 degrees C., the maximum wind speed

15m / s

Weight 1.54kg (without battery), 1.82kg (including battery), including attachments packing gross weight: 5.38Kg
Size 150D×130W×126H(mm)
