Fiber Count: | 1-4 Fibers | Weight: | 8-9 Kg/km |
---|---|---|---|
Temperature: | -30~+70℃ | Diameter: | (2.0±0.2)×(3.5±0.2) |
Protection: | Anti-UV Charateristics | Application: | Internet, CATV And Telephone |
Installation: | Condominium Office Installation | Advantage: | Soft ,flexible ,easy To Lay And Splice |
High Light: | fiber optic ethernet cable,central tube fiber cable |

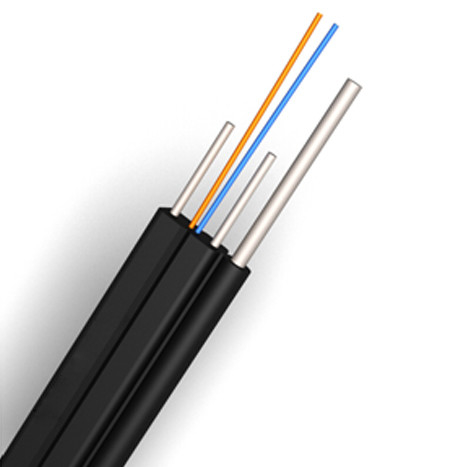

FTTH Aerial Drop Cable Fiber Optic Self Support Fiber to the Home Cable
Description
One of the common practices to construct economical and efficient Fiber To The Home (FTTH) networks is to share “electric poles” by optical fiber networks and power lines. For safe deployment of optical cable close to power lines and lightning strike prevention, we have proposed the non-metallic FTTH networks solution. To achieve the proposal solution, we have developed non-metallic self-supporting highdensity aerial distribution optical cables that allow easy and simple mid span access installation in a short time and non-metallic drop optical cables that are compatible with conventional field assembled connectors. In particular, the lineup of the aerial optical cables is now extend to 48-fiber. This paper presents the details of these new non-metallic optical cables.
Features

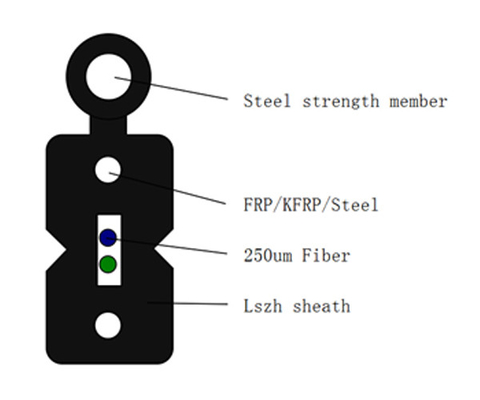

The φ250μm optical fibers units are positioned in the centre. The parallel fiber reinforced plastics (FRP) or steel wires are placed at the two sides. Then the cable is completed with a black or color LSZH sheath.Small Diameter & Light Weight Economical Cost Easy to pull out the optical fibers from the cable.
· Good mechanical and enviromental characteristic
· Anti-UV charateristics meet the requirements of relevant standards
· The mechanical charateristics meet the requirements of relevant standards
· Soft ,flexiable ,easy to lay and splice,and with big capacity data transmission
· Meet various requirements of market and clients
Application
1. Directly installed into houses Aerial Installation Suitable for Condominium Office Installation.
2. Access network, fiber to the home.
3. Directly for terminal users.
4. Support the internet, CATV and telephone, Support more network increase service in future.
Mechanical & Environmental Characteristics
Fiber count |
Cable Diameter (mm) |
Cable Weight (kg/km) |
Tensile (N) Long/ Short term |
Crush (N/100mm) Long/ Short term |
Min. Bend Radius (mm) Dynamic/ Static |
1 | (2.0±0.2)×(3.0±0.2) | 8 | 60/100 | 300/1000 | 15/30 |
2 | (2.0±0.2)×(3.0±0.2) | 8.5 | 60/100 | 300/1000 | 15/30 |
4 | (2.0±0.2)×(3.5±0.2) | 9 | 60/100 | 300/1000 | 15/30 |
Note: Range of temperature: -30~+70℃ |
Optical Characteristics
Glass Type | 62.5/125um | 62.5/125um | 50/125um | 50/125um | 50/125um | SM(G652) |
Grade B | Grade A | Grade B | Grade A | OM3 | G.652C/D | |
P/N Code(X) | 62B | 62A | 50B | 50A | OM3 | 09C/D |
Operating | 850/1300nm | 850/1300nm | 850/1300nm | 850/1300nm | 850/1300nm | 1310/1550nm |
Wavelength | ||||||
Bandwidth | 160/500 | 200/600 | 200/500 | 400/800 | 1500/500 | - |
(MHz.km) | ||||||
Attenuation | 3.50/1.50 | 3.20/1.20 | 3..20/1.20 | 3.00/1.00 | 2.70/0.80 | 0.45/0.30 |
(dB/km) | ||||||
Link Length | 200/500 | 275/550 | 500/550 | 550/550 | 10004/600 | - |
For 1G | ||||||
Link Length | - | - | - | - | 300/- | - |
For 10G |
