AI-8C Arc Signal 5S 0.025dB Fiber Optic Splicing Machine

China Wuhan Unique Mechanical And Electrical Equipment Co.,LTD. certification
These guys are really professional at trading as well as networking stuffs, saved me a lot of energy and money.

—— John Karanja

Nice working with you, flawless product, considering the next deal.

—— Michael Morrison

I'm Online Chat Now

AI-8C Arc Signal 5S 0.025dB Fiber Optic Splicing Machine

AI-8C Arc Signal 5S 0.025dB Fiber Optic Splicing Machine
AI-8C Arc Signal 5S 0.025dB Fiber Optic Splicing Machine AI-8C Arc Signal 5S 0.025dB Fiber Optic Splicing Machine

Large Image :  AI-8C Arc Signal 5S 0.025dB Fiber Optic Splicing Machine

Product Details:
Place of Origin: Hubei, China
Brand Name: Signal Fire
Certification: CE, RoHS
Model Number: Ai-8C
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: carton & PVC packaging
Delivery Time: within 10 days of payment
Payment Terms: T/T, L/C
Supply Ability: 10000 Pieces/Month
Detailed Product Description
Splicing Time: 5S(AI-8C) Temperature: -15 ~ +50 ℃
Shrinkable Tube: 60mm, 40mm Size: 130mm*122*148
Focus Mode: Six Motors Auto Focus Heating Time: Auto Heating(Preheating)
High Light:

5S Fiber Optic Splicing Machine

,

0.025dB Fiber Optic Splicing Machine

,

Ai-8C

AI-8C Fusion Splicer Arc Signal Fire Optic Factory Six Motors



Description



Signal Fire AI-8C use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project,security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is

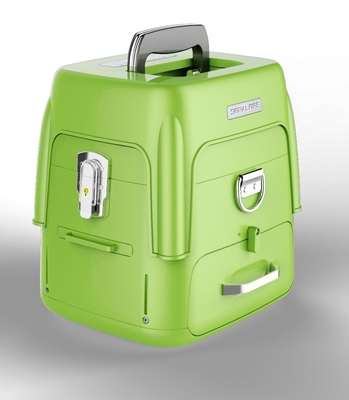

very easy to observe the fiber with naked eyes. 6 seconds speed core alignment splicing, 15 seconds heating,the working efficiency increased by 50% compared to ordinary splicing machines. Under the conditions of rigorous testing, the performance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design. The design of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction or repair. Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation. The core parts are using imported brands, aviation metal body material with exquisite details. With the combination of advanced technology and design, the new generation of optical fiber fusion splicer will bring you a reliable and comfortable user experience.



Features



1.5 inches high Resolution colorful LCD display, image can be turned according to position

2.Average splice time: 10 second

3.Average tube-heat time: 25 second

4.Automatic heat mode

5.Lithium battery: Rechargable and up to 200 times of continuous splice and heat after fully charged

6.X or Y axis Separately views with 360 times magnification, or Simultaneously 220 times

7.Cutting-edge technology for image processing

8.New technology of fiber core alignment, enhanced accuracy, PAS Technology

9.New developed technology providing strong wind and dust resistance

10.Automatic self-inspection: Display inspection, Forward inspection

11.Cleave length: 9~16mm (0.25mm) 10~16mm (0.9mm)

12.Splicing mode: Auto & Manual & Full-Auto

13.Storing 6,000 groups of latest splice results

14.New technology of fiber core alignment, enhanced accuracy

15.New 3-in-1 cutting fixture for rubber-insulated wire, pigtail & bare fiber (Patented technology)

16.New Multipurpose 1+N fixture (Patented technology)

17.1+N: one 3-in-1 fixture ( for rubber-insulated wire, fiber optic pigtail, bare fiber) & optional fixtures ( for SC/LC/FC connector).



Specifications



Fiber alignment Core/cladding alignment / Manual alignment
Splicing time 5S(AI-8C)
Heating time Automatic heating(Preheating)
Focus mode Six motors Auto focus
Applicable Fibers SM(G.652&G.657),MM(G.651)DS(G.657),NZDS(G.655)
Splice Loss 0.025dB(SM),0.01dB(MM), 0.04dB(DS/NZDS)
Control technology Real-time control and calibration of fusion ARC
Return loss Better than 60DB
Fiber diameter Cladding Diameter(80-150μm),Coating Diameter(100-1000μm)
Fiber Cleave Length Coating less than 250μm(8-16mm),Coating less than 250-1000μm(16mm)
Shrinkable tube 60mm,40mm
Size 130mm*122*148
Power supply Input AC100-240V 50 / 60HZ, output DC13.5V / 4A, the current




AI-8C Arc Signal 5S 0.025dB Fiber Optic Splicing Machine 0
