Product Details:
Payment & Shipping Terms:
|
| Model No.: | UNQ-6606 | Certificate: | Etisalat FTTX |
|---|---|---|---|
| Size: | 600*600*370 Mm | Brand: | Unique-Tel/ OEM |
| Material: | SPCC Cold Rolled Steel | Installation Type: | Wall Mount / Flush Mount |
| Color: | Black RAL9004 / Grey RAL7035 | Product Name: | 6U Wall-mount Network Cabinet |
| High Light: | wall mount server cabinet,telecom equipment cabinet |
||

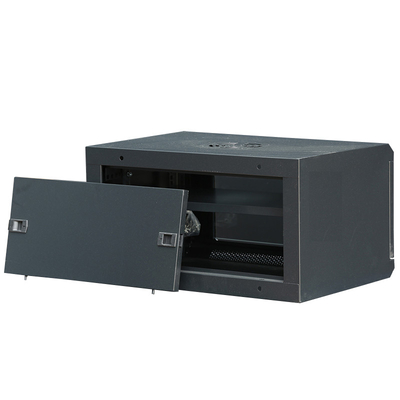

Easy Mounting Installation Welded Frame 6u Wall Mount Network Cabinet
Product Description
Keeps Important Equipment Secure
Top panel and reversible front door lock securely to help prevent damage, tampering or theft
Vented cabinet keeps equipment cool
Convenient ports with removable covers allow cable routing through top and bottom
Saves Valuable Workspace
Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way
Maximum load capacity of 150 lb.
Houses EIA-standard 19 in. rack equipment in 4U of space
Low-profile vertical-mount cabinet extends only 8 in. from the wall while housing equipment up to 20 in. deep, including network switches and patch panels
Also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5 in. deep
Easy Enclosure and Equipment Installation
Ships fully assembled for quick installation
Wall-mounting holes spaced 16 in. apart for standard wall stud placement
Rails adjust easily—unscrew them, slide them to desired depth, and screw them back in
Threaded mounting holes support M6 or 12-24 mounting
Rack spaces marked for easy reference
Features:
A).19"standard installation welded frame, reliable structure.
B).Assembled frame structure, Easy handling, transportation, to maximize save shipping cost.
C). Standing or wall mounting installation, adjustable feet and castor are optional.
D). Easy mounting installation (patent).
E). Removable side panels, side locks optional.
F). Knock out hole for entering cable on both of top cover and bottom panel.
G). Toughened glass front door, turning angle is over 180 degrees.
Main parts:
A). SPCC cold rolled steel
B). Thickness: mounting profile 1.5mm. mounting angle 1.5mm, others1.2mm.
Specification
| Width(mm) | Depth(mm) | Height(mm) | Capacity(U) |
| 530 | 350 | 280 | 4 |
| 600 | 450 | 280 | 4 |
| 600 | 450 | 370 | 6 |
| 600 | 600 | 370 | 6 |
| 600 | 450 | 500 | 9 |
| 600 | 600 | 500 | 9 |
| 600 | 450 | 635 | 12 |
| 600 | 600 | 635 | 12 |
| 600 | 450 | 770 | 15 |
| 600 | 600 | 770 | 15 |
| 600 | 450 | 900 | 18 |
| 600 | 600 | 900 | 18 |
| Product Name: | 6U Wall-mount network cabinet |
| Brand: | Unique-Tel/ OEM |
| Model No.: | UNQ-6606 |
| Material: | SPCC cold rolled steel |
| Color: | Black RAL9004 / Grey RAL7035 |
| Size: | 600*600*370 mm |
| Degree of Protection: | IP20 |
| Certificate: | Etisalat FTTX |
| Installation Type: | Wall Mount / Flush Mount |
| Surface Finish: | Degreasing, pickling, phosphoric, powder coated |
| MOQ: | 1 piece |
| Static Loading Capacity: | 60KG |
