Product Details:
Payment & Shipping Terms:
|
| Model Number: | ZXD800E | AC Current: | 5A Max |
|---|---|---|---|
| DC Voltage: | 48V | DC Current: | 15A |
| Power Factor: | >0.99 | Weight: | 2.5Kg |
| Input: | ~130-300V; 50/60Hz | Dimension: | 156mm*73mm*304mm |
| Highlight: | telecommunication network equipment,network communication equipment |
||

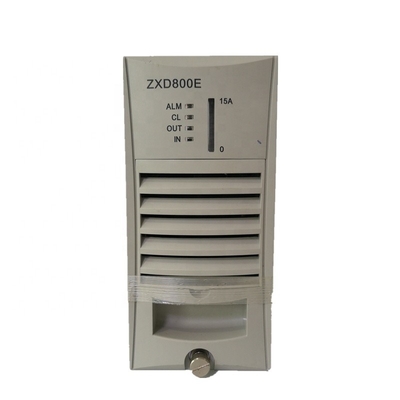

48V 15A Rectifier Module ZTE ZXD800E Switch Mode Power Supply Equipment
Brief
ZTE ZXD800E 15A rectifier is designed and made by ZTE company, with 48V 15A output, light and small size.
ZXB800E is designed according to international standard, aiming to small and middle telecom power system, provide power to small size Networking communication equipment, Micro product, data product and other telecom equipment.
15A output ZTE ZXD800E rectifier Features:
1. Wide input voltage range: From 90V-290Vac
2. Plug-in type, easy and fast respond
3. Small Size, light weight
4. High power density 540mW/CM3
ZXD800E ZTE Rectifier input parameters
Input Voltage: 220V (130-300Vac)
Input Current: 5A
Rectifier Module ZXD800E operation Condition:
Working Temp.: -5-145C
Storage Temp.: -40 -170C
Weight: 2.5kg
Size: 304 x 156 x 73 mm
Ordering Information
48V 15A Rectifier module ZTE ZXD800E
Part No.: ZTE ZXD800E
