| Certification: | CE, FCC, RoHS | Standard: | 1000Base-FX |
|---|---|---|---|
| Connector: | SC/ST/FC | Storage Temp: | -20~70℃ |
| Dimension: | 70.6x26x94mm | Indicator: | Port & Power Indicator |
| High Light: | 2 port Fiber Cable Accessories,1000m Gigabit Ethernet Media Converter |
||

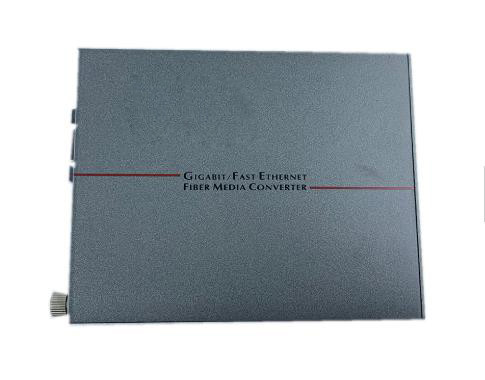

2-port 1000M Optical Transceiver Gigabit Ethernet Media Converter
Decription
2-port Gigabit media converter. It can convert Ethernet electrical signal into Ethernet optical signal to extend the transmission distance. It also has good isolation protection and data confidentiality. This series include three types of products with different mains input methods and provide Gigabit copper port, Gigabit fiber port. It adopts DIN-Rail or wall mounting to meet the requirements of different application scenes.
This series of products conform to CE, FCC certification standards. Hardware adopts fanless, low power consumption, wide temperature and voltage design, which can suit for the scene environment with harsh requirements. It can be widely used in various fields.
Features
Support 1 Gigabit fiber port, 1 Gigabit copper port
Support built-in power supply 220VAC, 48VDC, external power supply 5VDC
Support -10~60℃ wide operating temperature range
Specifications
|
Power Requirement |
Support three kinds of mains input methods lExternal 5VDC, DC round head lBuilt-in 220VAC, AC socket with switch lBuilt-in 48VDC, 3-pin 5.08mm pitch terminal blocks |
|
Power Consumption |
4W |
|
Environmental Limit |
Operating temperature: -10~60℃ Storage temperature: -20~70℃ Relative humidity: 5%～95%(no condensation) |
| Physical Characteristic |
Housing: metal Installation: wall or DIN-Rail mounting Dimension (W x H x D): 70.6mm×26mm×94mm (external power supply) 115mm×30mm×173.2mm (built-in power supply) |
| Certification | CE, FCC, RoHS |
| Warranty | 3 years |
|
Standard & Protocol |
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X |
| Copper Port | 10/100/1000Base-T(X), RJ45, automatic flow control, full/half duplex mode, MDI/MDI-X autotunning |
| Fiber Port |
Standard: 1000Base-FX Connection mode: SC/ST/FC optional
Transmission distance: lMultimode: 500m/2km lSingle mode: 10/20/40/60/80km
Fiber cable: lMultimode: 50/125μm or 62.5/125μm lSingle mode: 8.3/125μm, 8.7/125μm, 9/125μm or 10/125μm
Transmission wavelength: lMultimode: 850nm/1310nm lSingle mode: 1310nm/1550nm |
| LED Indicator | Port indicator, power supply indicator |
