Fujikura 12R Light Portable Fusion Splicer
Overview
The Fujikura 12R is the world’s smallest, lightest and most portable fusion splicer available today . Despite its incredibly small size, this ruggedized, full-featured unit offers unmatched versatility for splicing in the most challenging environments . The innovative transit case and work tray provide multiple options for the best utilization of available work space while the long life battery provides power for up to 100 splice cycles which include application of the splice protection sleeve .
The Fujikura 12R incorporates features typically found only in more expensive models .
The large 4 .5" monitor provides a crystal clear image, even in the brightest sunlight, for evaluating splice quality . The electrode life has been extended to 1,500 splices, minimizing downtime for replacement and stabilization . Software updates are accomplished via the internet allowing users to quickly update their software as new splice programs become available . The fully ruggedized chassis provides for shock, dust and moisture protection while the two camera observation system provides for accurate fiber alignment and loss estimation calculations. The Fujikura 12R is also fully compatible with the FuseConnect line of fusion installable connectors .
Backed by the best service team in the industry, the Fujikura 12R is the ideal splicer to use when portability, ruggedness, versatility and reliability are needed for your splicing application.

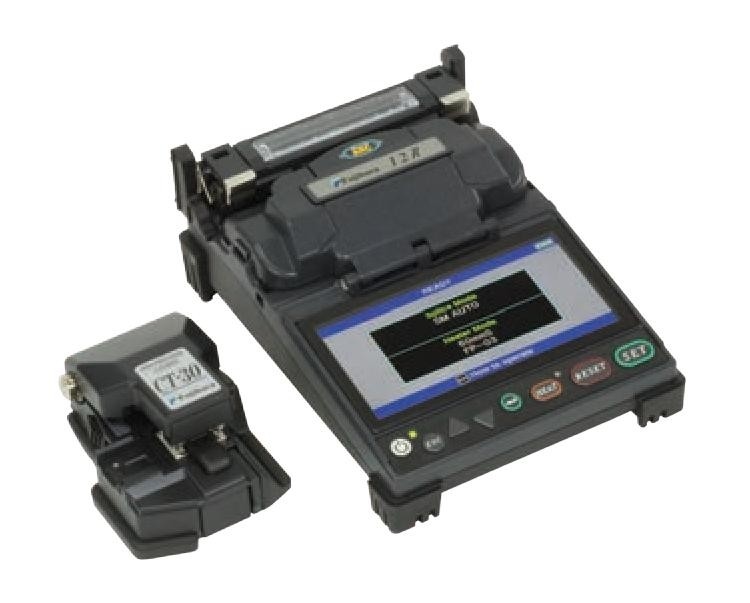

Fujikura 12R Kit
Features
World’s smallest splicer at 4 .76"W x 6 .38"D x 2 .24"H
Fully ruggedized for shock, moisture and dust resistance
Transit case converts to easy to use workstation
Dual camera, fixed v-groove alignment technology
Extended life electrodes
Long life battery (100 splices/shrinks per charge)
Ordering Information
| DESCRIPTION | AFL NO. |
|
Fujikura 12R Fusion Splicer Includes: ADC-19 AC Adapter, BTR-10 Battery Pack (installed), FH-50-4 Fiber Holders (Pair), ACC-09 Power Cord, ELCT2-12 Spare Electrodes (Pair), Operation Manual on CD, Quick Reference Guide, AP-01 Alcohol Container, SD01 Screwdriver and CC-29 Transit Case |
S015571 |
|
Fujikura 12R Fusion Splicer Kit Includes: CT-30 Cleaver, ADC-19 AC Adapter, BTR-10 Battery Pack (installed), FH-50-4 Fiber Holders (Pair) FH-50-250 Fiber Holders (Pair), FH-50-900 Fiber Holders (Pair), ACC-09 Power Cord, HJS-03 Hot Jacket Stripper, ELCT2-12 Spare Electrodes (Pair), Operation Manual on CD, Quick Reference Guide, AP-01 Alcohol Container, SD01 Screwdriver and CC-29 Transit Case |
S015667 |
Specifacation
| PARAMETER | VALUE |
| Model | Fujikura 12R Fusion Splicer |
| Applicable Fibers | Single-mode (G .652 & G .657), Multimode (G .651), DS (G .653), NZDS (G .655) |
| Fiber Count | Single to 4-fiber ribbon |
| Cladding Diameter | 125 μm |
| Coating Diameter | 250 μm and 900 μm |
| Fiber Cleave Length | 10 mm |
| Typical Average Splice Loss | 0 .05 dB (SM), 0 .02 dB (MM), 0 .08 dB (DS) and 0 .08 dB (NZDS) |
| Splice Time | Typical 20 sec with SM |
| Arc Calibration Method | Automatic, real-time by using results of previous splice when in AUTO mode, manual arc calibration function available |
| Splicing Modes | Total 100 splice modes |
| Splice Loss Estimate | Based upon dual camera cladding alignment data |
| Storage of Splice Result | Last 2,000 splices |
| Fiber Display | 4 .5 inch TFT color LCD with X or Y view or both X and Y view simultaneously |
| Magnification | 66X magnification in X or Y view; 33X magnification in X and Y view |
| Viewing Method | 2 axis CMOS camera |
| Operating Condition | 0 to 3,660 m above sea level (single fiber),0 to 95% RH non-dew, -10 to 50°C respectively |
| Mechanical Proof Test | 1 .96 to 2 .25 N |
| Tube Heater | 30 heating modes |
| Tube Heater Time | Typical 30 sec with FP-03 (60 mm) and FP-04 sleeves |
| Protection Sleeve Length | 60 mm, 40 mm, micro |
| Splice/Heat with Battery | Typical 100 cycles with BTR-10 |
| Electrode Life | 1,500 splices |
| Power Supply | Auto select from 100V to 240V with AC adapter, 14 .8 V DC with installed battery |
| Terminals | USB 2 .0 |
| Wind Protection | Maximum wind velocity of 15 m/s . (34 mph) |
| Dimensions | 121W x 162D x 57H (mm) / 4 .76 W x 6 .38 D x 2 .24 H (inches) |
| Weight with Battery | 776 g / 1 .71 lbs . |
