| Operating Temp: | 0~50℃ | Storage Temp: | -10~70℃ |
|---|---|---|---|
| Plug: | Hot-plugging | Installation: | 2U Rack Mounting |
| Input Voltage: | 100-260VAC,50-60Hz | Output Voltage: | 5VDC |
| High Light: | Flow Control Media Converter Rack,2U Media Converter Rack |
||

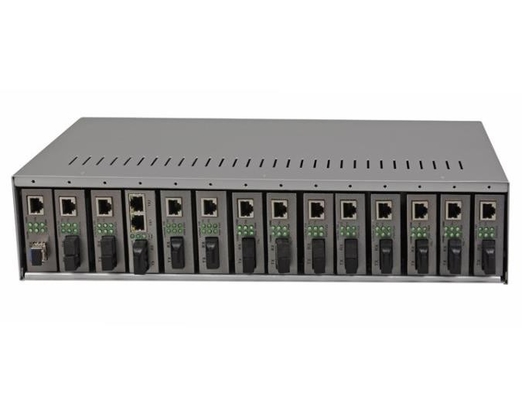

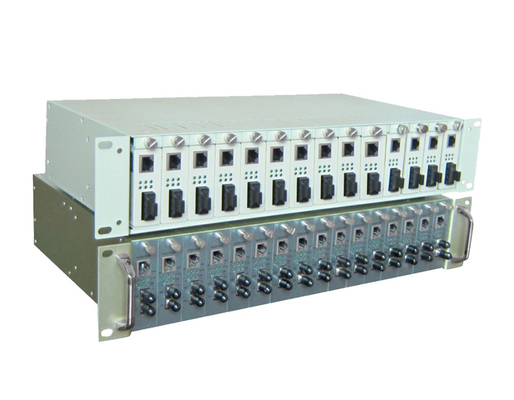

14 16 Slot Card Desktop Automatic Flow Control Media Converter Rack dual power supply
Features
Support 14/16 slots, allows centralized management of various media converter daughter cards
Support hot-plugging of media converter
Support dual power supply, input voltage: 100~260VAC
Support 0～50℃ wide operating temperature range
Specifications
|
Standard & Protocol |
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3x for Flow Control |
| Management | SNMP v1/v2, HTTP, FTP, TELENT |
| Interface |
Copper port: 10/100Base-T(X) or 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning Fiber port:: 100Base-FX or 1000Base-FX, SC/ST/FC optional Console port: CLI command line management port(RS-232), RJ45 |
| LED Indicator | Running Indicator, Port Indicator, Power Supply Indicator, LFP Indicator, Duplex Mode Indicator |
|
Power Requirement |
Input voltage: 100~260VAC, 50~60Hz Output voltage: 5VDC Single or dual power supply |
|
Power Consumption |
Full-load: ＜60W |
|
Environmental Limit |
Operating temperature: 0~50℃ Storage temperature: -10~70℃ Relative humidity: 5%～95%(no condensation) |
| Physical Characteristic |
Housing: metal Installation: 2U rack mounting Dimension (W x H x D): lRACK2000A: 488mm×90mm×231mm lRACK2000B: 483.4mm×90.5mm×291.2mm lRACK2000C: 487mm×90mm×317mm |
| Certification | CE, FCC, RoHS |
| Warranty | 3 years |
Description
14/16-slot card/desktop media converter racks. They could be inserted in up to 14/16 media converter devices and power them uniformly, thus reducing cables which is convenient for management and maintenance. This series have three types of product which can be matched with various media converters. They provide 100M copper port, 100M fiber port, gigabit copper port and gigabit fiber port and adopt 2U rack mounting, which can meet the requirements of different scenes.
14/16-Slot Card/Desktop Media Converter Rack series media converter racks adopt dual power supply which could reduce the load of power supply and extend its service life. When one power supply fails, the other one could work independently, ensuring that converter could operate without interruption. When the power supply needs to be repaired or replaced, you don’t need to pull out the media converters or dismount this rack from equipment cabinet. All you need to do is to pull out the faulty power supply from the back of the rack and repair it or replace it, making maintenance extremely convenient and quick. The power supply has been fully shielded to prevent the electromagnetic signals it generated from interfering with the normal operation of modules. The switch power supply offers over-voltage and over-current protection. The output ripple and noise of power supply is less than 50mV.
