Product Details:
Payment & Shipping Terms:
|
| Data Rate: | 10G | Wavelength: | 1270/1330 Nm |
|---|---|---|---|
| Distance: | 80KM | Connector: | Single LC |
| DOM/DDM: | YES | CE RoHS: | Compliant |
| Min. Optical Budget: | 23dB | Product Name: | 10G SFP+ Tx1270/Rx1330nm 80km |
| High Light: | 80km Single LC Optic Fiber Module,1330nm Optic Fiber Module,1270nm Optical Transceiver Module |
||

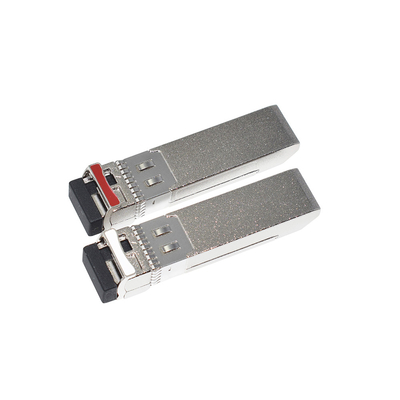

Sfp+ 10g 1270/1330nm Wdm Bidi 80km Lc Dom Tuv Ce Fda Rosh Certification Optic Module
Overview
| Type | Fiber Optic Transceivers |
| No. of Fiber | 1. |
| Use | FTTX |
| Product name | 10G SFP+ Tx1270/Rx1330nm 80km |
| Wavelength | 1270/1330 nm |
| Data Rate | 10G |
| Distance | 80KM |
| Connector | Single LC |
| Minimum Optical Budget | 23dB |
| DOM/DDM | YES |
| CE RoHS | Compliant |
| Warranty | 3 years |
| 10G SFP+ BiDi | |||||
| Part Number | Data Rate | Wavelenth | Distance | Temp. | Source |
| HLSB231XL-CD10 | 10G | 1270/1330nm | 10km | 0~70 | DFB+PIN |
| HLSB231XL-CD20 | 10G | 1270/1330nm | 20km | 0~70 | DFB+PIN |
| HLSB231XL-CD40 | 10G | 1270/1330nm | 40km | 0~70 | DFB+PIN |
| HLSB231XL-CD60 | 10G | 1270/1330nm | 60km | 0~70 | DFB+APD |
| HLSB231XL-CD80 | 10G | 1490/1550nm | 80km | 0~70 | EML+ADP |
SFP-10G-BX80 Bi-directional 10Gb/s (SFP+) transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. They comply with 10GBASE-LR/LW Ethernet, SONET OC-192 / SDH and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+ MSA.
Features
• Supports 9.95Gb/s to 11.3Gb/s bit rates
• Hot-pluggable SFP+ footprint
• Single LC for Bi-directional Transmission
• Maximum link length of 80km
• Built-in 1270/1330 WDM Filter
• Uncooled 1270nm or 1330nm CWDM DFB Laser
• Power dissipation <1.5W
• No Reference Clock required
• Built-in digital diagnostic functions, including optical power monitoring
• Temperature range 0°C to 70°C
• Very low EMI and excellent ESD protection
• RoHS Compliant Part
Applications
• 10GBASE-LR/LW Ethernet
• SONET OC-192 / SDH
• 10G Fiber Channe
